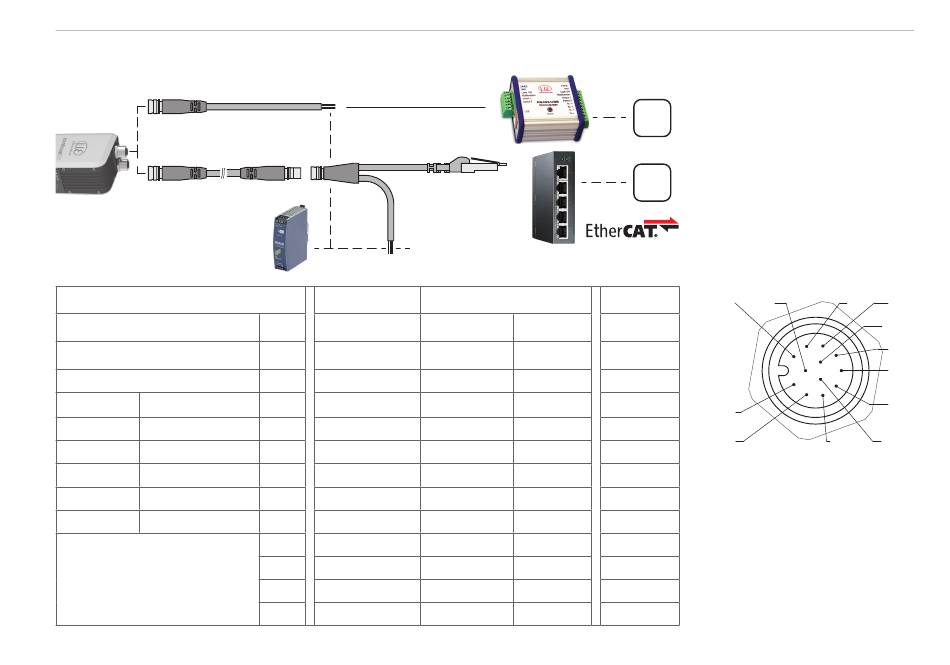

Electrical Connections - MICRO-EPSILON confocalDT 2410 EtherCAT Quick Manual

Mechanical Fastening

Electrical Connections

PC2415-x/OE
PC2415-x
12-pin connector sensor
Signal
V
+
Supply GND
Data Rx+ Encoder 2A+
Data Rx- Encoder 2A-
Data Tx+ Encoder 2B+
Data Tx- Encoder 2B+
SYNC+ Encoder 2Ref+
SYNC- Encoder 2Ref-
Industrial Ethernet
confocalDT 2410/2415
PC2415-1/Y
RS422 / Encoder
Synchronization /
PS 2020 Ref. Encoder
PC2415-x/OE
Pin Wire color
1 Red
2 Blue
3 Brown
1
4 White
5 Green
6 Yellow
7 Gray
8 Pink
9 White/Green
10 Green
11 White/Orange
12 Orange
IF2001/USB
Switch / PC / Ethernet
PC2415-1/Y
Wire color RJ45, Pin
Red ---
Blue ---
Brown ---
White ---
Green ---
Yellow ---
Gray ---
Pink ---
--- 3
--- 6
--- 1
--- 2
The PC2415-1/Y cable is
included in delivery.
PC
Characteristics PC2415-1/Y:
- Power supply
- Ethernet
SPS
- RS422 and synchroniza-
tion or encoder
Other cables are available as
optional accessory.
IF2001
1 10
Signal
24VDC
GND
Tx+
2
Tx-
3
Rx+
12-pin sensor connector,
Rx-
pin side
---
---
1) You can use the pins for
--- - serial communication TIA/
EIA-422-B) and synchroni-
---
zation or
---
- for encoder signals.
---
9 8
12
7
6
5
4 11
Page 7
