Configure IO-Link devices

To configure the IO-Link devices connected to the device with the LR DEVICE parameter setting
software:
Requirements:
> IO-Link master is correctly installed and connected to the LR DEVICE parameter setting software.
> The IO-Link device is correctly connected to the AL1102.
> Operating mode of the IO-Link port is "IO-Link" (→
(→ S. 29)).
> IoT has write access rights to the IO-Link master (→
1 Select IO-Link master
► Start LR DEVICE.
► Update IODD file library
OR:
Import IODD file of the IO-Link device manually.
► Scan network for devices.
> LR DEVICE detects IO-Link master.
2 Add IO-Link device

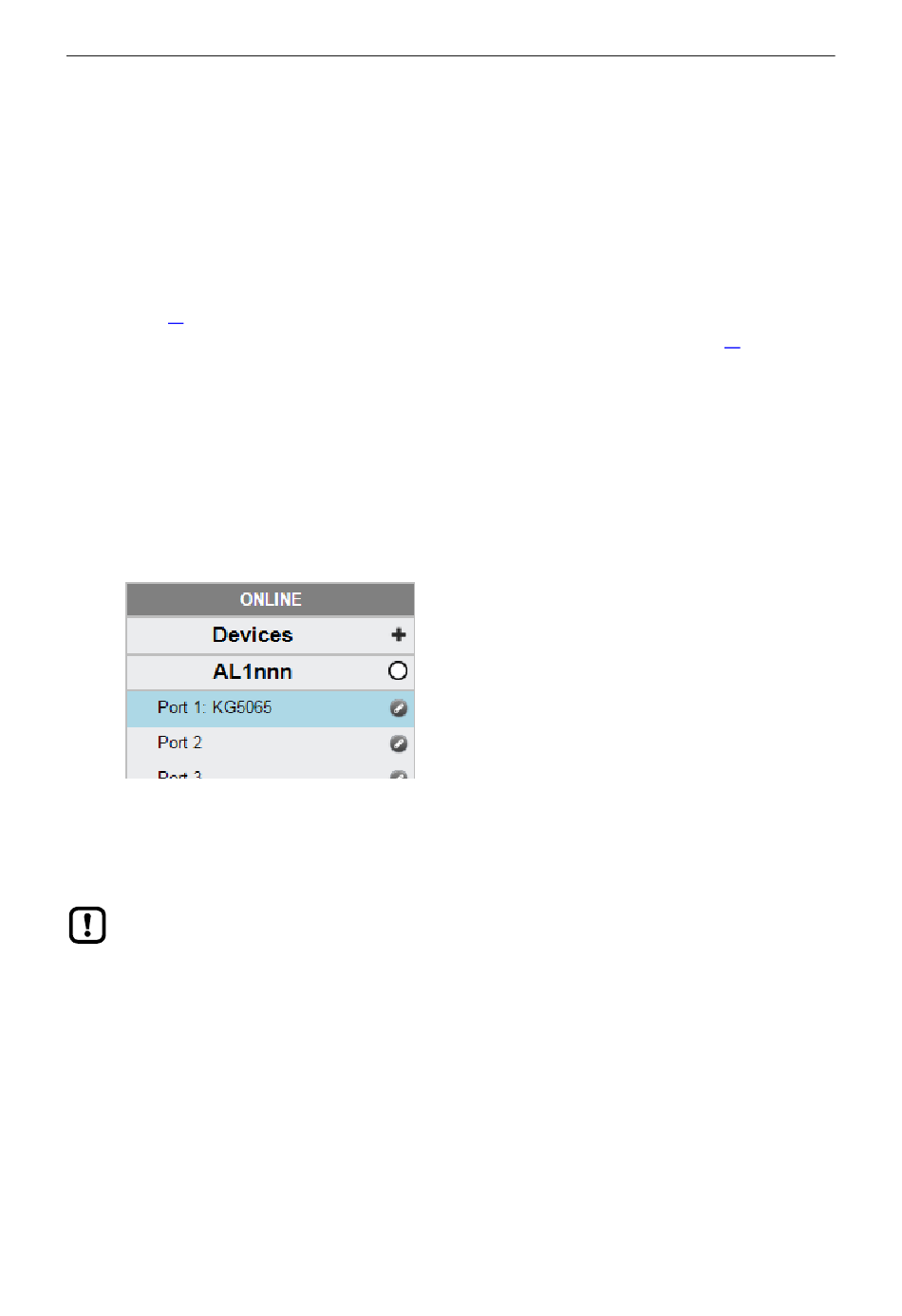

► Under [ONLINE]: Click on the required IO-Link master.
> LR DEVICE automatically detects the IO-Link devices connected to the IO-Link master (e.g. ifm sensor KG5065).
3 Configure IO-Link device
► Mouse click on the port to which the IO-Link device is connected.
> LR DEVICE reads and shows the current parameter values of the IO-Link device.
► Configure IO-Link device.
Information about the available parameters of the IO-Link device: → IO Device Description
(IODD) of the IO-Link device
► Save the changed configuration on the IO-Link device.
32
IO-Link ports: Configure operating mode
IoT: Configure access rights
33856
(→ S. 26)).
