6.2

Ethernet ports

14

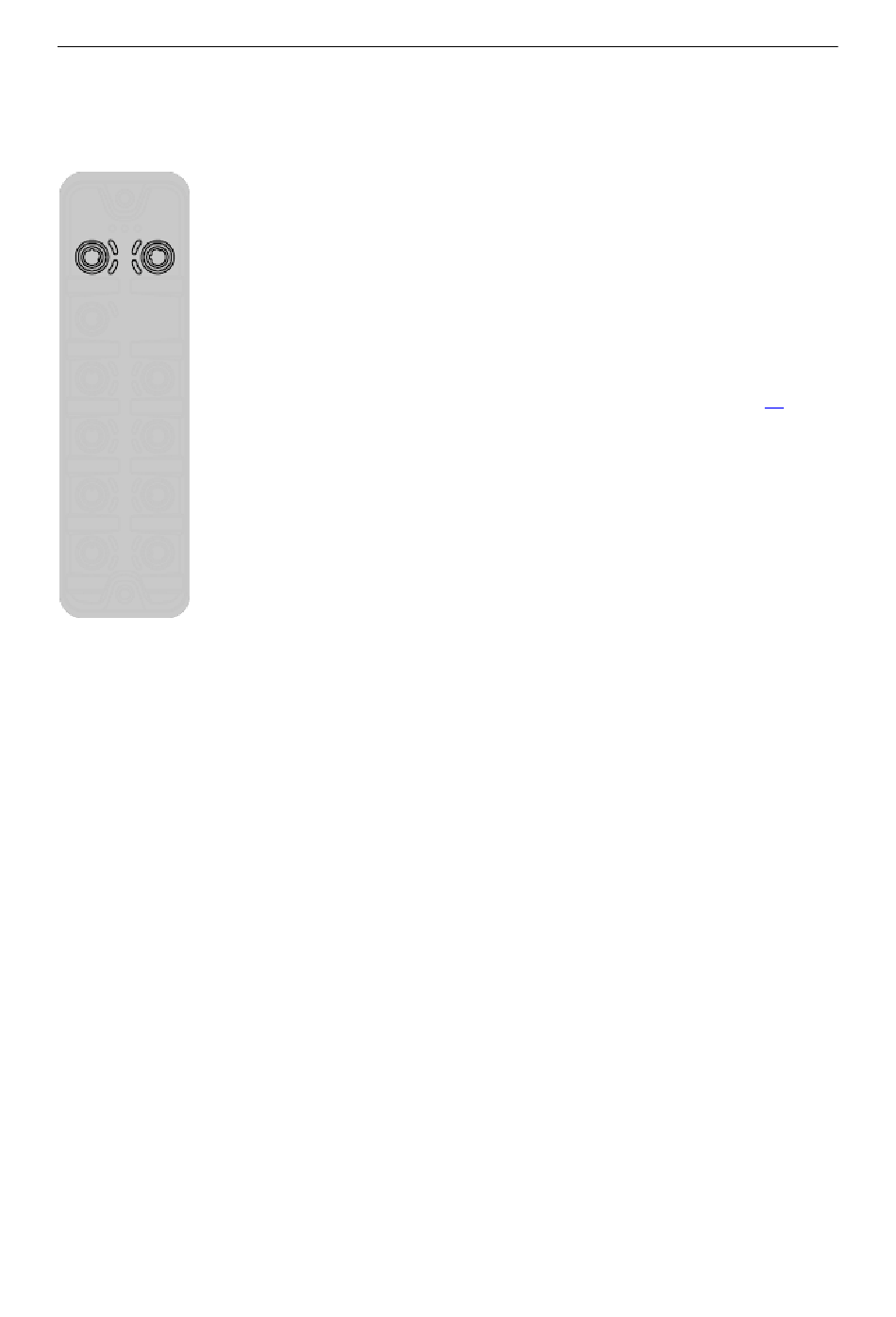

► Connect the unit via the M12 socket X21 and/or X22 with the
PROFINET network (e.g. PROFINET PLC, additional
PROFINET device)

Tightening torque: 0.6...0.8 Nm
► Connect the unit via the M12 socket X21 and/or X22 to the
industrial Ethernet network (e.g. laptop/PC with installed
parameter setting software LR DEVICE, laptop/PC with
installed monitoring software LR SMARTOBSERVER)

Tightening torque: 0.6...0.8 Nm
► For the connection, use M12 connectors with protection rating
IP 65 / IP 66 / IP 67 or higher (→
► Cover the unused sockets with M12 protective caps (art no.
E73004).

Tightening torque 0.6...0.8 Nm
Accessories (→ S. 44)).
