The six possible objects PPO1 to PPO4 and PKW, PZD are visible under the menu item
ACTIVE-DPV1. The required object is now assigned to the inverter by Drag & Drop.

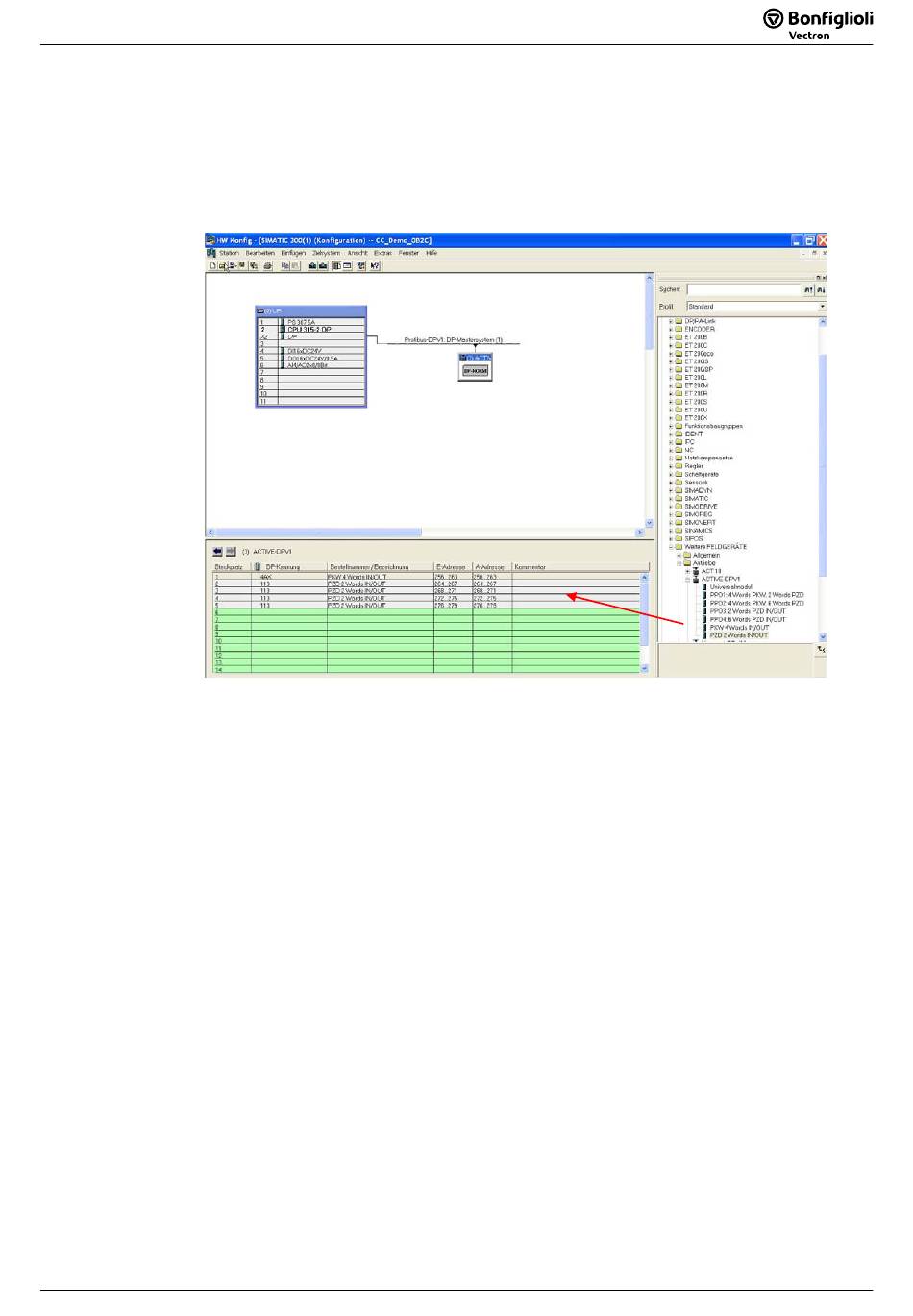

The screen shot from the STEP7 hardware configuration shows a frequency inverter
with station address 3 and a custom-specific configuration.
The above configuration setting is:
1 PKW object
4 PZD objects
Note:
Restrictions for user defined configuration settings:
Note:
08/08
08/08
8 bytes or 4 words, communication object (input/output)
16 bytes or 8 words, process data objects (input/output)
• The data direction IN/input and OUT/output is from the master's point of
view.
• Every single configured PZD object results in two word (4 byte) objects PZDn
PZDn+1 for both input and output.
• The CM-PDPV1 offers four predefined objects (PPO1...4) to be compatible to
the former CM-PDP and two additional objects PKW (communication channel)
and PZD (process data) for application specific configurations.
The PKW object is allowed only once as the first object.
•
• As a minimum one PZD object must be configured.
The resulting number of all objects must be less than or equal to 36 bytes (18
•
words).
A restriction violation results in a configuration error message from the PLC
on the Profibus start up cycle. Also the Operation Mode Led on the CM-
PDPV1 flashes red (2 flashes).
