Socket Connection/Bus Termination/Line - BONFIGLIOLI Vectron ACTIVE CUBE Manual

4
The bus termination necessary on the bus line in the physically first and last subscrib-
er can be activated via corresponding circuits in the bus connection sockets (e.g. built
by Siemens).
Attention! The device(s) will only communicate with the master if
housing screen
Only admissible types are to be used for the bus socket. They must all be suited for
the 12 MBaud transmission rate.
This is, for example, type Profibus connector 12 MBAUD (6ES7 972-0BA11-0XA0)
from Siemens.
Only admissible types are to be used as a line for the Profibus (line type A).
This is, for example, type UNITRONIC-BUS L2/F.I.P. 1x2x0,64 from Lappkabel.
Attention! The line screen is to be connected to ground (PE) on both sides with
08/08
08/08

Socket connection/bus termination/line

− The master is connected to the mains (or powered by DC 24V)
− The unit is connected to the mains (or powered by DC 24V)
− The first and the last subscriber on the connected branch have a
correctly set bus termination
− All other devices in between have no bus termination or a deactivated
bus termination.
Pin Name
connected with PE
1 PE PE
2 not used -
3 RxD/TxD-P positive signal RxD/TxD-P, corresponding to RS485 B-Line
4 CNTR-P control signal for repeater
5 DGND isolated ground for bus connection
6 VP isolated 5V for bus connection
7 not used -
8 RxD/TxD-N negative signal RxD/TxD-N, corresponding to RS485 A-Line
9 not used -
good conductivity.

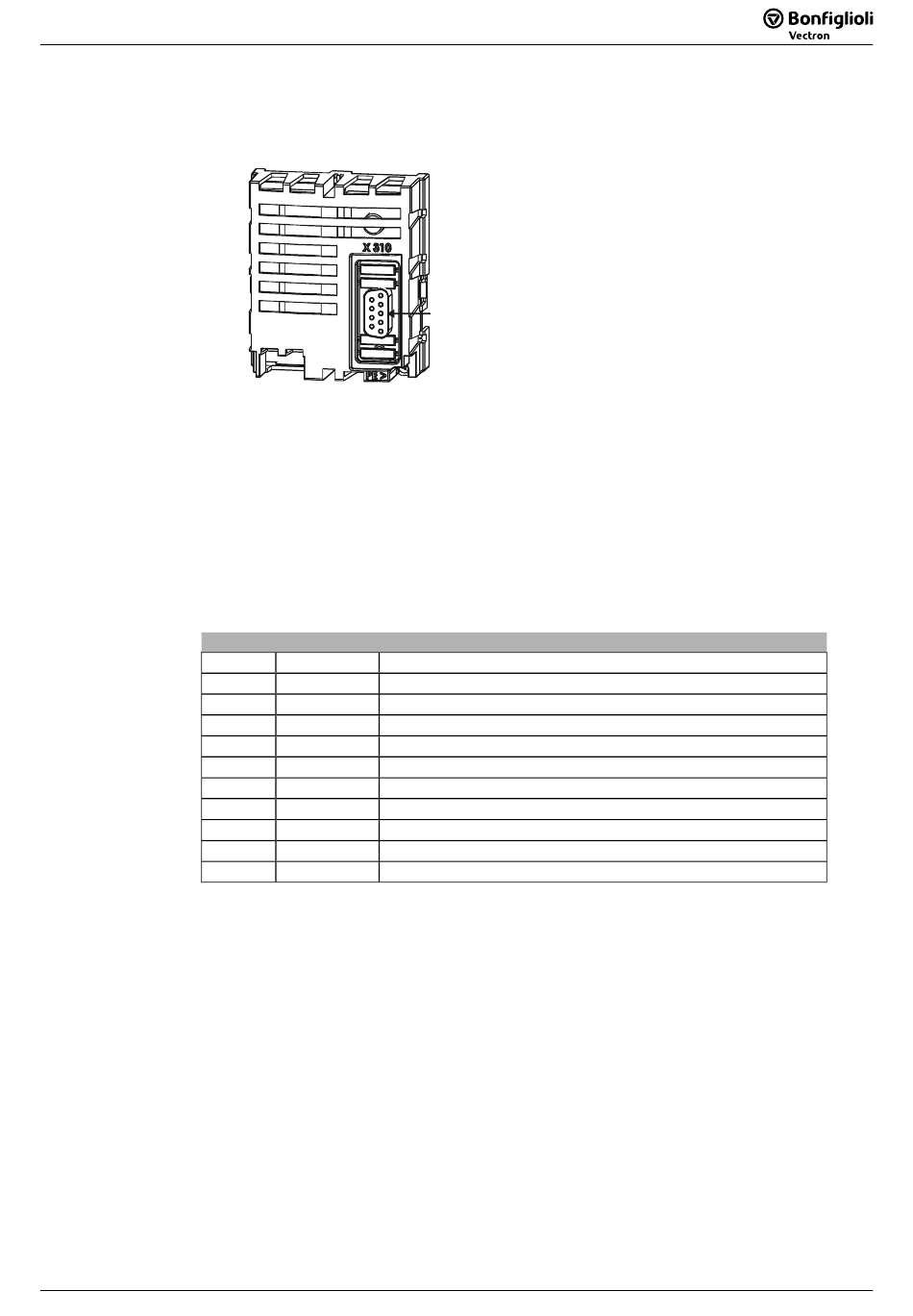

CM-PDPV1
The bus socket X310 (9-pole Sub-D) is con-
nected according to the Profibus DP standard
EN50170.
Please take the details for the pin allocation
of the bus plug from the following table.
X310
Bus plug X310
Function
CM-PDPV1
