Led Indicators - BONFIGLIOLI Vectron ACTIVE CUBE Manual

7

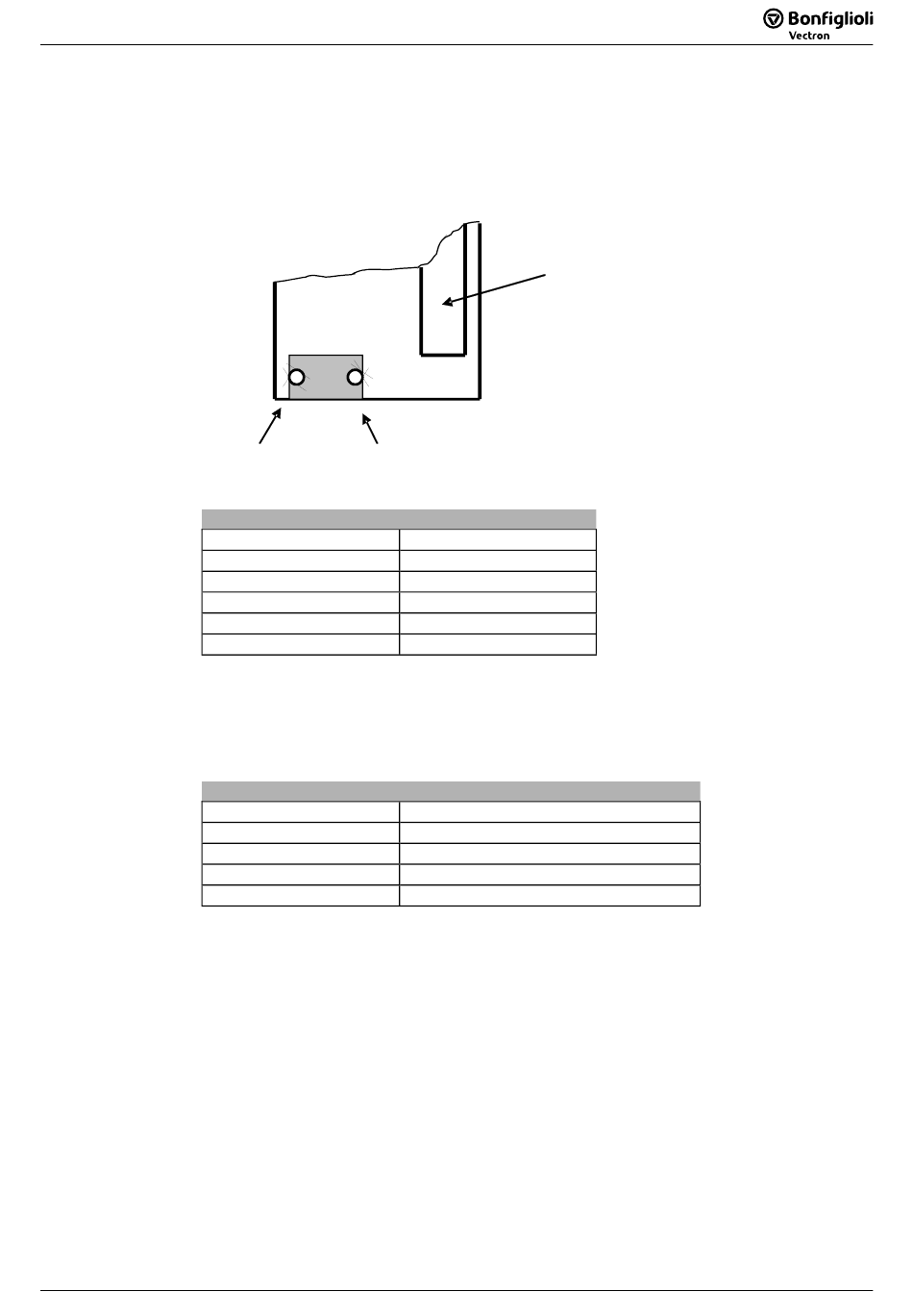

The communication module has two bicolor LEDs which display the module status and
the (Profibus) operation mode.
Off
Green
Flashing Green
Flashing Red (1 flash)
Flashing Red (2 flashes)
(*) configuration error
The configuration error indicates an incorrect configuration of the data exchange ob-
ject. See chapter "Configuration process on the DP master".
Off
Green
Flashing Green
Red
(*) diagnostic event
When the inverter enters the error state a diagnostic event is sent from the inverter
controller to the CM-PDPV1. The CM-PDPV1 then sends a diagnostic message to the
Profibus master. The Profibus master device is then able to display the inverter error.
The LED stops flashing after the acknowledgement of the inverter error.
Note:
(**) exception error
An exception error indicates a fatal error on the CM-PDPV1 or communication loss
between CM-PDPV1 and inverter controller. Check the inverter error message (with
KP500 or KP232 and VPlus).
08/08
08/08

LED indicators

Operation Status
mode
Operation Mode
state
state
Diagnostic events are handled by a S7-CPU with OB82/OB86. If these objects
are NOT loaded the CPU enters the STOP state in the case of a diagnostic
event.
CM-PDPV1
X310
indication
not online/no power
online, data exchange
online clear
parameterisation error
configuration error (*)
Status
indication
not initialised/no power
initialised
initialised, diagnostic event present (*)
exception error (**)
CM-PDPV1
