How to Install

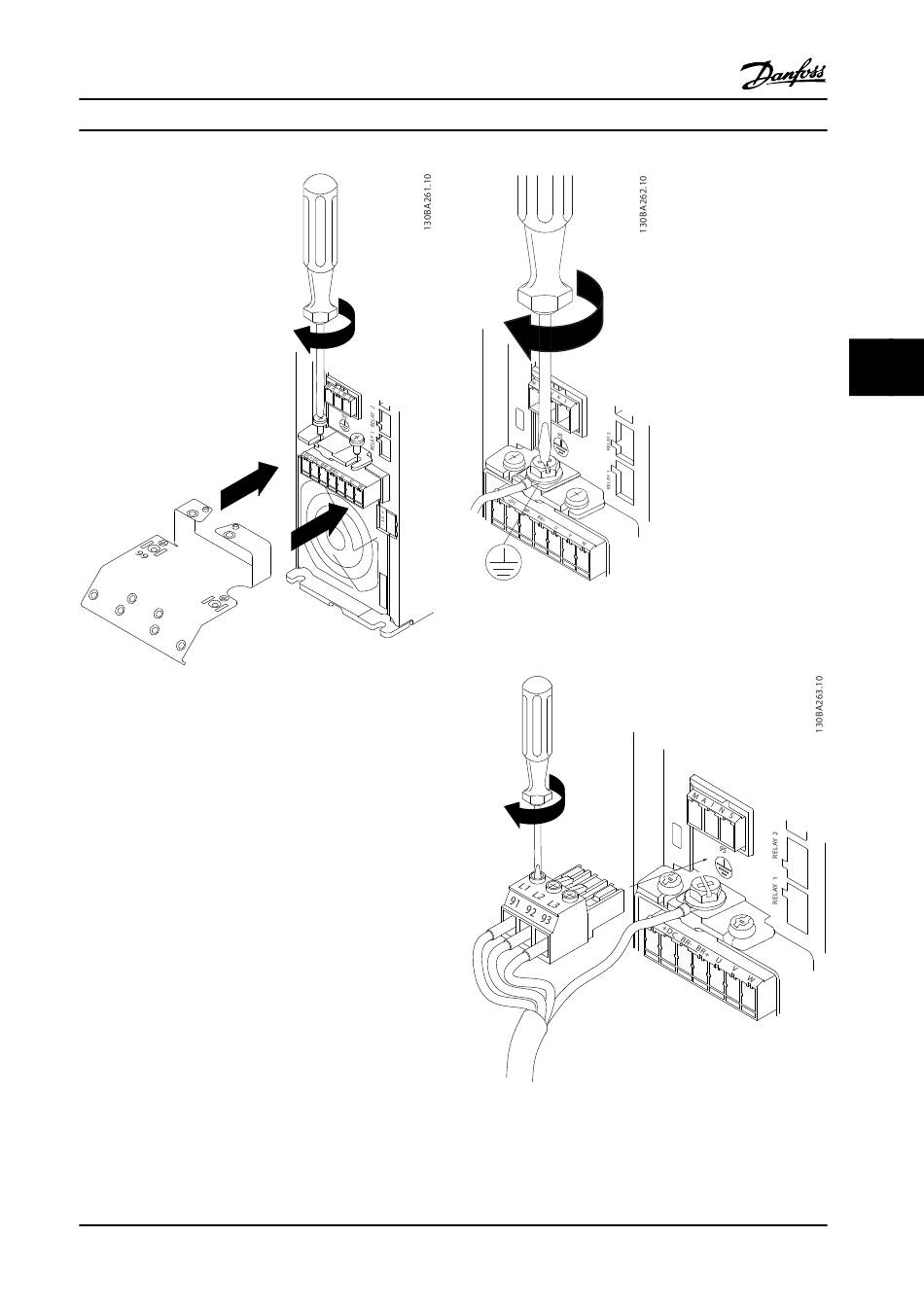

Figure 5.7 Mount the two screws in the mounting plate, slide
it into place and tighten fully
MG18C522
Design Guide
Figure 5.8 When mounting cables, first mount and tighten
ground cable.
Figure 5.9 Mount line power plug and tighten wires
