2.4.6.3 HSG80 Array Controller Configuration Examples
(Figures 2-26 through 2-33)
Figure 2–26 shows the cable connections between dual FC hubs and dual array
controllers. The cables to the hubs can connect into any open connector. Unused
connections need no termination.

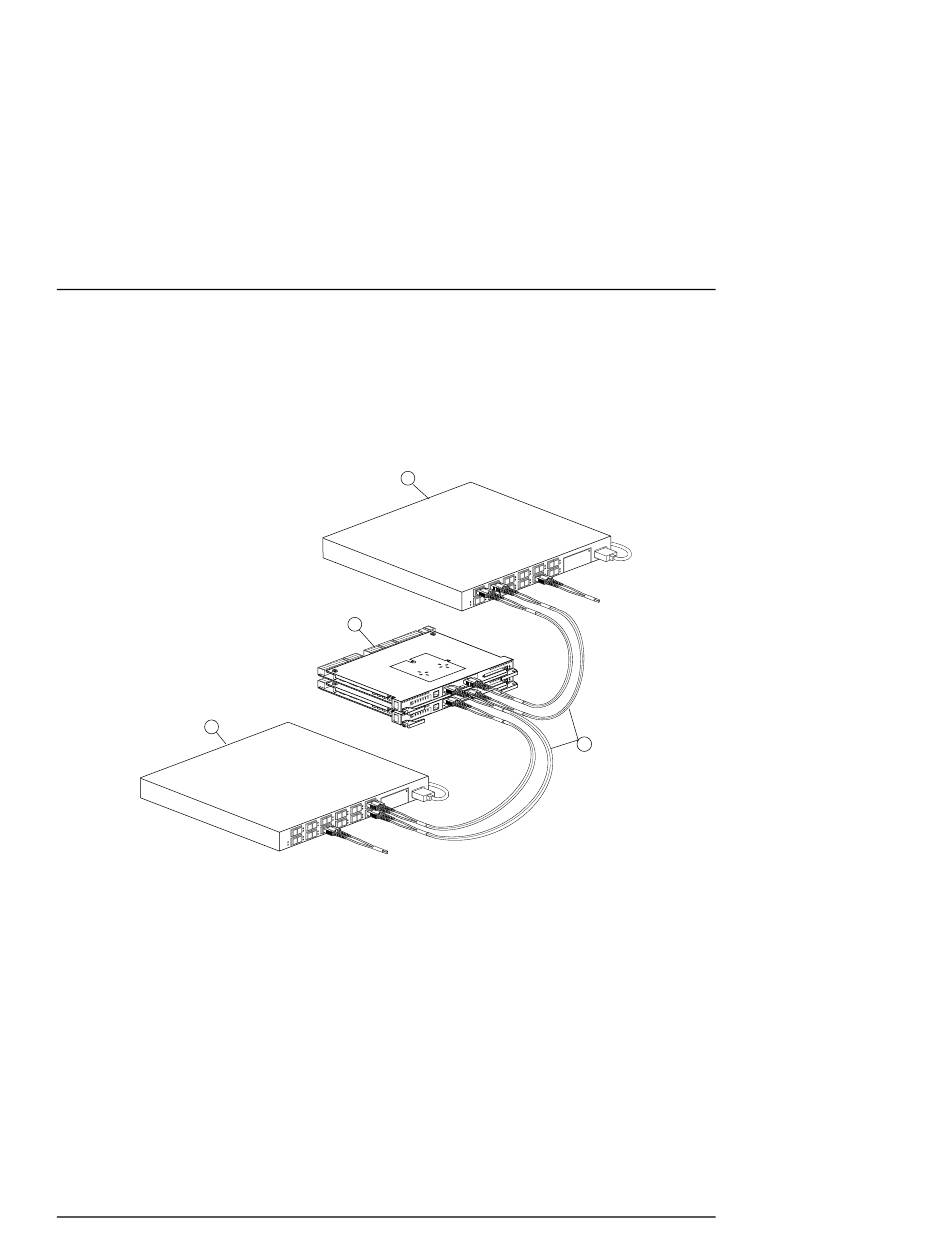

Figure 2–26 Dual Controller, Dual Hub Configuration
2
1
HSG80 controllers
2
Fibre Channel Arbitrated Loop Hub
3
Multi-mode Fiber Optic Cable
