RA8000 and ESA12000 Storage Subsystems

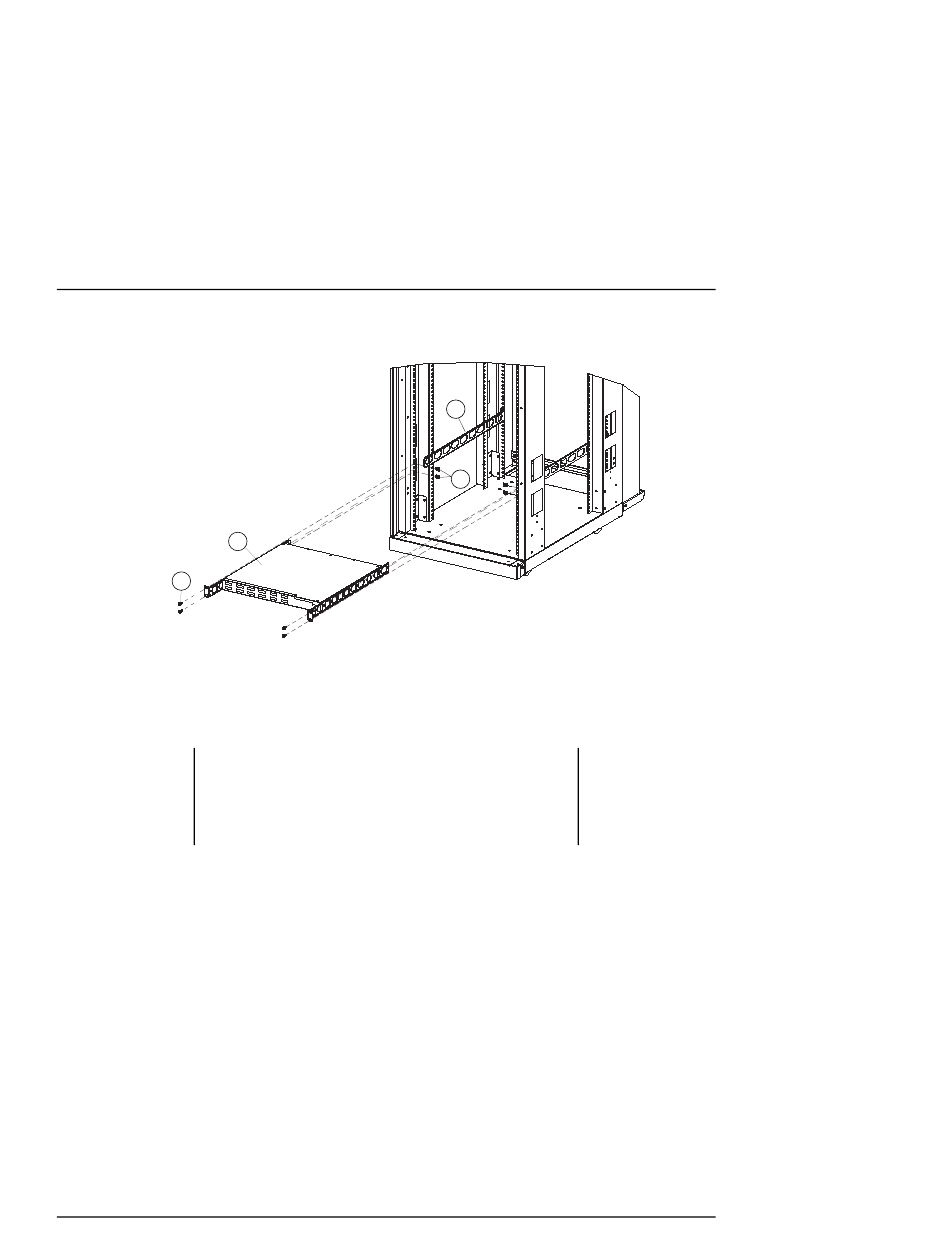

Figure 2–25 Installing Slide Brackets
2
4
12. Align the hub slide brackets (2, Figure 2–25) with both rear mounting brackets (3,
Figure 2–25) and insert the slide brackets into the mounting brackets, pushing inward
until the slide bracket flange contacts the cabinet vertical rails.
Faille to support the hub in a relatively level position during
installation can damage the rear mounting brackets.
Maintain this position until the slide bracket is fully secured
to the cabinet vertical rails.
13. Align the two left slide bracket holes with the two u-nuts installed in step 7 and
install two pan head SEMS screws (4, Figure 2–25), securing the bracket to the
cabinet rail.
14. Repeat step 13 for the right slide bracket.
15. Repeat steps 1 through 14 for each additional FC hub you plan to install.
16. Connect a power cord to each FC hub installed.
17. Reposition or reconnect any cabling affected during the procedures.
18. Refer to Figures 2–26 through 2–33 for specific examples of various HSG80 array
controller configurations.
2–40
3
1
CAUTION
387404–001
CXO6625A
EK–SMCPR–UG. A01
