RA8000 and ESA12000 Storage Subsystems

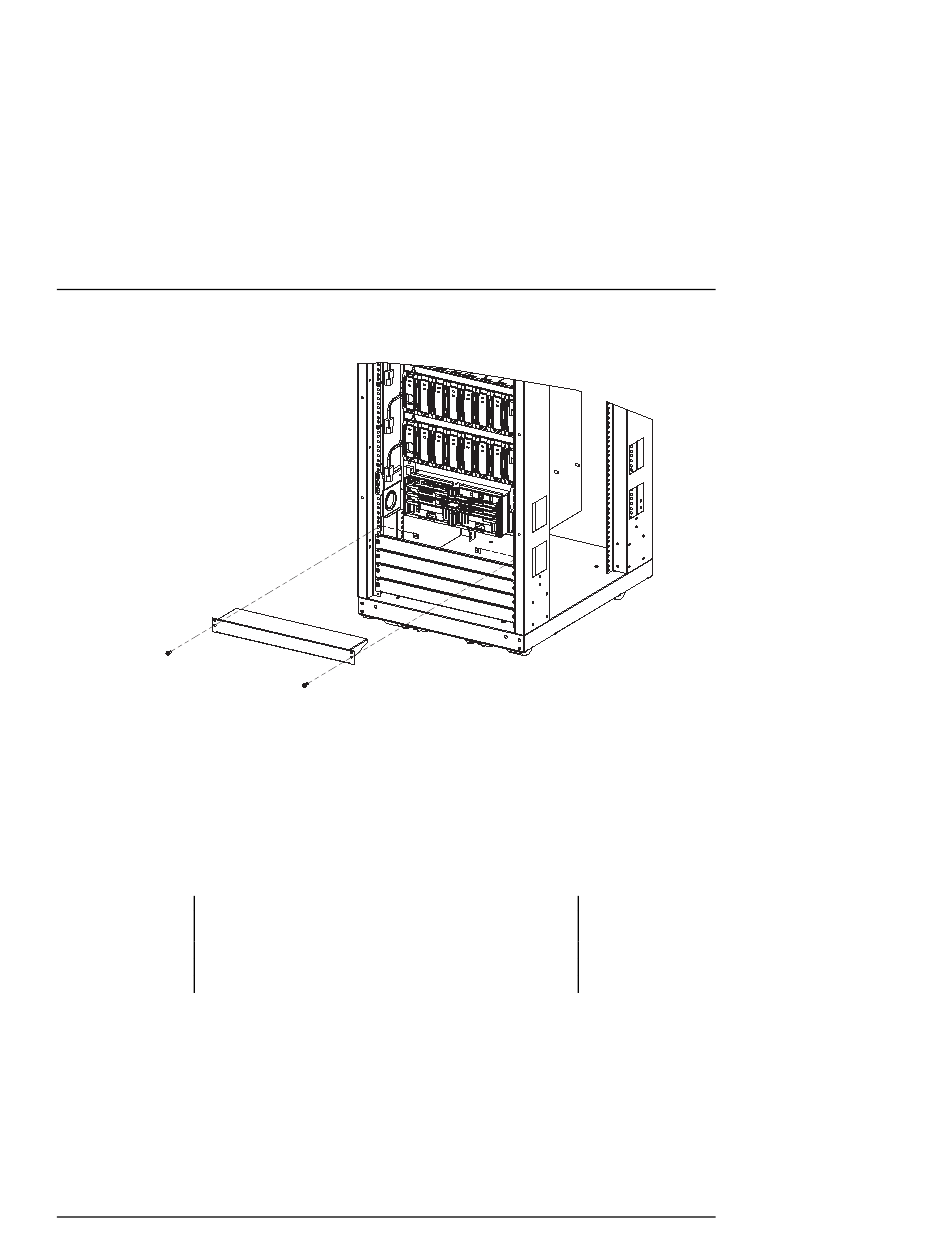

Figure 2–14 Installing the Cover Plate
2.4.1.4 Installing the Upper Enclosure in the Cabinet
This procedure describes how to install a second BA370 enclosure into the top location of
the expansion cabinet. As in the previous section, separate procedures are included to
install the mounting plates in both 41U RETMA and SW600 metric cabinets. Complete
only the procedure that applies to your specific cabinet design. The illustrations in the
previous section (Figures 2–10 through 2–14) support both 41U RETMA and metric
cabinet installations.
Never install a BA370 enclosure in the top location of the
cabinet without first installing an enclosure in the lower
location, or ensuring the lower section of the cabinet is
sufficiently weighed to provide cabinet stability.
2–22
WARNING
387404–001
CXO6596A
EK–SMCPR–UG. A01
