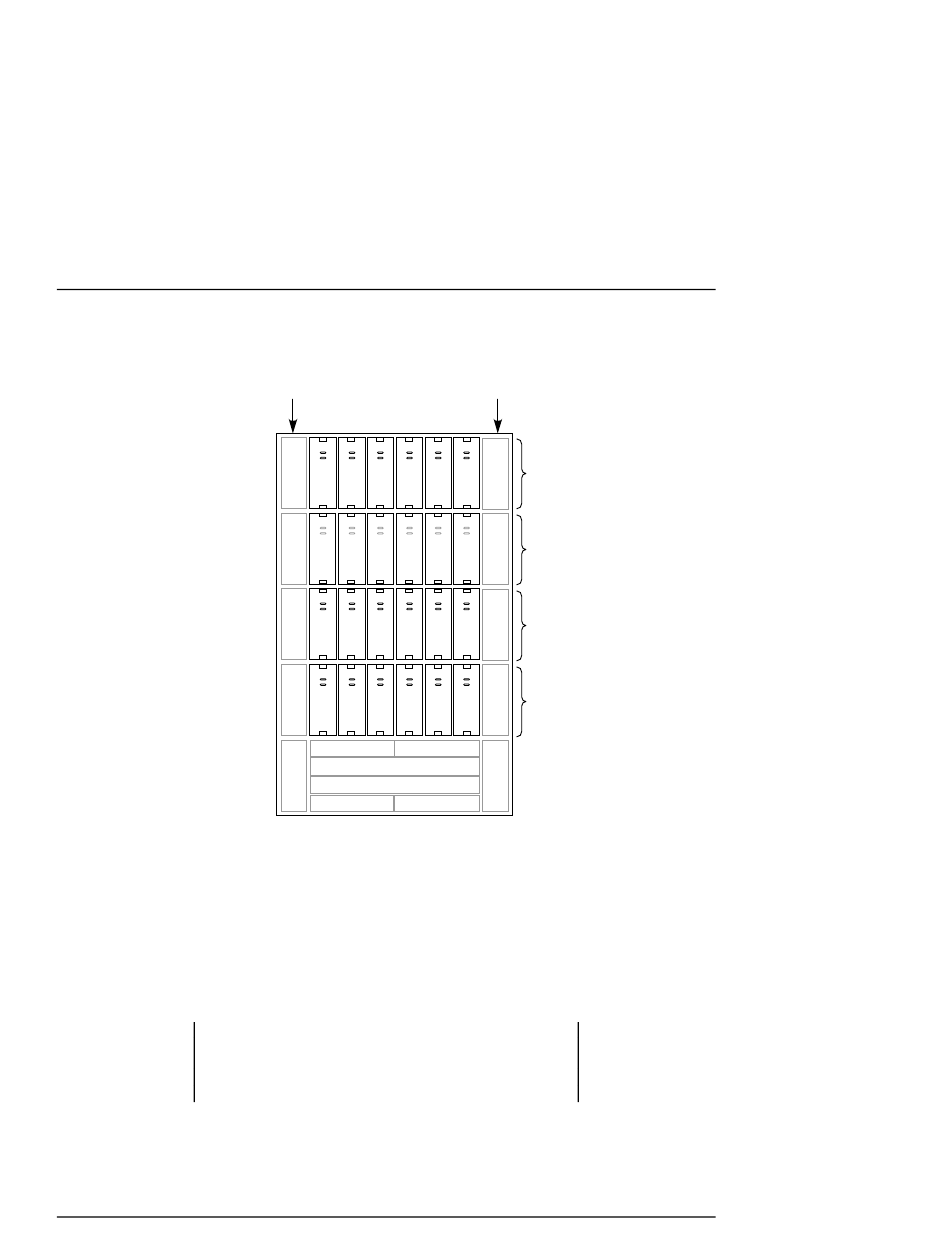

Figure 5–5 Placement of Multiple Disk Drive SBBs
3. Starting from the left, install all the disk drive SBBs in shelf 2 (devices
7–12).
4. Starting from the left, install all the disk drive SBBs in shelf 3 (devices
13–18).
5. Starting from the left, install all the disk drive SBBs in shelf 4 (devices
19–24).
To allow the array controller to properly recognize
addresses, ensure that you turn on the expansion
enclosures before turning on the master enclosure.
