RA8000 and ESA12000 Storage Subsystems

2.1.2 Placing the RA8000 Storage Enclosure

Use the following procedure to move the storage cabinet to its designated site:
Provide a clear path for the casters to prevent damage to
the cabinet and injury to personnel.
1. Roll the subsystem cabinet to the desired location.
2. Engage the locks on the front casters to prevent the cabinet from moving.

2.1.3 Connecting the Subsystem to the Host

Refer to Sections 2.4.3 and 2.4.6 in this chapter and to the platform-specific host adapter
and host system documents for information describing how to install the adapter and
make subsystem cable connections.
2.2

Installing the ESA12000

2.2.1 Site Preparation

Before installing the ESA12000, ensure that adequate space is available in front and in
back of the enclosure for opening the front and back doors. Also make sure there is
adequate space around the enclosure for adequate airflow. See Figure 2–2 for specific
space requirements.

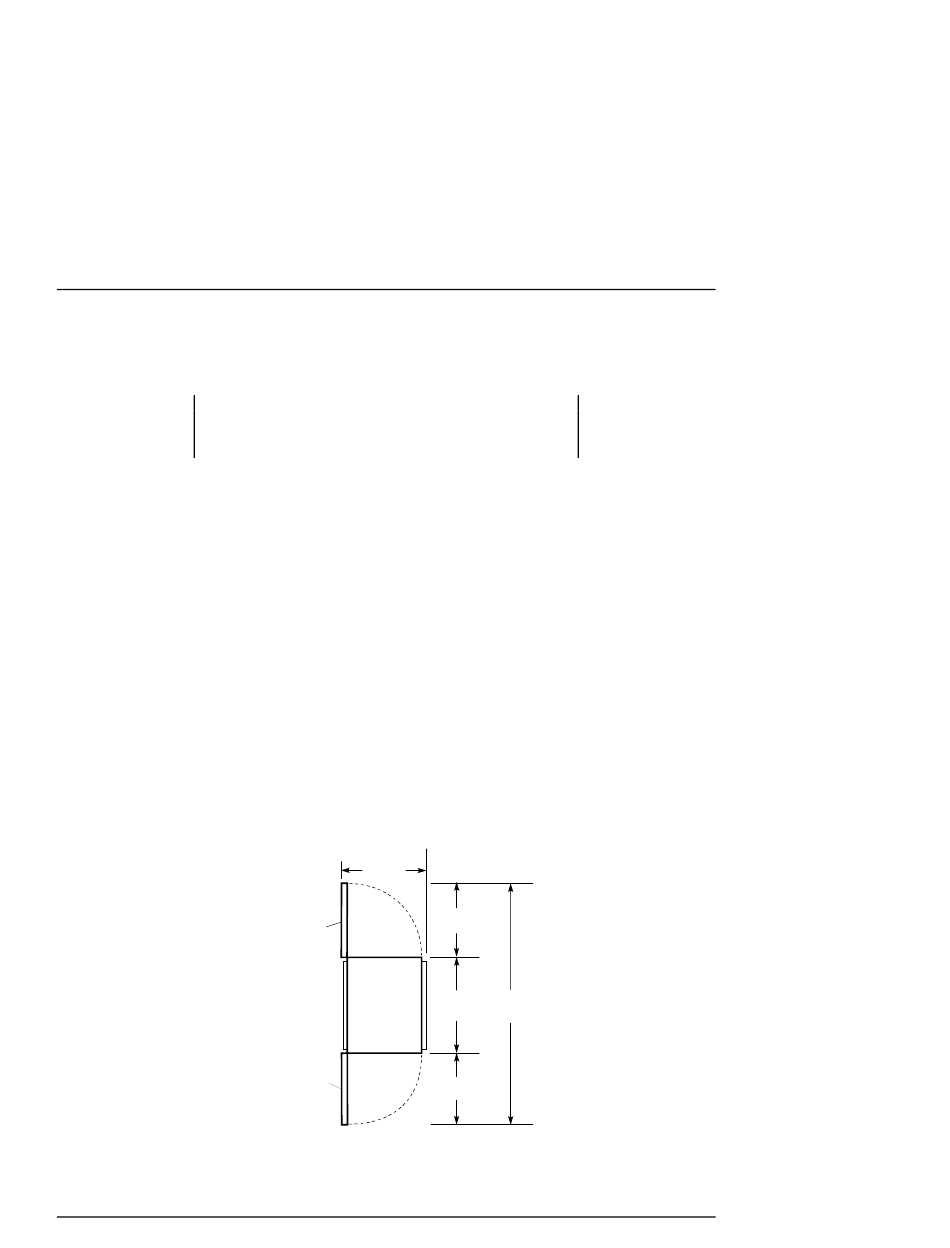

Figure 2–2 Minimum Installation Clearance Measurements
2–2
WARNING
595 mm
(23.4 in)
544 mm
(21.4 in)
Rear door
ESA12000
917 mm
cabinet
(36.1 in)
(Top view)
Front door 542 mm
(21.3 in)
387404–001
2002 mm
(78.8 in)
CXO6669A
