4.7.4 TERMPOWER Errors

The I/O module displays the TERMPOWER status for both the internal and the external
bus (see Figure 4–6). The nominal TERMPOWER voltage for both buses is +5 V dc.

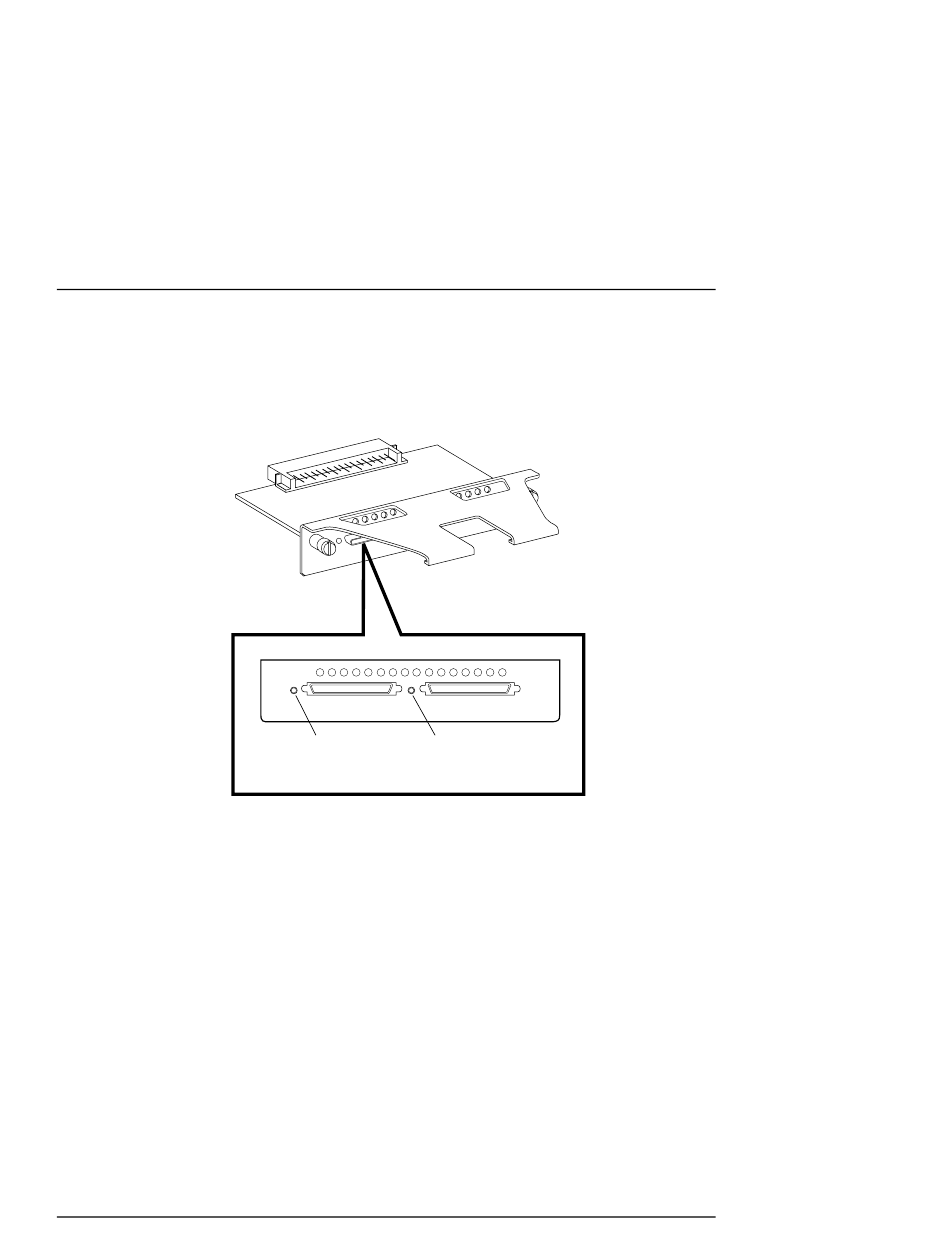

Figure 4–6 I/O Module LEDs
•
The green internal and external TERMPOWER LEDs are ON during normal operation
•
Whenever a TERMPOWER overcurrent condition exists, the associated LED is OFF
When an internal TERMPOWER overcurrent condition occurs, you must replace the I/O
module. When an external TERMPOWER overcurrent condition occurs, you must first
replace the associated cable. If this does not correct the problem, then replace the I/O
module.
EK–SMCPR–UG. A01
Chapter 4. Error Analysis and Fault Isolation
External
Internal
TERM POWER TERM POWER
disable LED
disable LED
387404–001
CXO5947A
4–21
