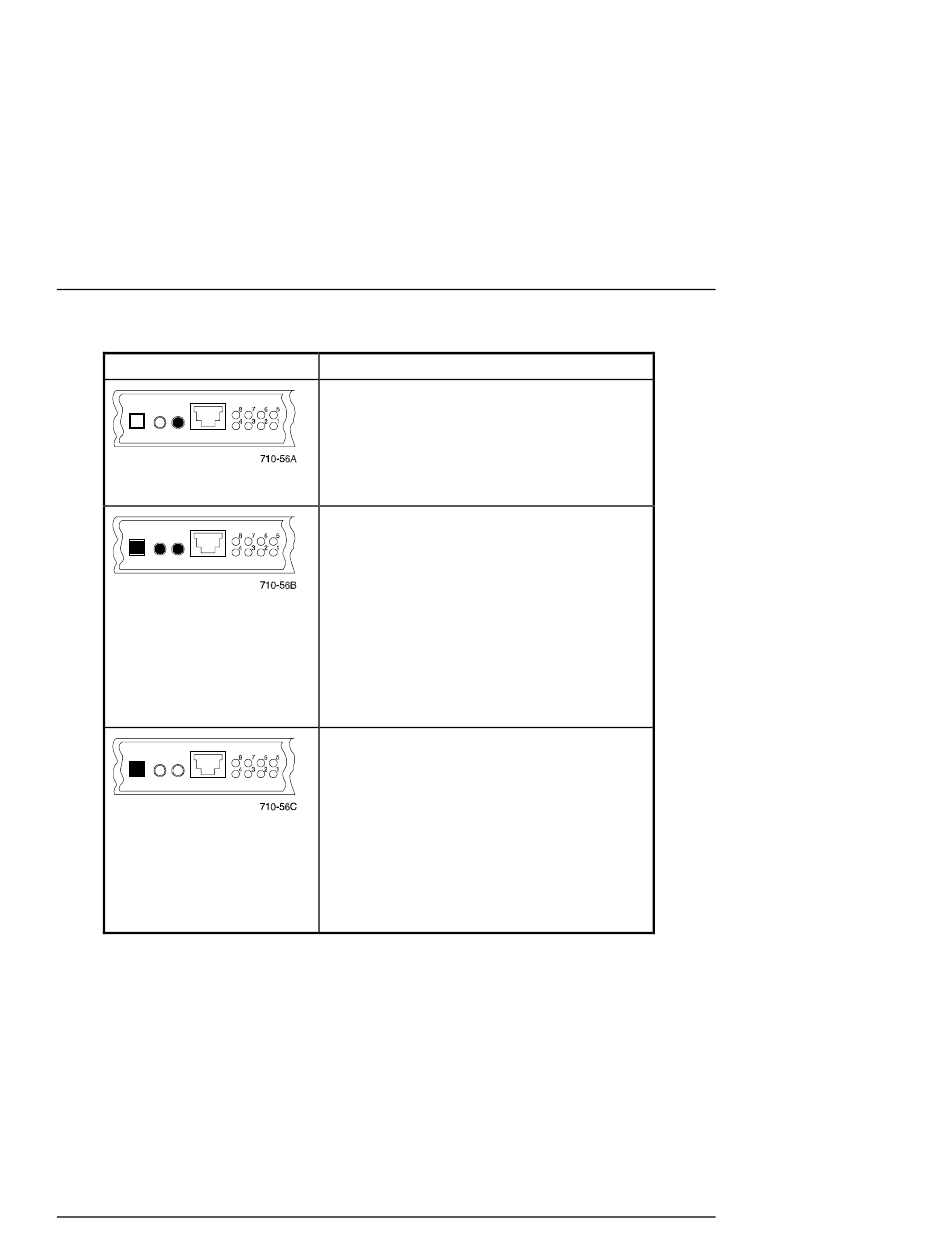

Table 4–3 EMU Status Displays
EMU LED Display
4–6
EMU Status
Operational Enclosure
The subsystem is fully operational.
The power supplies and blowers are
functioning properly. The EMU intake and
backplane exhaust air temperatures are within
user-specified limits.
Overtemperature Condition
Probable Cause 1—A temperature in one or
more enclosures is above the user-specified
limit.
Determine and correct the cause of this
condition quickly to prevent an
overtemperature condition from inducing a
subsystem RESET or failure.
Probable Cause 2—A temperature set point is
too low for this environment.
Change the temperature set point.
Nonoperational Enclosure
Probable Cause 1—Either + 5 V dc or 12 V dc
out of range.
Observe the individual power supply status
LEDs to determine the defective power supply
and replace it.
Probable Cause 2—TERMPOWER less than
+ 4.5 V dc on one or more I/O modules.
Replace the I/O modules displaying a
TERMPOWER LED OFF indication.
