RA8000 and ESA12000 Storage Subsystems

2.4.6 Installing the Fibre Channel Hub Mounting Kit

This procedure describes how to install a fibre channel (FC) hub using a FC hub mount kit
into an ESA12000 cabinet. A FC hub can be mounted in any 1U space within a 41U
RETMA cabinet. However, Compaq recommends installing the hub below the lowest
enclosure in the cabinet. If installing more than one hub, mount subsequent hubs (up to
four) directly below the first hub (see Figure 2–22). Each hub installation requires a 1U
space. HSG80 array controller configuration examples are included following the
procedure.

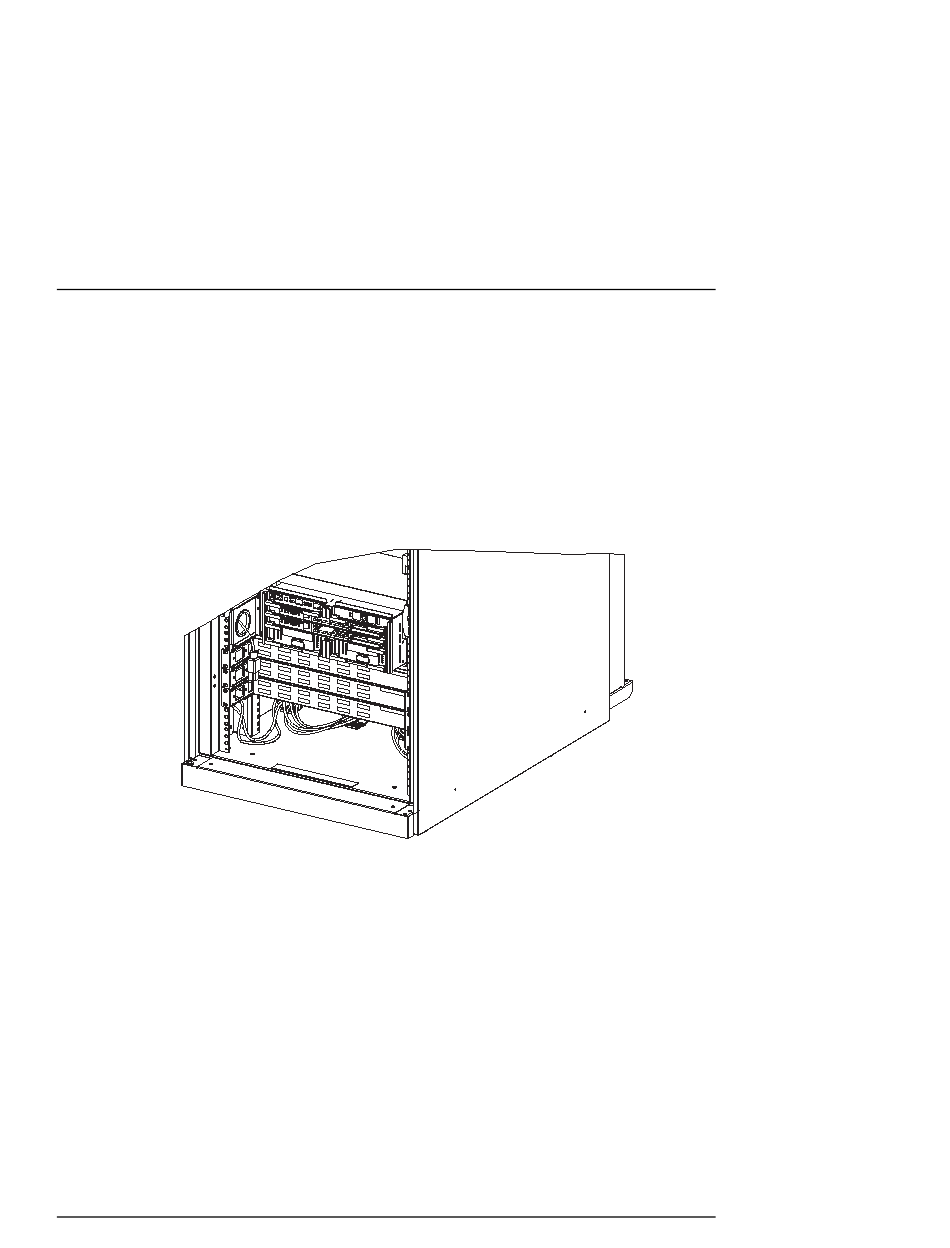

Figure 2–22 Three FC-Hub Configuration Example
2.4.6.1 Power Cord Installation Procedure
Before installing a FC hub, a power cord for each hub being installed must be installed.
For multiple FC hub configurations, Compaq recommends connecting primary hubs to the
primary PDU and secondary hubs to the redundant PDU.
Complete the following procedure to install a power cord for each FC hub being installed.
2–36 387404–001
CXO6626A
EK–SMCPR–UG. A01
