The subsystem enclosure supports single-ended, Ultra Wide storage devices. The
configuration rules for the SCSI buses are as follows:
•
All devices and ports in the same column are on the same SCSI bus or port
•
All devices in the same row (device shelf) have the same device address
•
You may only install array controller-compatible Ultra Wide storage SBBs
•
Device addresses 4 and 5 are only used when the SBB has a device address switch
•
Device addresses are determined by the backplane connector into which the device is
inserted unless the SBB has a device address switch

1.2.3 Single-Ended I/O Module (SE I/O)

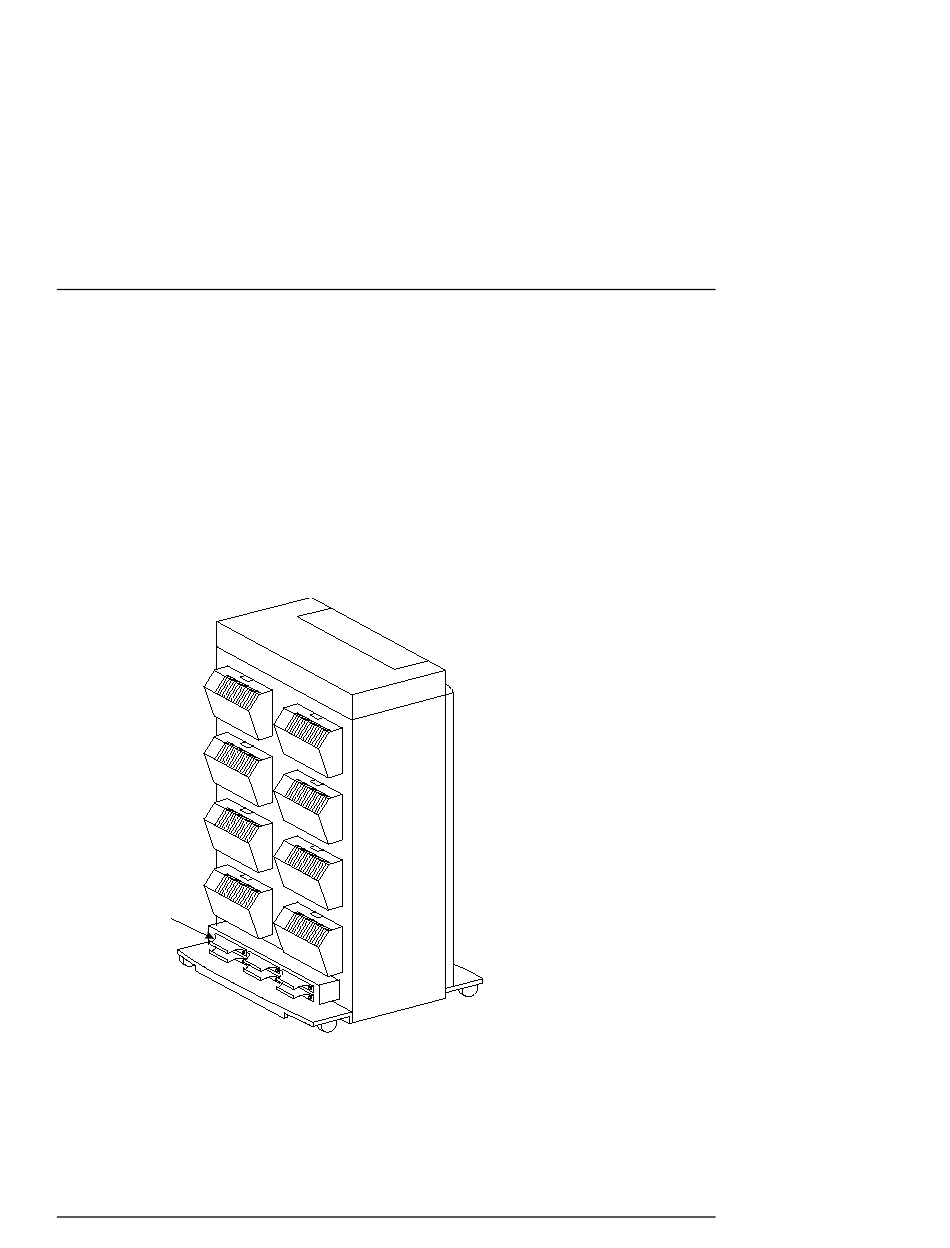

Figure 1–8 Single-Ended I/O Module Location
