2.4.6.2 Hub Installation Procedure (See Figures 2-23, 2-24 and 2-25)
Complete the following procedure to install an FC hub into the cabinet using the FC hub
mount kit.
1. Install two U-nuts in the first and third hole of the first U-space available under the
lowest enclosure at the rear of the cabinet (see
2. Reposition or remove any cabling that might interfere with installing a hub in the
designated location.

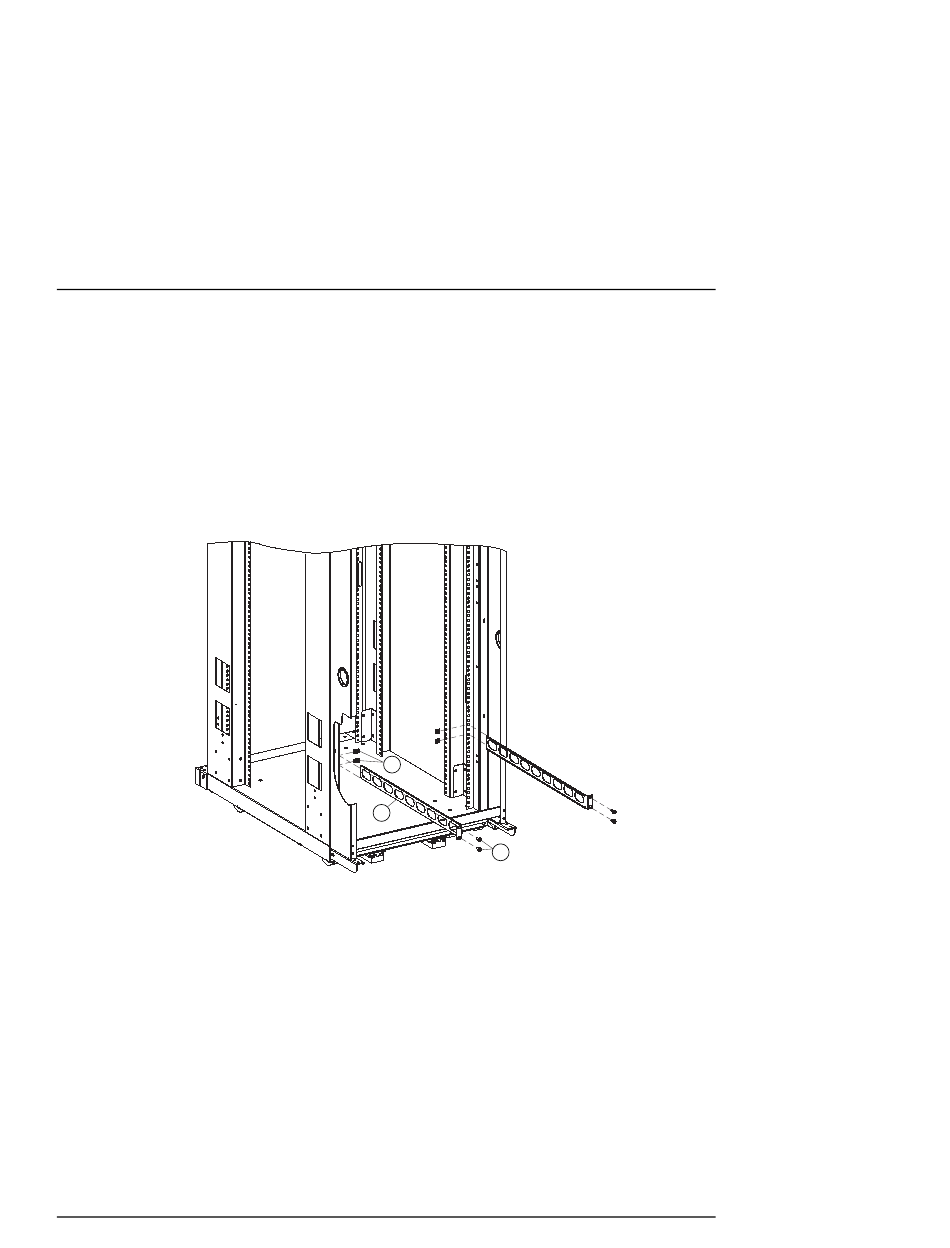

Figure 2–23 Installing U-Nuts and Brackets
3. Align the first rear mounting bracket
previous step and secure the bracket using two pan head SEMS screws
4. Repeat steps 1 and 3 for the second rear mounting bracket using the right-hand
cabinet vertical rail. Ensure this bracket uses the same U-space holes as the left-hand
bracket.
5. Remove four flat head screws
discard them (two screws on the left side and two on the right side).
