RA8000 and ESA12000 Storage Subsystems

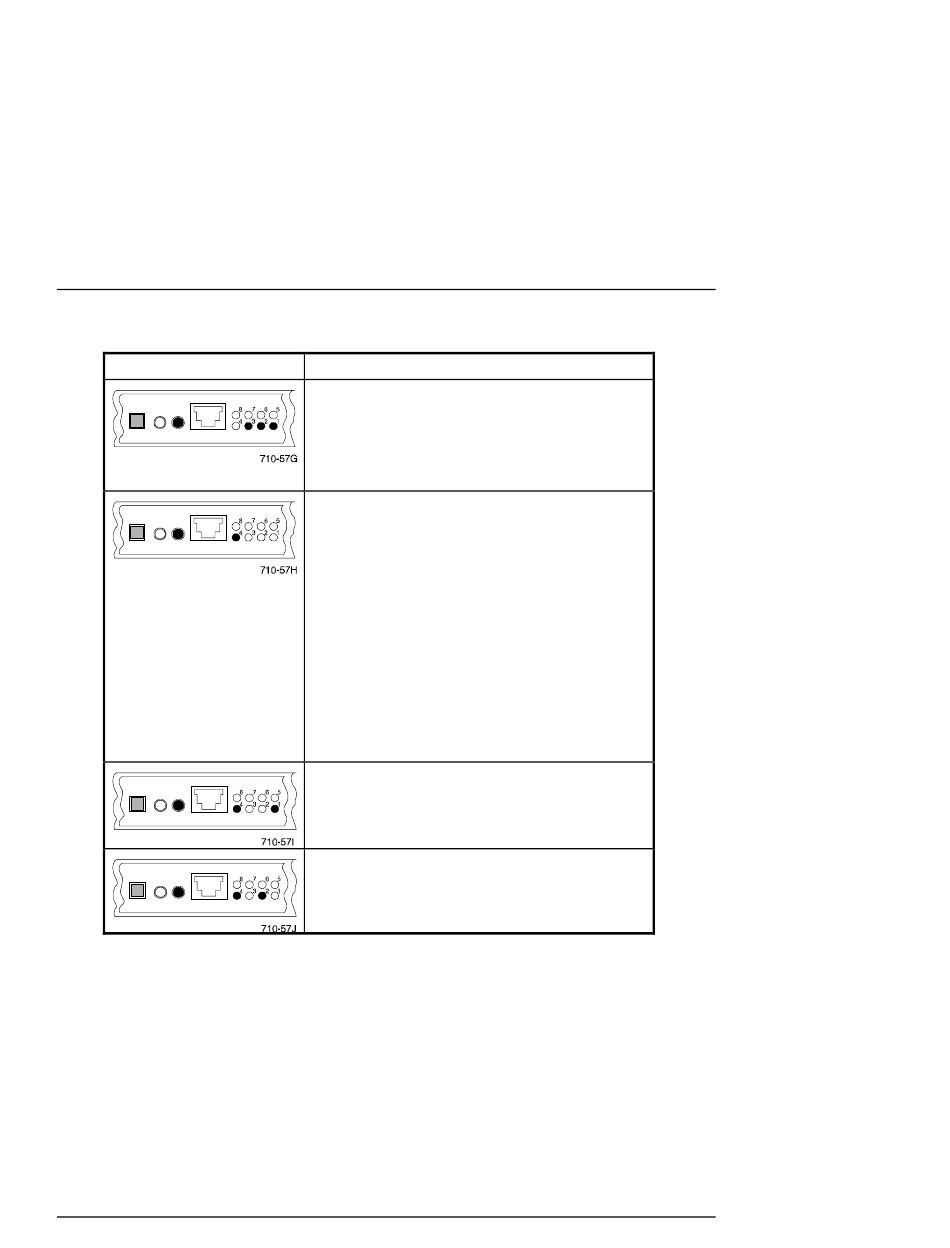

Table 4–4 EMU Fault Code LED Displays (continued)
Display
4–12
Fault Code, Cause, Corrective Action
Fault Code 07
Invalid configuration.
Requires an array controller-specific action (see
the HSG80 or HSZ80 Array Controller ACS
Version 8.x Maintenance and Service Guide).
Fault Code 08
Two PVA SCSI ID switch settings are the same.
1. Ensure the PVA SCSI ID switch settings are
as follows:
•
Master Enclosure—0
•
First Expansion Enclosure—2
•
Second Expansion Enclosure—3
2. If any PVA SCSI ID switch setting is
changed, the array controllers must be
RESET to recognize the new setting.
3. Replace each of the PVAs in sequence (first,
the master, then the expansions) until the
fault condition clears.
Fault Code 09
An EMU is installed in a PVA slot.
Remove the EMU from the PVA slot and install it
into the slot immediately to the left.
Error Code 0A
No PVA is installed.
Install a PVA.
