10. The WEB`log

The WEB`log is the central element for the implementation of the
meteocontrol Power Control.
Power Control function:
Receipt of the processed requirement values from the PCU
Receipt of the requirement values from WEB`log digital inputs
Receipt of measurement values from the grid connection point
Algorithm system control circuit for power on the grid connection point
Requirement procedure and determination of control values
As the master: sending of control values to slaves
As the slave: receipt of control values
Transfer of control values to the inverters
10.1

Connection options

10.1.1

Ripple control receiver with WEB`log, digital inputs

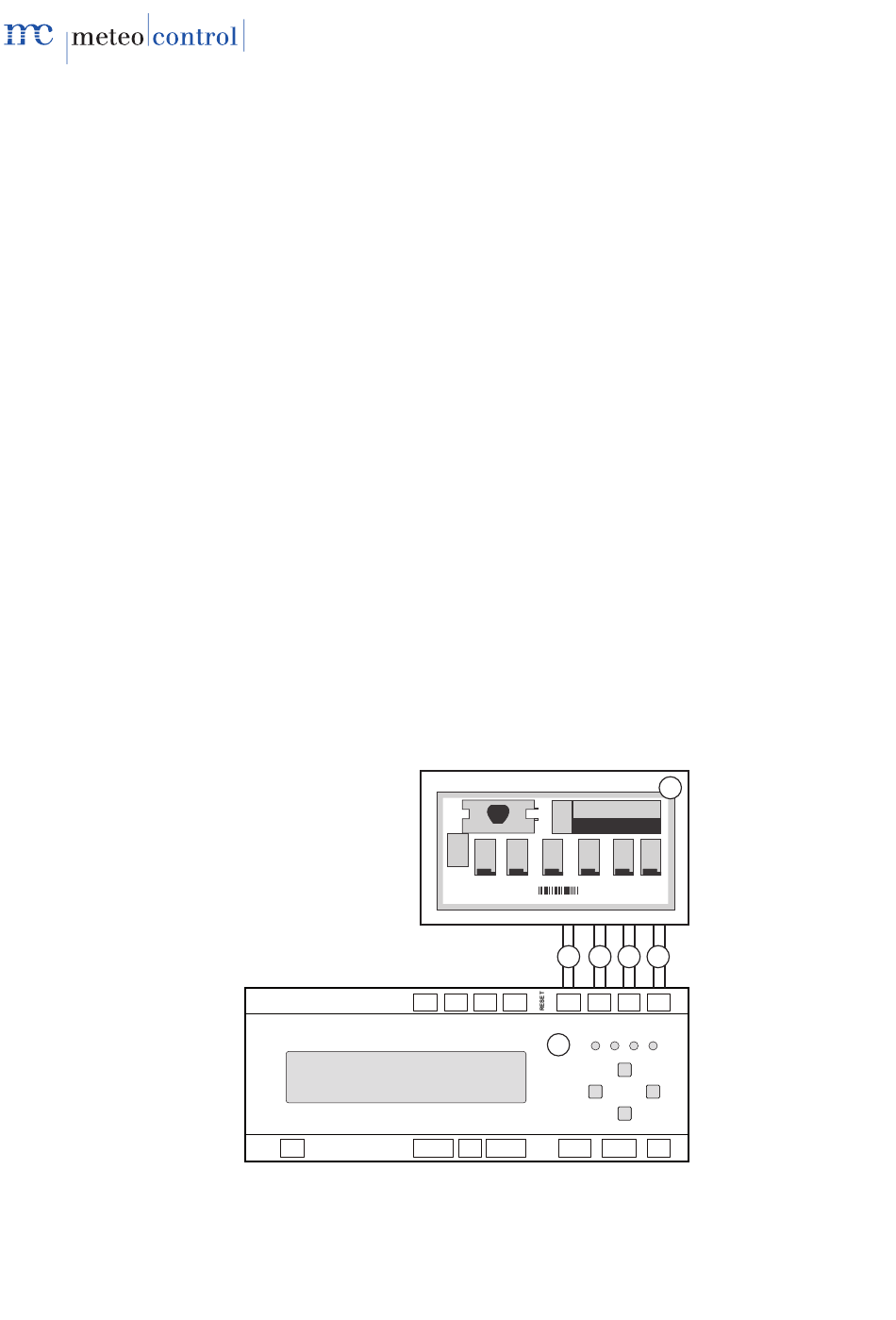

The following example shows the connection of a ripple control receiver to
the internal digital inputs of the WEB`log.
When using the internal WEB`log inputs (WEB`log DIs), the use of feedback
signals is not supported.
