Cos Φ(P) - meteocontrol Power Control Operating Manual

Power quality analyser and main computer are the currently supported
measurement devices (see section 6.4 Details on the PCU device
configuration -> Selection GCP source).

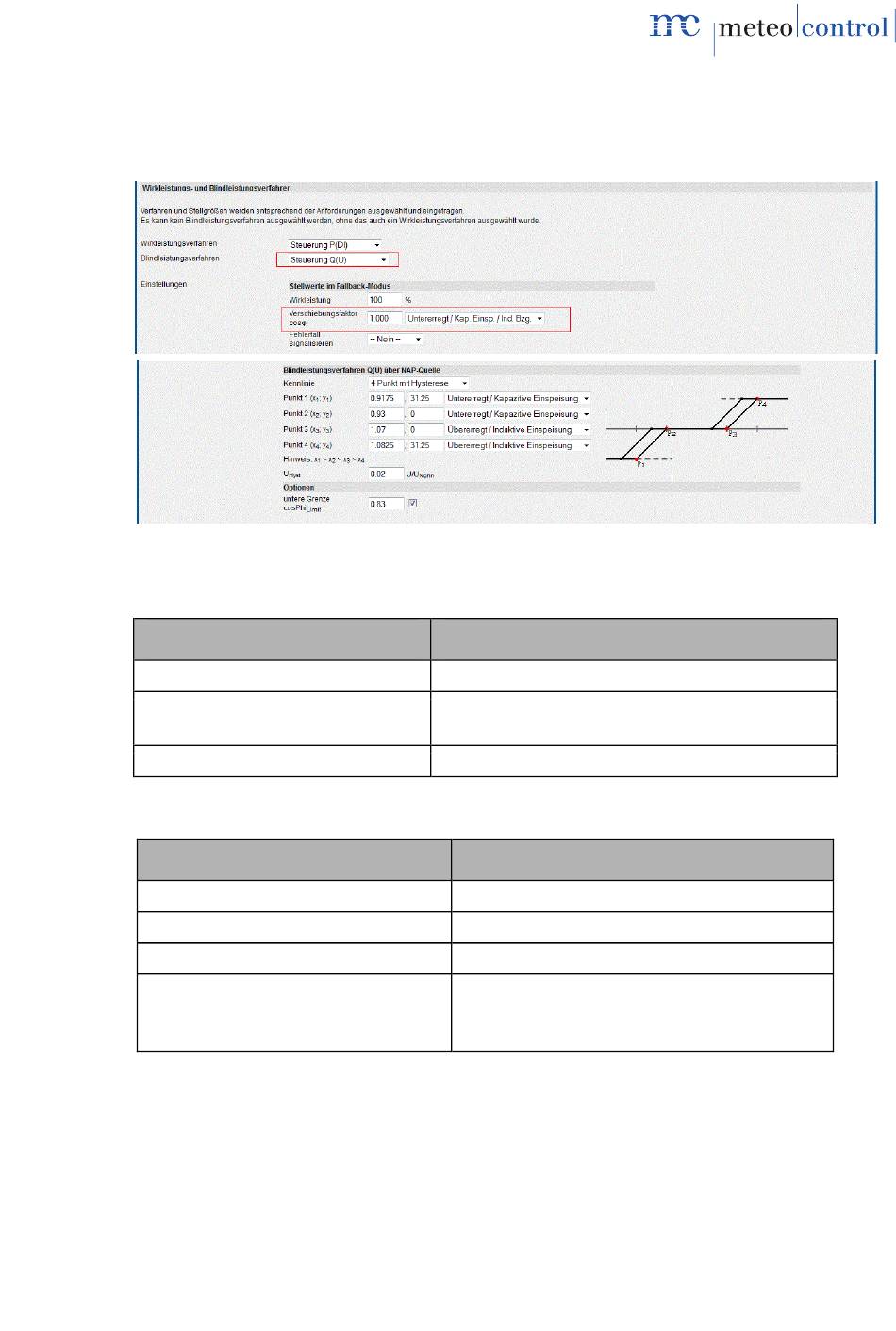

Fig. 36: Reactive power procedure control Q(U)
Control values in the fallback mode
Input field
Displacement factor
Excitation
Digital output
Reactive power procedure via voltage requirement U
Input field
Curve
Point 1...4
U
Hyst
Lower limit cos φ
7.2.9 cos φ(P)
With this procedure, the displacement factor cos φ is used as the control
value. The requirement P is received from the selected measurement device
and is assigned to the control value with a linear equation.
meteocontrol Power Control 03082012 - en
Meaning
Control value cos φ
Excitation type reactive power
(overexcited/underexcited)
Feedback output
Meaning
Type of curve
Support points 1...4
Hysteresis as the ratio of U/U
Lower cos φ limit up to which the curve
Limit
is moved, then the selected cos φ is
used as the fixed value
Nom
53/78
