Power procedures P(DI) and Q(DI) combined

The following example indicates the combination of a P(DI) controlled active
power procedure and a Q(DI) controlled reactive power procedure.

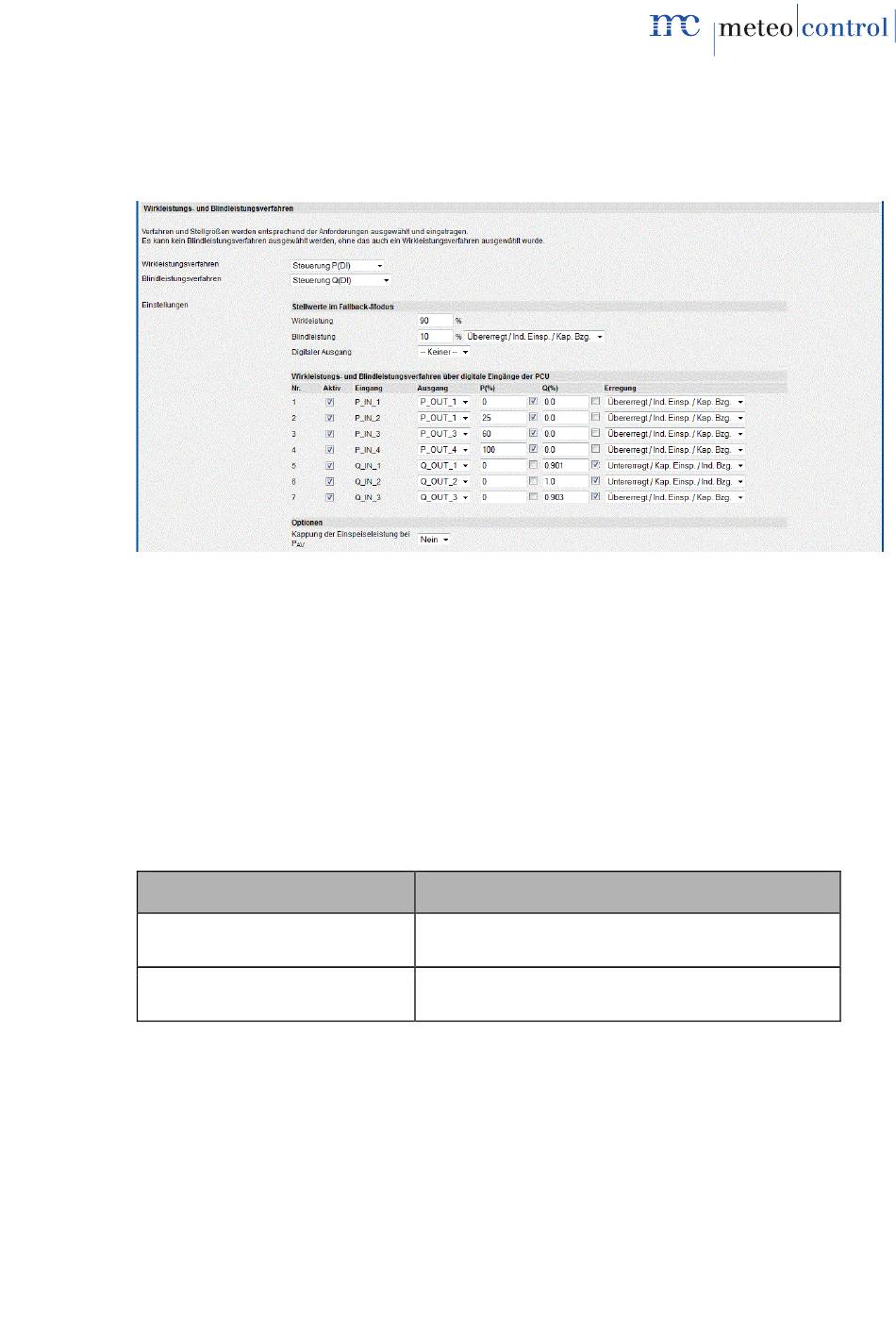

Fig. 32: Power procedures P(DI) and Q(DI) combined
Note:
Input field
Active power procedures
Reactive power procedures
meteocontrol Power Control 03082012 - en
The areas highlighted in red in the Fig. shown here illustrate
the settings fields relevant for the active power procedure
P(DI) and the reactive power procedure Q(DI).
Of the DI requirement source is chosen for the active power
and reactive power procedures, the configuration is made in
a table. Ensure that the rule for P and Q are not inadvertently
mixed. The relevant parameter is used if the checkbox is set
to the right next to the corresponding input field.
Meaning
Indicates the active power procedure P(DI)
selected
Indicates the reactive power procedure Q(DI)
selected
