Functional display Power Control with WEB`log PRO and
PCU

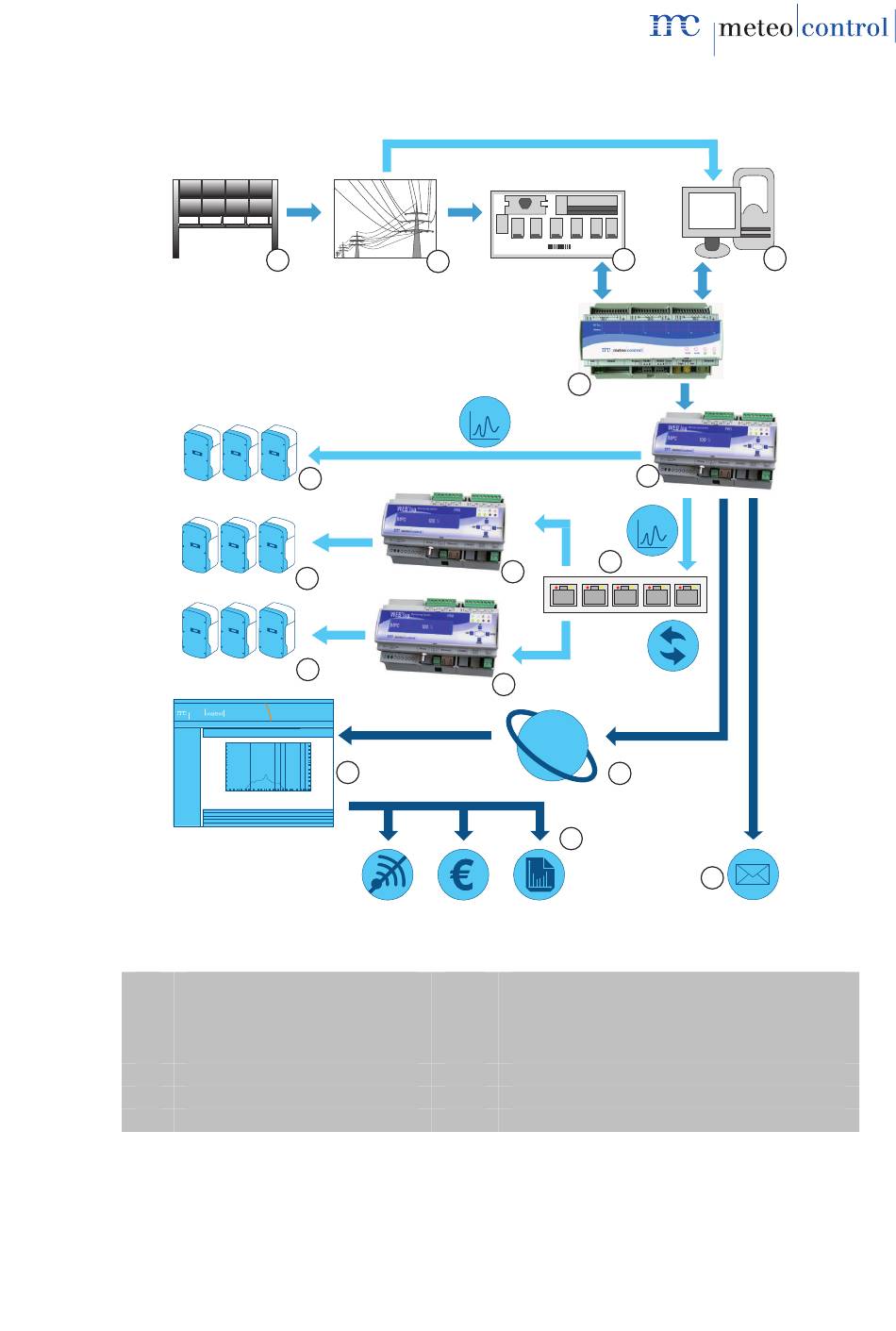

Fig. 1: Functionality PCU<>Power Control
(1)
Energy supplier
(2)
Public grid
(3)
Ripple control receiver
(4)
Central computer
(5)
Power control unit (PCU)
(6)
WEB`log PRO as master
(7)
Ethernet switch
meteocontrol Power Control 03082012 - en
1
9
9
9
safer Sun
11
2
5
P/Q
8
8
13
(8)
WEB`log PRO as slave
(9)
Inverter
(10)
Internet
(11)
Web portal
(12)
Power requirements report
(13)
Alert, residual energy balance report
4
3
6
P/Q
7
10
12
13/78
