7.2.10 cos φ(U)
With this procedure, the displacement factor cos φ is used as the control
value. The requirement U is received from the measurement device chosen
and is assigned to the control value with a linear equation.
Power quality analyser and main computer are the currently supported
measurement devices (see section 6.4 Details on the PCU device
configuration -> Selection GCP source).

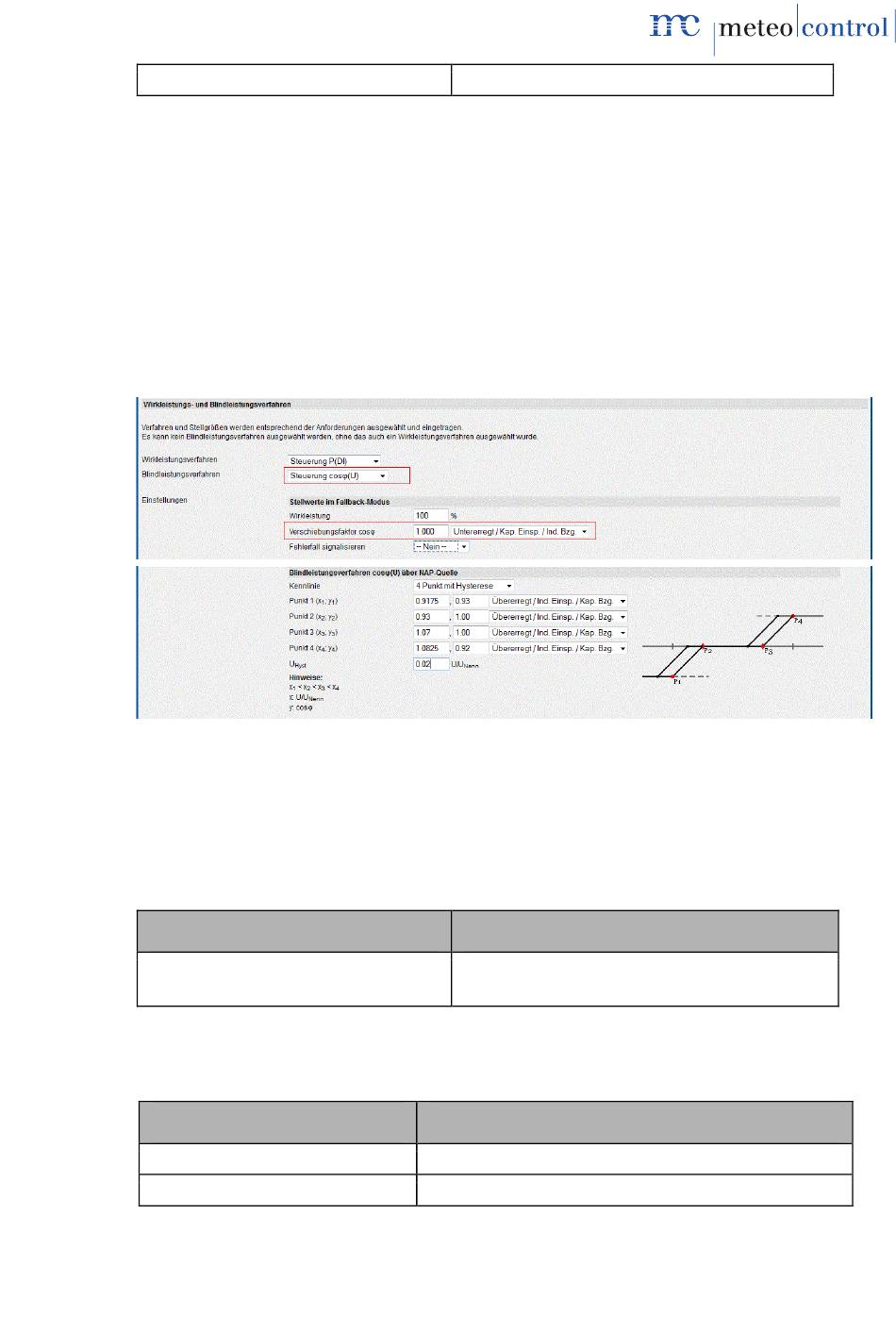

Fig. 38: Reactive power procedure control cos φ(U)
Note:
Input field
Reactive power procedures
Control values in the fallback mode
Input field
Displacement factor
Digital output
meteocontrol Power Control 03082012 - en
The areas highlighted in red in the Fig. shown here illustrate
the settings fields relevant for the reactive power procedure
cos φ(U).
Meaning
Control factor cos φ
Feedback output
Hysteresis as the ratio of P/P
Meaning
Indicates the active reactive power
procedure cos φ (U) selected
AV
