Assignment of Modbus device profiles

Under "Admin Measurement" menu item, "Device configuration" item the
Modbus device type is assigned for the corresponding Modbus client ID.

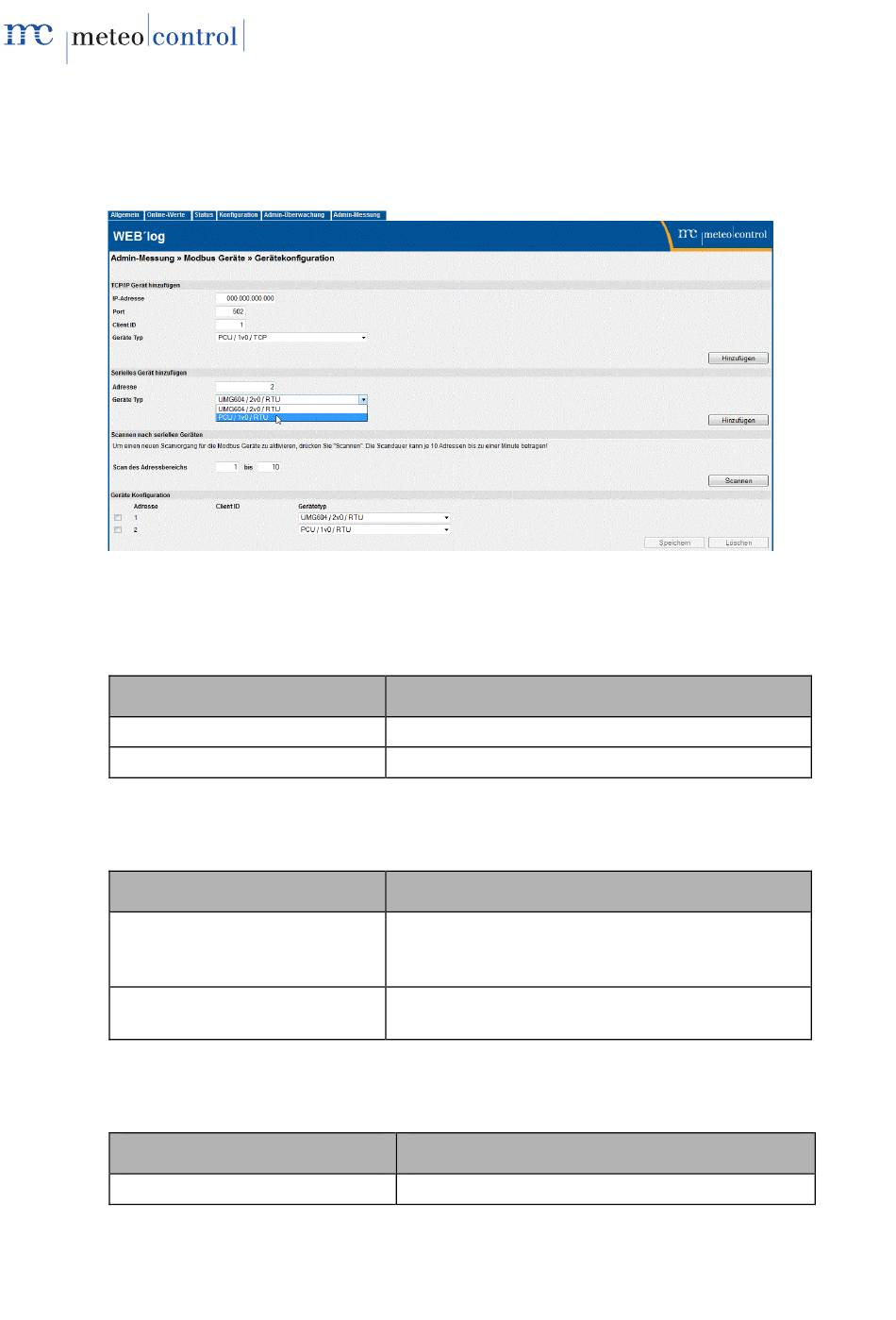

Fig. 5: Assignment Modbus client ID to the device type
Add serial device
Input field
Address
Device type
Scan for serial devices
Input field
Address space scan
Scan
Add TCP/IP device
Input field
IP address
20/78
Meaning
Client ID of the Modbus device.
Device type of the Modbus device
Meaning
Number of client IDs to be scanned (standard:
1-20). Scan duration depending on the size of
the address range up to one minute.
After a successful scan, the devices found are
listed under „Device configuration"
Meaning
Input of the IP address
