Control process
The active and reactive power procedures selected determine the processing
type of the requirements received. Details on the configuration of the
procedures are stated in section 7 Active and reactive power procedures.
The plant control circuit ensures the observance of the values required on
the GCP. Details on the configuration of the control circuit are stated in
section 8 System control circuit.
Power Control System Data

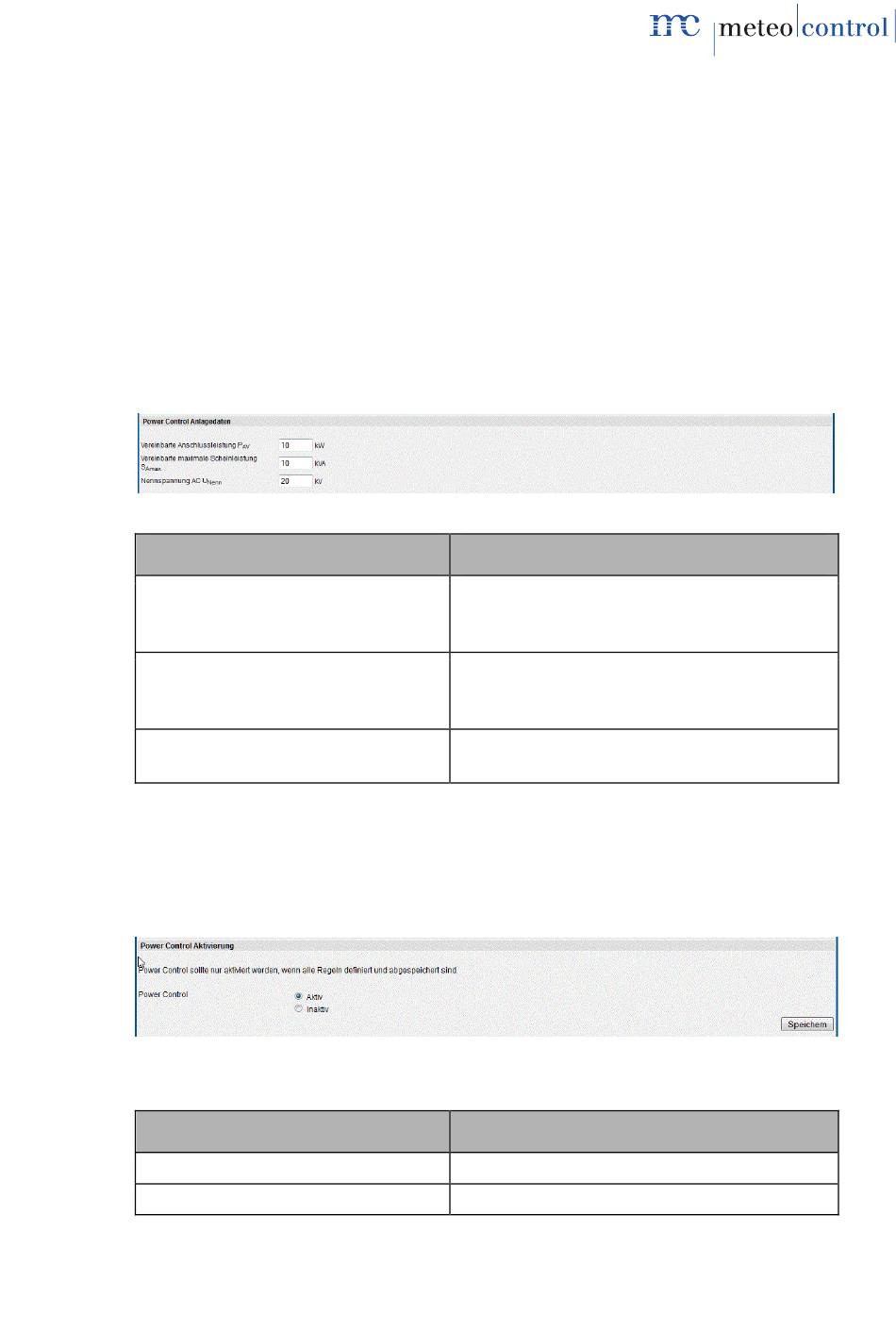

Fig. 20: Power control system data
Input field
Agreed connection power P
Agreed maximum apparent
power S
Nominal voltage AC U
Enabling Power Control
It is recommended to only enable the Power Control when the configuration
has been completed.
Fig. 21: Enabling Power Control
Input field
Power Control
Save
meteocontrol Power Control 03082012 - en
Amax
Nom
Meaning
Maximum feed-in active power on the
AV
grid connection point agreed with the
energy supplier
Maximum apparent power on the grid
connection point agreed with the energy
supplier
Nominal voltage at the grid connection
point
Meaning
Enables or disables the PC
Saves the settings
