Reactive Power Procedures; Cos Φ(Di) - meteocontrol Power Control Operating Manual

7.2

Reactive power procedures

7.2.1 cos φ(DI)
With this procedure, the displacement factor cos φ is used as the control
value. The DI requirement is provided by the grid operator as a digital input
signal, e.g. digital ripple control receiver and connected to the digital inputs of
the PCU.
The assignment is carried out via a parameter table. The breakdown and
assignment of the levels are freely selectable. In doing so, every digital PCU
input corresponds to a requirement value.
Feedback is provided via the digital outputs of the PCU.

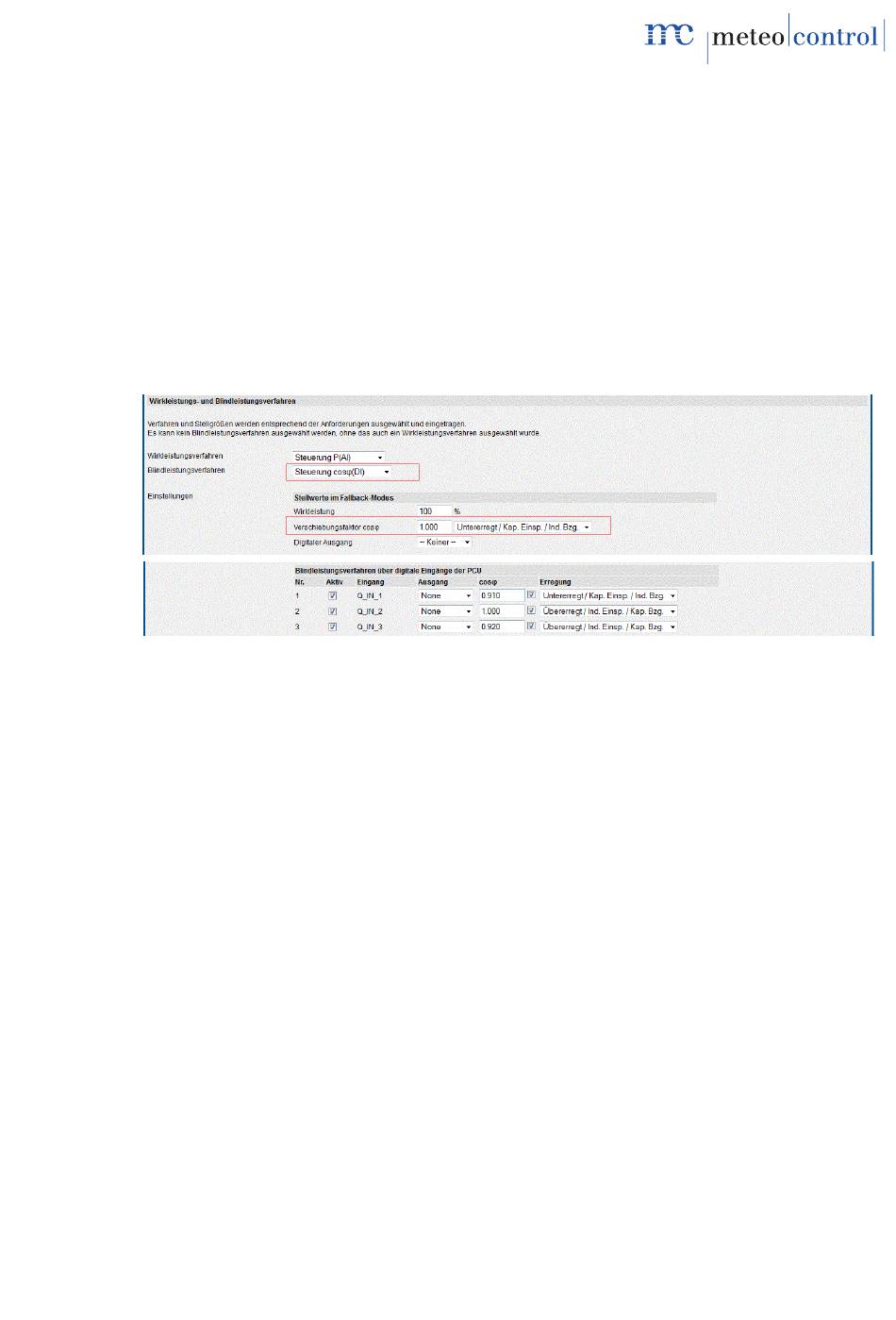

Fig. 27: Reactive power procedure cos φ(DI)
Note:
meteocontrol Power Control 03082012 - en
The areas highlighted in red in the Fig. shown here illustrate
the settings fields relevant for the reactive power procedure
cos φ(DI).
39/78
