3.10.1 Electronics cover (inside) and connection box

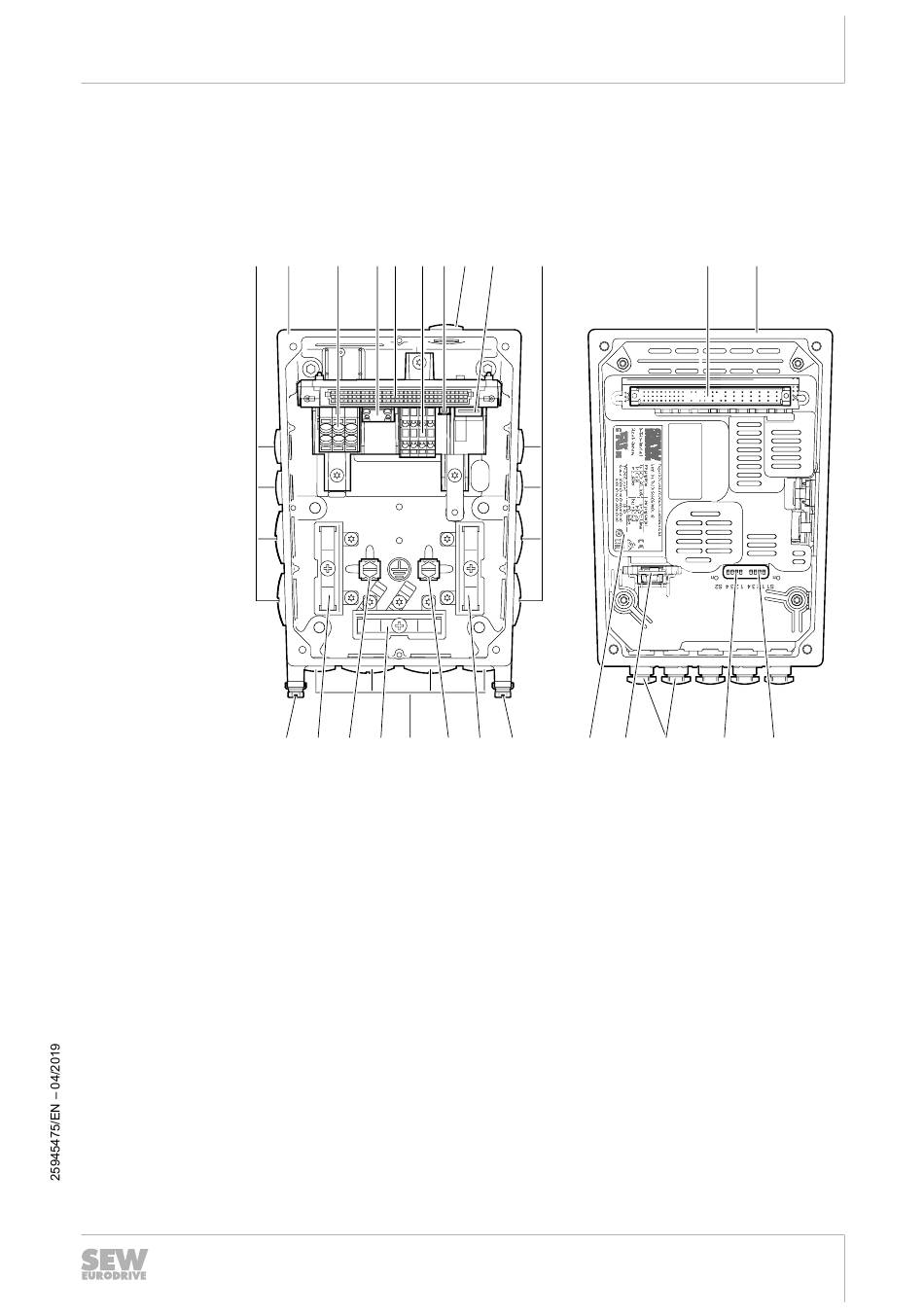

The following figure shows the connection box and the bottom side of the electronics
cover:
[1]
[1]
[2]
[3]
[4]
[5]
[6]
[7]
[8]
[9]
[10] DIP switches S1/1 – S1/4
[11] DIP switches S2/1 – S2/4
[12] Replaceable memory module
[13] Electronics cover nameplate
[14] Screws for PE connection
[15] Shield clamp
[2] [3] [4] [5] [6] [7]
[14] [15] [14] [15] [1] [14]
Cable glands
Connection box
Line connection L1, L2, L3
Braking resistor connection
Plug connector connection unit for electronics cover
Electronics terminal strip
Fieldbus connection (depends on the configured connections)
Engineering interface
Electronics cover
[1] [8] [1]
[15] [14] [13] [12]
Operating Instructions – MOVIGEAR
Unit structure
Electronics
[5] [9]
[7] [11] [10]
