Description of status and operating displays
8.6.2 LEDs for EtherNet/IP™, Modbus TCP
8.6.3 LEDs for POWERLINK
154
Operating Instructions – MOVIGEAR

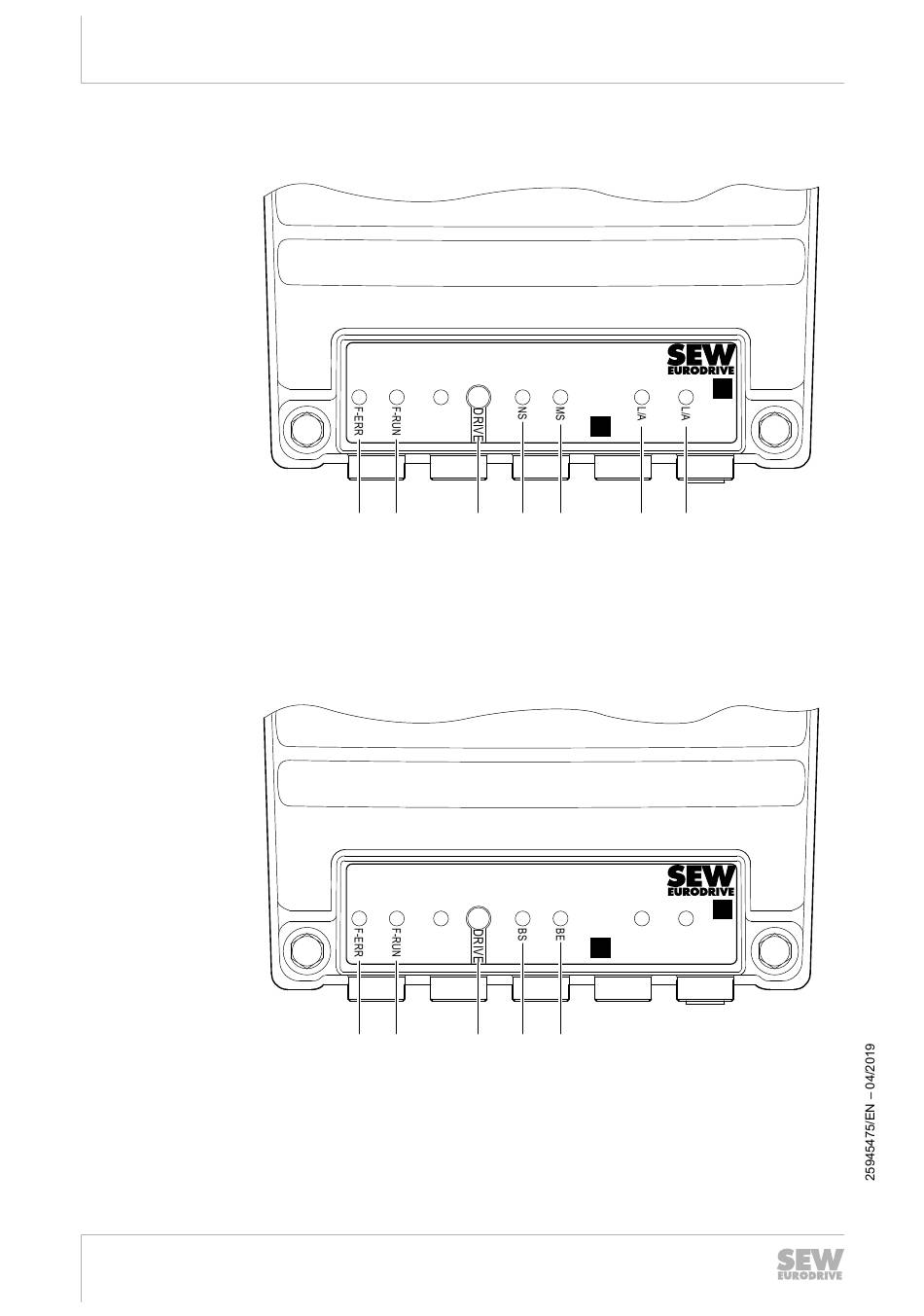

The following figure shows the LEDs of the EtherNet/IP™, Modbus TCP design:
DFC30A-0020-503-A-000-001
EtherNet/IP / Modbus TCP
[1] [2]
[1] "F-ERR" LED
[2] "F-RUN" LED
[3] "DRIVE" status LED
The following figure shows the LEDs of the POWERLINK design:
DFC40A-0020-503-A-E00-000
POWERLINK CiA402
[1] [2]
[1] "F-ERR" LED
[2] "F-RUN" LED
[3] "DRIVE" status LED
®
performance
MAC ID
[3] [4] [5]
[4] "NS" LED
[5] "MS" LED
MAC ID
[3] [4] [5]
[4] "BS" LED
[5] "BE" LED
[6] [7]
9007225101311627
[6] "L/A" LED
[7] "L/A" LED
