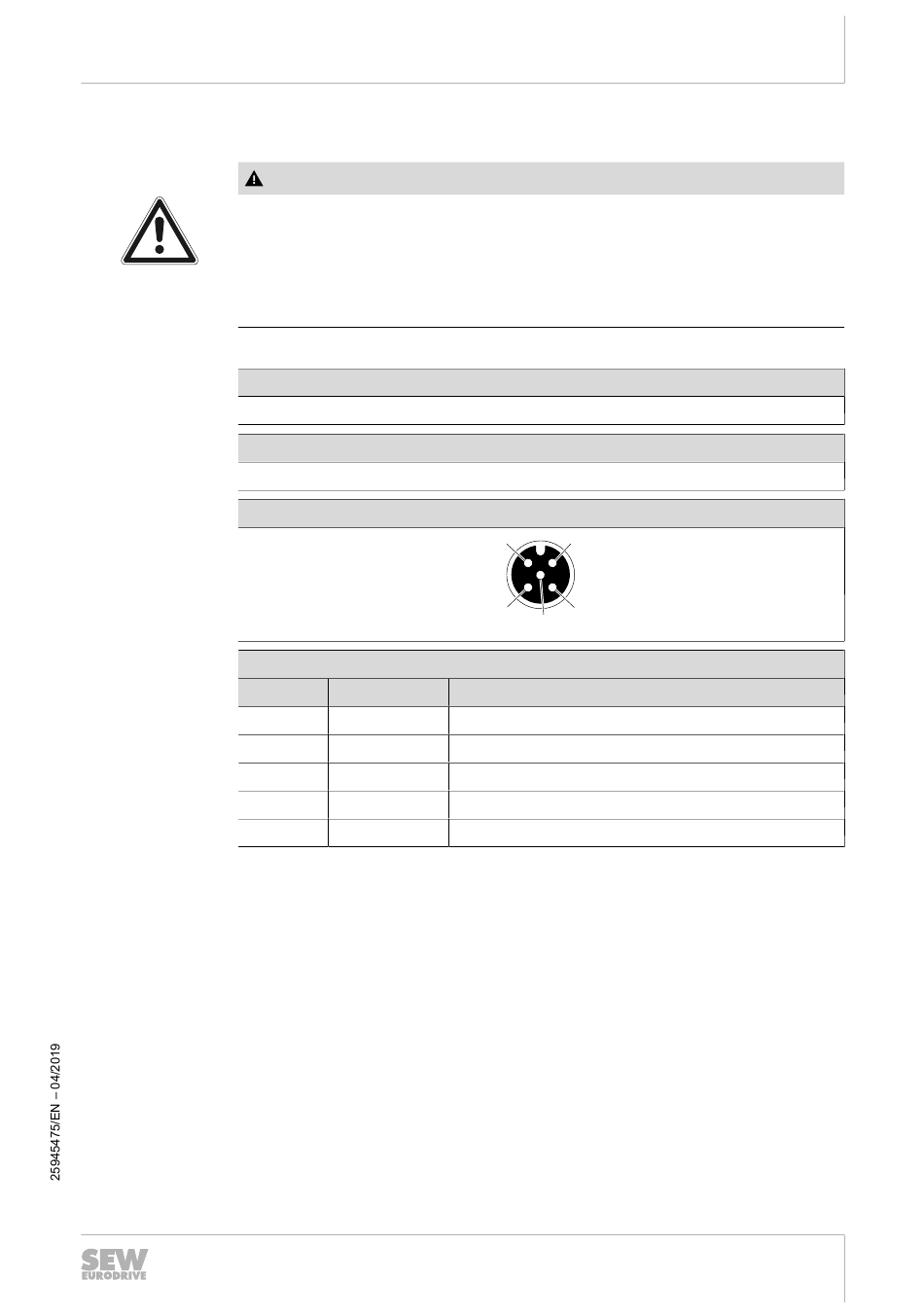

5.10.2 X5504: STO (3 cores)
No safe disconnection of the device.
Severe or fatal injuries.
•
•
The following table shows information about this connection:
Function
Connection for safe torque off (STO, 3 cores)
Connection type
M12, 5‑pin, female, A‑coded, color: yellow
Connection diagram
Assignment
No.
1
2
3
4
5
WARNING
Do not use the 24 V output (pins 1 and 3) for safety-related applications.
Only jumper the STO connection with 24 V if the device does not have to fulfill
any safety function.
Name
24V_OUT
F_STO_P2
0V24_OUT
F_STO_P1
F_STO_M
Optional plug connector assignment
1 2
4
3
5
Function
DC 24 V auxiliary output
F_STO_P2 connection
0V24 reference potential for DC 24 V auxiliary output
F_STO_P1 connection
F_STO_M connection
