Electrical installation
5
Plug connector assignment at the electronics cover
5.11.5 X4233_2: Fieldbus/Ethernet interface, port 2
118
Operating Instructions – MOVIGEAR
The following table shows information about this connection:
Function
Fieldbus/Ethernet interface, port 2
Connection type
M12, 4‑pin, female, D‑coded, color: black

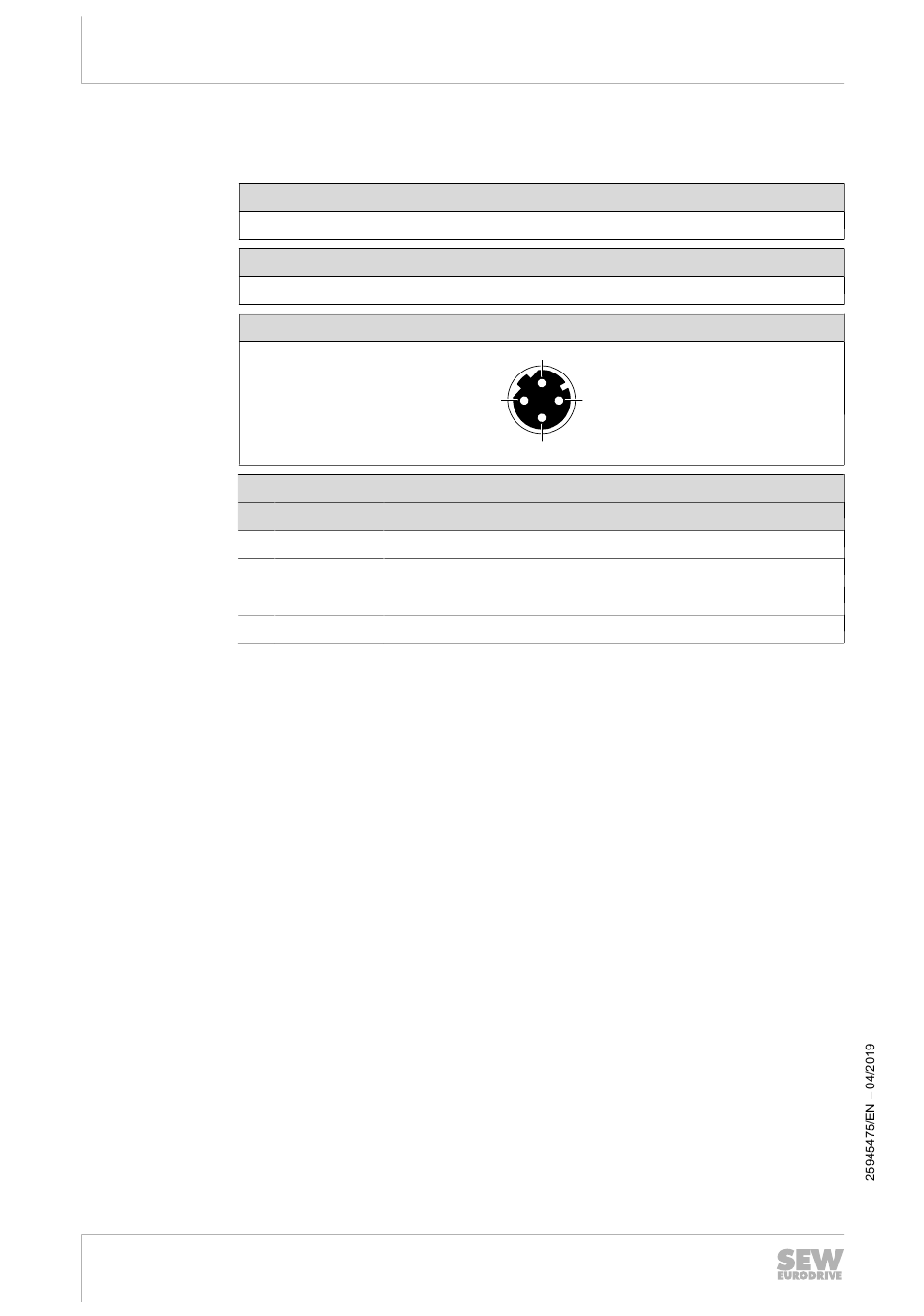

Connection diagram
Assignment
No. Name Function
1 TX+ Transmit line (+)
2 RX+ Receive line (+)
3 TX- Transmit line (-)
4 RX- Receive line (-)
®
performance
2
1 3
4
