Connection to X31 (RJ10 in the connection box)
NOTICE
Connector X31 provides a 24 V supply voltage for operating the connected options.
Damage to connected options with low nominal voltage.
•
•
[1]
[2]
[3]
Only connect options with a nominal voltage of 24 V to connector X31, such as:
– Interface adapter USM21A,
– CBG.. keypad
Do not connect the following options with 5 V nominal voltage to the X31 con-
nector:
– Interface adapters USB11A, UWS11A, UWS21A
– Keypads DBG.., GBG21A.

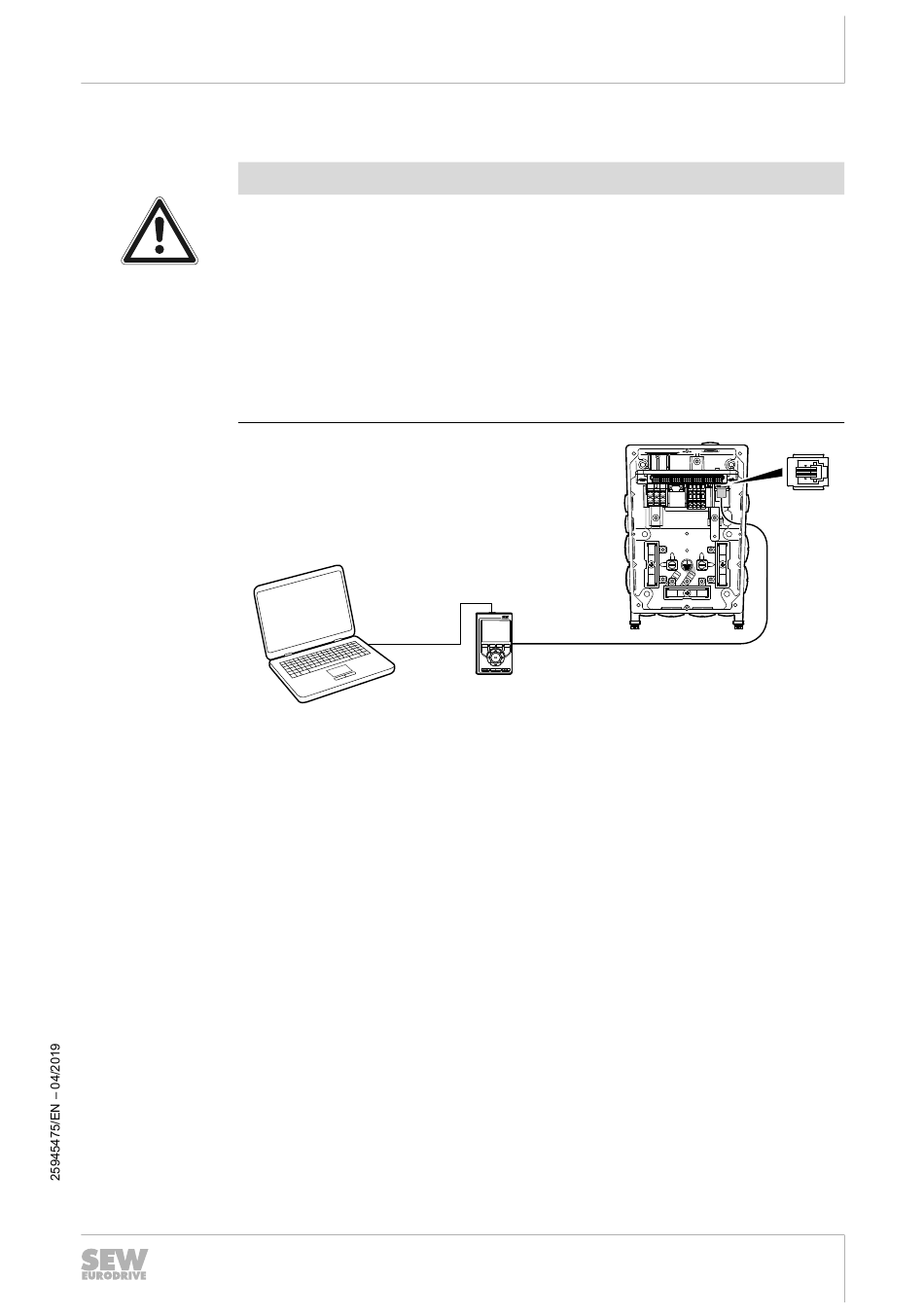

USB [1]
Connection cable USB A/USB 2.0 Mini B
(available for delivery from SEW‑EURODRIVE, part number: 25643517)
CBG21A or CBG11A keypad
D-sub/RJ10 connection cable
(available for delivery from SEW‑EURODRIVE, part number: 28117832)
Electrical installation
[2]
[2]
[3]
Operating Instructions – MOVIGEAR
5
PC connection
