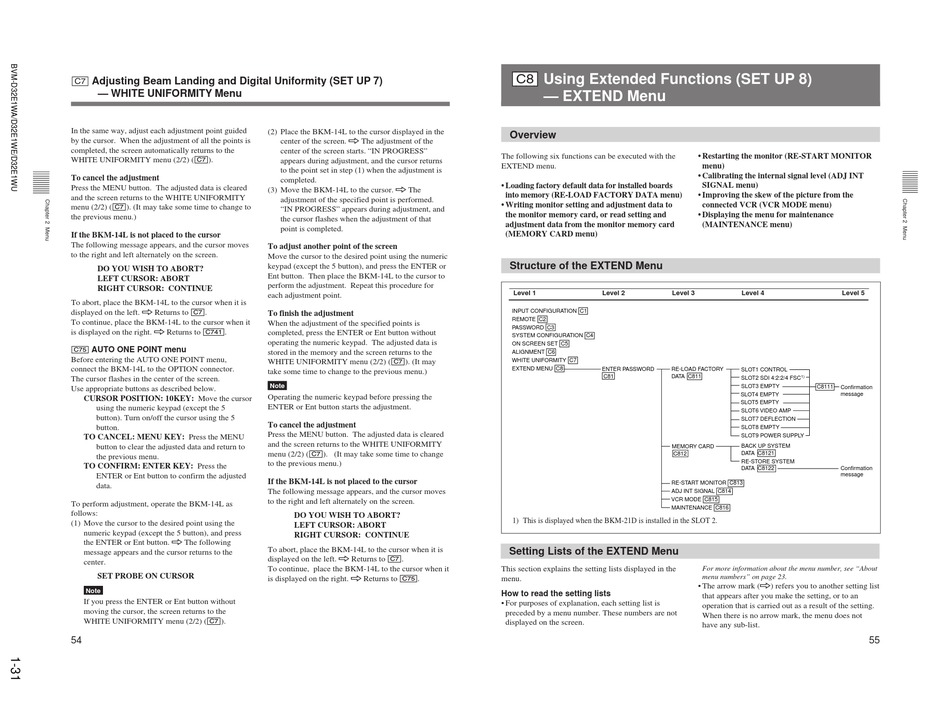

[C7] Adjusting Beam Landing and Digital Uniformity (SET UP 7)
— WHITE UNIFORMITY Menu
In the same way, adjust each adjustment point guided
by the cursor. When the adjustment of all the points is
completed, the screen automatically returns to the
WHITE UNIFORMITY menu (2/2) ([C7]).
To cancel the adjustment
Press the MENU button. The adjusted data is cleared
and the screen returns to the WHITE UNIFORMITY
menu (2/2) ([C7]). (It may take some time to change to
the previous menu.)
If the BKM-14L is not placed to the cursor
The following message appears, and the cursor moves
to the right and left alternately on the screen.
DO YOU WISH TO ABORT?
LEFT CURSOR: ABORT
RIGHT CURSOR: CONTINUE
To abort, place the BKM-14L to the cursor when it is
displayed on the left. ÷ Returns to [C7].
To continue, place the BKM-14L to the cursor when it
is displayed on the right. ÷ Returns to [C741].
[C75] AUTO ONE POINT menu
Before entering the AUTO ONE POINT menu,
connect the BKM-14L to the OPTION connector.
The cursor flashes in the center of the screen.
Use appropriate buttons as described below.
CURSOR POSITION: 10KEY: Move the cursor
using the numeric keypad (except the 5
button). Turn on/off the cursor using the 5
button.
TO CANCEL: MENU KEY: Press the MENU
button to clear the adjusted data and return to
the previous menu.
TO CONFIRM: ENTER KEY: Press the
ENTER or Ent button to confirm the adjusted
data.
To perform adjustment, operate the BKM-14L as
follows:
(1) Move the cursor to the desired point using the
numeric keypad (except the 5 button), and press
the ENTER or Ent button. ÷ The following
message appears and the cursor returns to the
center.
SET PROBE ON CURSOR
Note
If you press the ENTER or Ent button without
moving the cursor, the screen returns to the
WHITE UNIFORMITY menu (2/2) ([C7]).
54
(2) Place the BKM-14L to the cursor displayed in the
center of the screen. ÷ The adjustment of the
center of the screen starts. "IN PROGRESS"
appears during adjustment, and the cursor returns
to the point set in step (1) when the adjustment is
completed.
(3) Move the BKM-14L to the cursor. ÷ The
adjustment of the specified point is performed.
"IN PROGRESS" appears during adjustment, and
the cursor flashes when the adjustment of that
point is completed.
To adjust another point of the screen
Move the cursor to the desired point using the numeric
keypad (except the 5 button), and press the ENTER or
Ent button. Then place the BKM-14L to the cursor to
perform the adjustment. Repeat this procedure for
each adjustment point.
To finish the adjustment
When the adjustment of the specified points is
completed, press the ENTER or Ent button without
operating the numeric keypad. The adjusted data is
stored in the memory and the screen returns to the
WHITE UNIFORMITY menu (2/2) ([C7]). (It may
take some time to change to the previous menu.)
Note
Operating the numeric keypad before pressing the
ENTER or Ent button starts the adjustment.
To cancel the adjustment
Press the MENU button. The adjusted data is cleared
and the screen returns to the WHITE UNIFORMITY
menu (2/2) ([C7]). (It may take some time to change
to the previous menu.)
If the BKM-14L is not placed to the cursor
The following message appears, and the cursor moves
to the right and left alternately on the screen.
DO YOU WISH TO ABORT?
LEFT CURSOR: ABORT
RIGHT CURSOR: CONTINUE
To abort, place the BKM-14L to the cursor when it is
displayed on the left. ÷ Returns to [C7].
To continue, place the BKM-14L to the cursor when it
is displayed on the right. ÷ Returns to [C75].
[C8]
Using Extended Functions (SET UP 8)
— EXTEND Menu

Overview

The following six functions can be executed with the
EXTEND menu.
• Loading factory default data for installed boards
into memory (RE-LOAD FACTORY DATA menu)
• Writing monitor setting and adjustment data to
the monitor memory card, or read setting and
adjustment data from the monitor memory card
(MEMORY CARD menu)

Structure of the EXTEND Menu

Level 1 Level 2 Level 3
INPUT CONFIGURATION C1
REMOTE C2
PASSWORD C3
SYSTEM CONFIGURATION C4
ON SCREEN SET C5
ALIGNMENT C6
WHITE UNIFORMITY C7
EXTEND MENU C8
ENTER PASSWORD RE-LOAD FACTORY
C81 DATA C811
MEMORY CARD
C812
RE-START MONITOR C813
ADJ INT SIGNAL C814
VCR MODE C815
MAINTENANCE C816
1) This is displayed when the BKM-21D is installed in the SLOT 2.

Setting Lists of the EXTEND Menu

This section explains the setting lists displayed in the
menu.
How to read the setting lists
• For purposes of explanation, each setting list is
preceded by a menu number. These numbers are not
displayed on the screen.
• Restarting the monitor (RE-START MONITOR
menu)
• Calibrating the internal signal level (ADJ INT
SIGNAL menu)
• Improving the skew of the picture from the
connected VCR (VCR MODE menu)
• Displaying the menu for maintenance
(MAINTENANCE menu)
Level 4 Level 5
SLOT1 CONTROL
1)
SLOT2 SDI 4:2:2/4 FSC
SLOT3 EMPTY
C8111 Confirmation
message
SLOT4 EMPTY
SLOT5 EMPTY
SLOT6 VIDEO AMP
SLOT7 DEFLECTION
SLOT8 EMPTY
SLOT9 POWER SUPPLY
BACK UP SYSTEM
DATA C8121
RE-STORE SYSTEM
DATA C8122 Confirmation
message
For more information about the menu number, see "About
menu numbers" on page 23.
• The arrow mark (÷) refers you to another setting list
that appears after you make the setting, or to an
operation that is carried out as a result of the setting.
When there is no arrow mark, the menu does not
have any sub-list.
55
