Eicon Networks Diva Server Series Installation Manual page 39

Diva Server V-2PRI and Diva Server V-4PRI

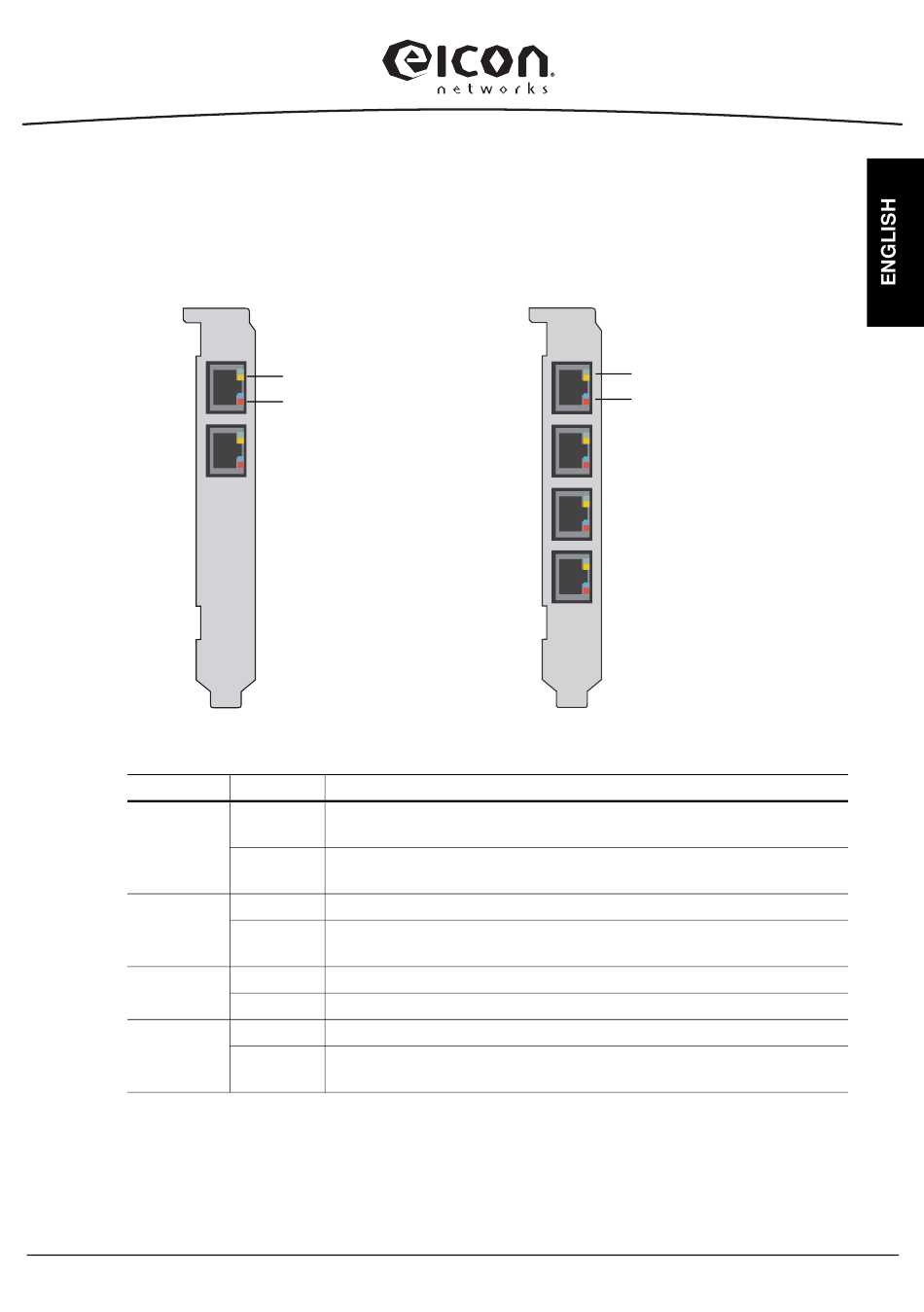

Diva Server V-2PRI and V-4PRI adapters have two multifunctional LEDs for each
port as shown:
The table below describes the function of each LED:
Color
green
yellow
red
blue
VoIPon www.voipon.co.uk
Diva Server V-2PRI/E1/T1
green or yellow
blue or red
Status Description
off Layer 2 is not active. Check your layer 2 configuration, i.e. switch
type, switch etc.
lit Layer 2 is active. If your adapter works properly, layer 2 is always
active.
off Normal operation.
lit Remote site is experiencing synchronization problems (if a remote
alarm/yellow alarm is detected).
off Normal operation.
lit The receiver does not detect a signal (loss of signal/red alarm).
off Normal operation.
lit Received frames are not synchronized properly (alarm indication
signal/blue alarm).
sales@voipon.co.uk
Diva Server V-4PRI/E1/T1
Troubleshooting
Tel: +44 (0)1245 808195
green or yellow
blue or red
Fax: +44 (0)1245 600030
39
