(B) Connect your Diva Server adapter
How you connect your adapter depends on the type of Diva Server adapter you
have:
• To connect a Diva Server BRI adapter, follow the instructions below.
• To connect a Diva Server PRI adapter, follow the instructions on page 26.
• To connect a Diva Server Analog adapter, follow the instructions on page 30.
Connect your Diva Server BRI adapter
Note: If you plan to use your Diva Server BRI adapter as network termination for
back-to-back operation or connection to PBX networks, go to page 25.
In Europe and most countries worldwide:
In Europe as well as most countries except North America and Japan, connect
your ISDN line using the cable included with your Diva Server adapter.

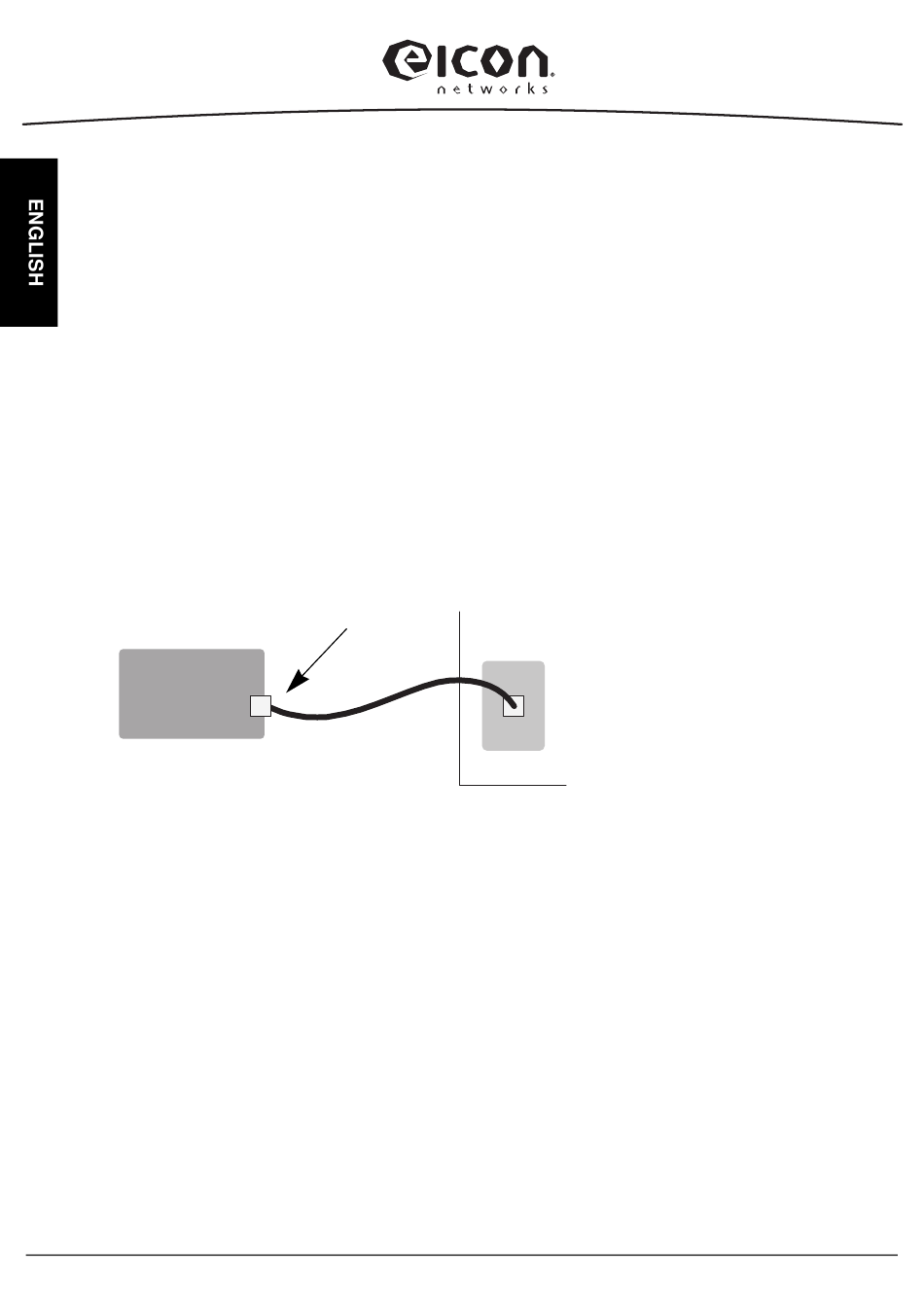

1. Take the cable included with the
adapter and plug one end into the
adapter.
Diva Server
BRI adapter
In North America, Japan and some other countries:
In North America, Japan and a few other countries, you need an NT1 to connect
your ISDN line. You can order an NT1 from Eicon Networks or from another
supplier. Make sure that a power supply is available for the NT1 of this line.
Usually, a PBX is installed in the same area as the NT1 and the service provider
can use the power supply of the PBX for the ISDN line as well. If this is not the
case, you have to order a combo device from your service provider. This device
consists of an installation rack into which an NT1 module and a power supply
module is mounted.
24
VoIPon www.voipon.co.uk
2. Plug the other end into the ISDN
Installation
sales@voipon.co.uk
ISDN wall jack with NT
wall jack.
