If the ISDN PRI or T1 line is installed with an RJ45 jack:
Use the supplied RJ45 to RJ45 cable:
Diva Server PRI Adapter
Pin 1
Pin 2
Pin 4
Pin 5
shielded plug
Note: For E1 Mode with 75 Ohm impedance, use an external 75 Ohm Balun
Adapter. You can purchase such an adapter from specialized stores.

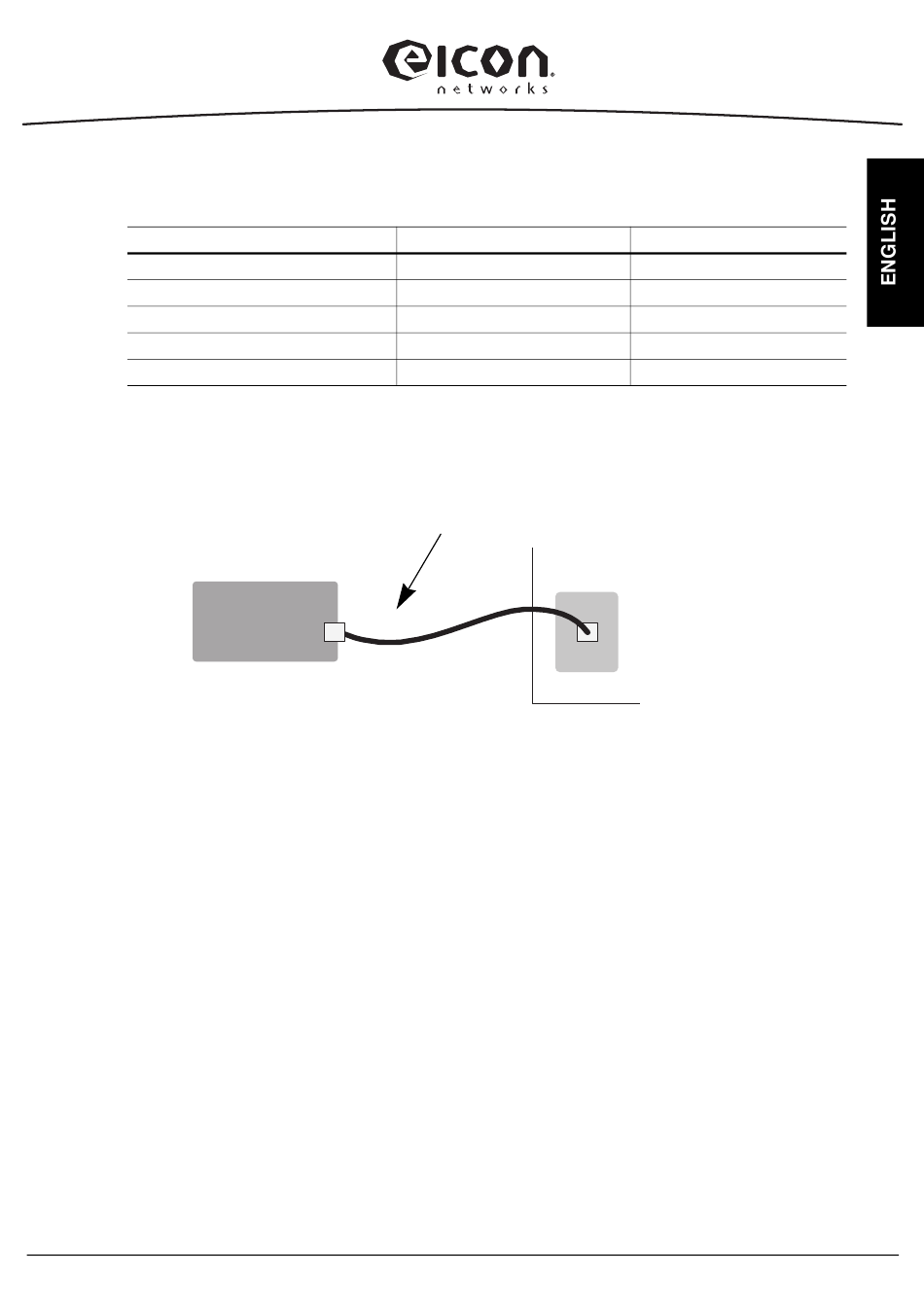

Connect your ISDN PRI, E1, or T1 line as shown:
1. Take the cable included with the
adapter and plug one end into the
adapter.
Note for all Diva Server V-2PRI/E1/T1 and V-4PRI/E1/T1 adapters:
Diva Server V-2PRI adapters have two ports and Diva Server V-4PRI adapters
have four ports for connecting to two or four separate ISDN PRI, E1, or T1 lines.
Connect all two or four cables as described above. You can use any port; typically,
you must specify the port number during software configuration. The port numbers
are shown on the next page. The diagram is oriented with the edge connector
pointing downwards.
VoIPon www.voipon.co.uk
Diva Server
PRI adapter
sales@voipon.co.uk
Signals
Receive + (RX +)
Receive - (RX -)
Transmit + (TX +)
Transmit - (TX -)
overall shielded
ISDN wall jack, NT, or CSU
2. Plug the other end into the NT,
CSU, or wall jack.
Installation
Tel: +44 (0)1245 808195
RJ45 Terminal
Pin 1
Pin 2
Pin 4
Pin 5
shielded plug
