Eicon Networks Diva Server Series Installation Manual page 34

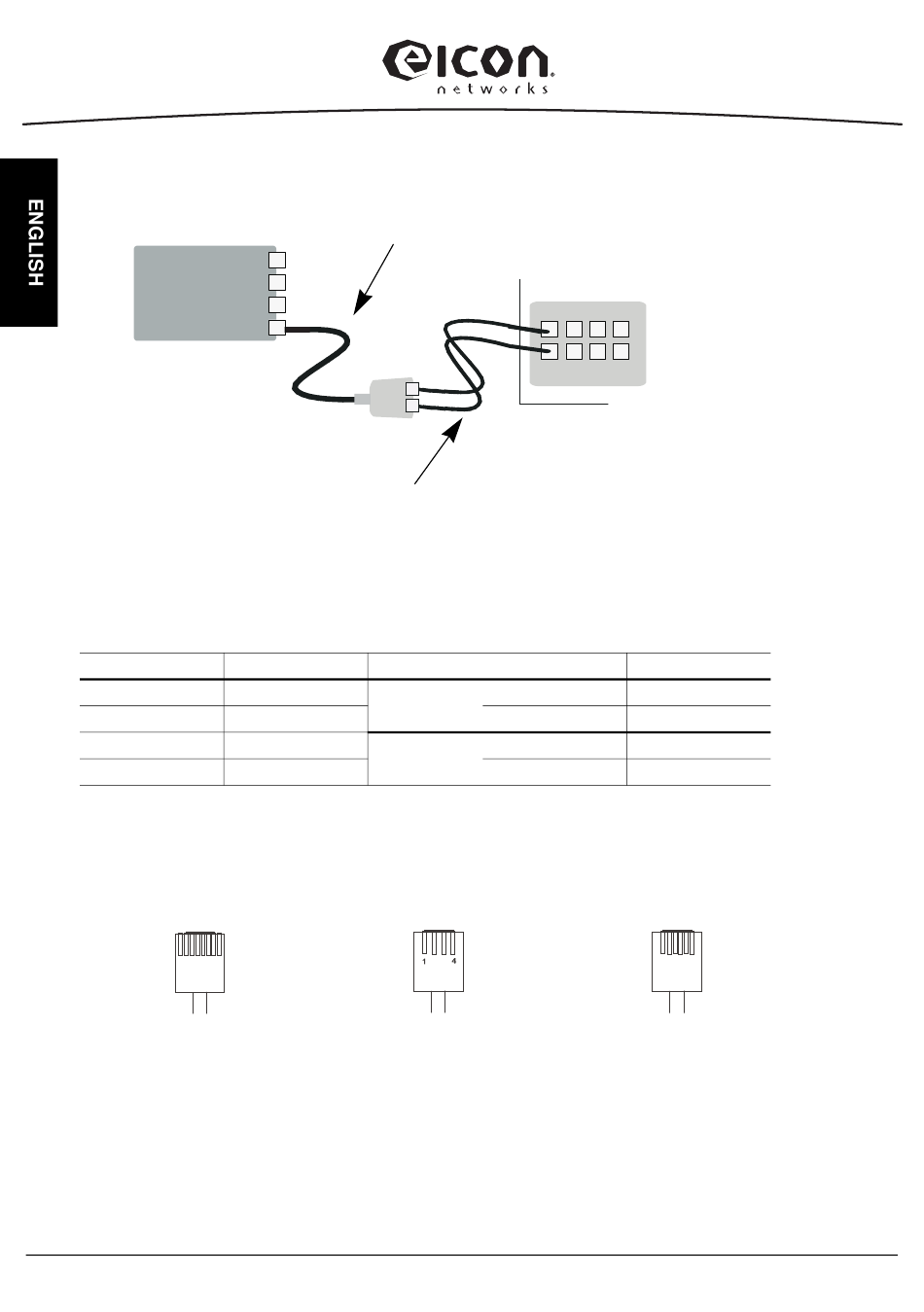

Connect your Diva Server Analog-8 or V-Analog-8P adapter as follows:
1. Take the four cables with the dongle and plug the
RJ45 connectors into the adapter.
Diva Server
Analog
adapter
2. Take the eight cables and plug
the RJ10 connectors into the
dongle. The jack labeled with 'A'
corresponds to the ports 1,3,5,
and 7. The jack labeled with 'B'
corresponds to the ports 2,4,6,
and 8.
Contact assignments (plugs and jacks):
RJ45
Pin 1
Pin 2
Pin 7
Pin 8
Note: Looking at the RJ45, RJ10, and RJ11 connectors with the exposed
connector pins facing you, the pins are numbered from 1 to 8, 1 to 4, and 1 to 6
from left to right as shown below.
RJ45 connector
1
34
VoIPon www.voipon.co.uk
Signals Dongle with RJ10 jacks
Ring
Port A
Tip
Tip
Port B
Ring
RJ10 connector
8
sales@voipon.co.uk
Wall jack or PBX
3. Plug the RJ11 connectors
into the wall jack or PBX.
Pin 2
Pin 3
Pin 3
Pin 2
Installation
Tel: +44 (0)1245 808195
RJ11
Pin 3
Pin 4
Pin 4
Pin 3
RJ11 connector
1 6
