Connect your Diva Server Analog adapter
Use the cables included with the adapter. How you connect your adapter depends
on the adapter type:
• To connect a Diva Server Analog-2P adapter follow the instructions below.
• To connect a Diva Server Analog-4P or Diva Server V-Analog-4P adapter follow
the instructions on page 32.
• To connect a Diva Server Analog-8P or Diva Server V-Analog-8P follow the
instructions on page 33.
Important: Use only certified telecommunications cables with No. 26 AWG
(American Wire Gauge) or higher with this equipment to ensure proper functioning
of the adapter.
Diva Server Analog-2P adapter:

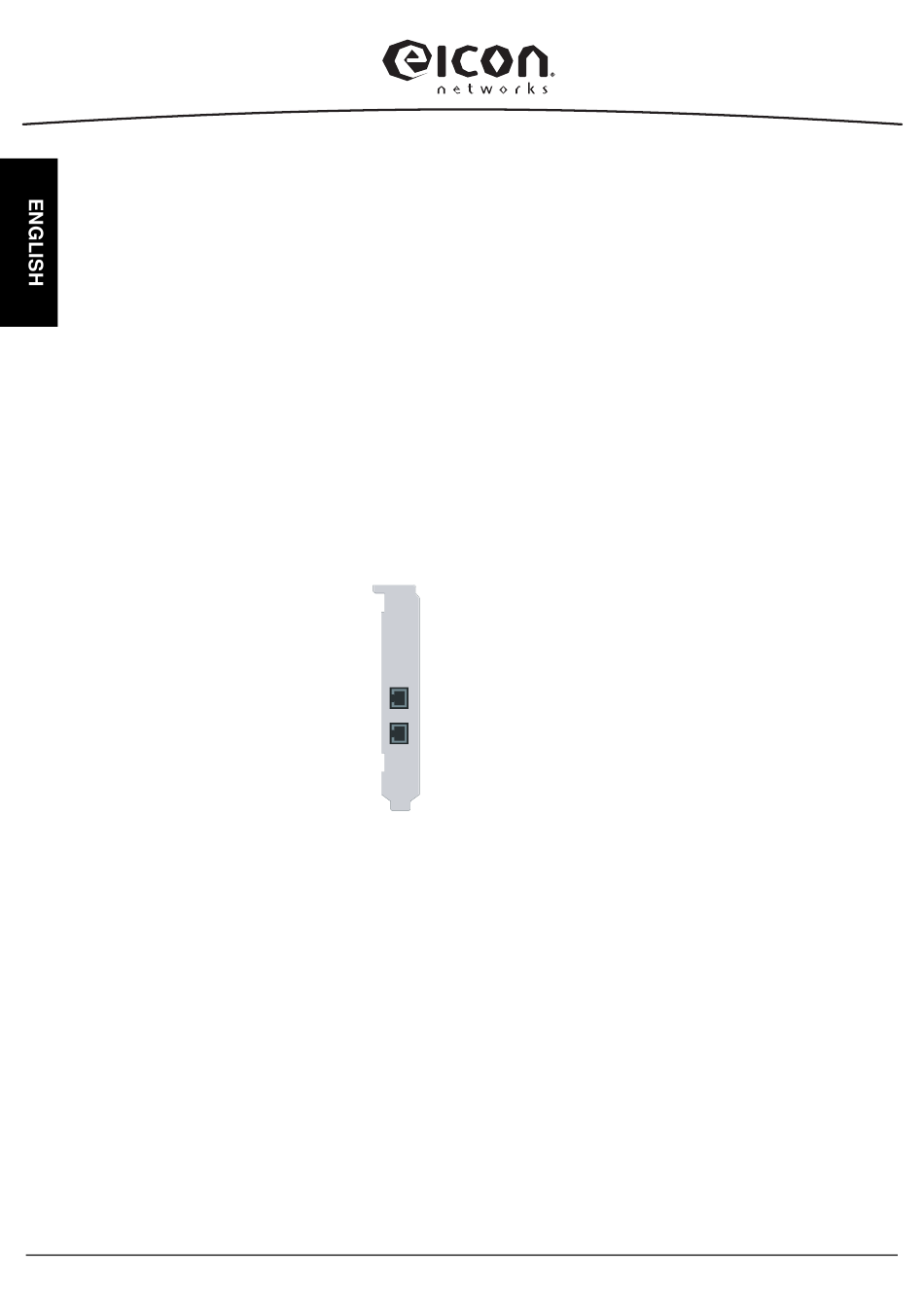

The Diva Server Analog-2P adapters have two RJ10 ports for connecting two
separate analog lines. You can use any port; typically, you must specify the port
number during software configuration. The port numbers are shown below. The
diagram is oriented with the edge connector pointing downwards.
30
VoIPon www.voipon.co.uk
Port 1
Port 2
