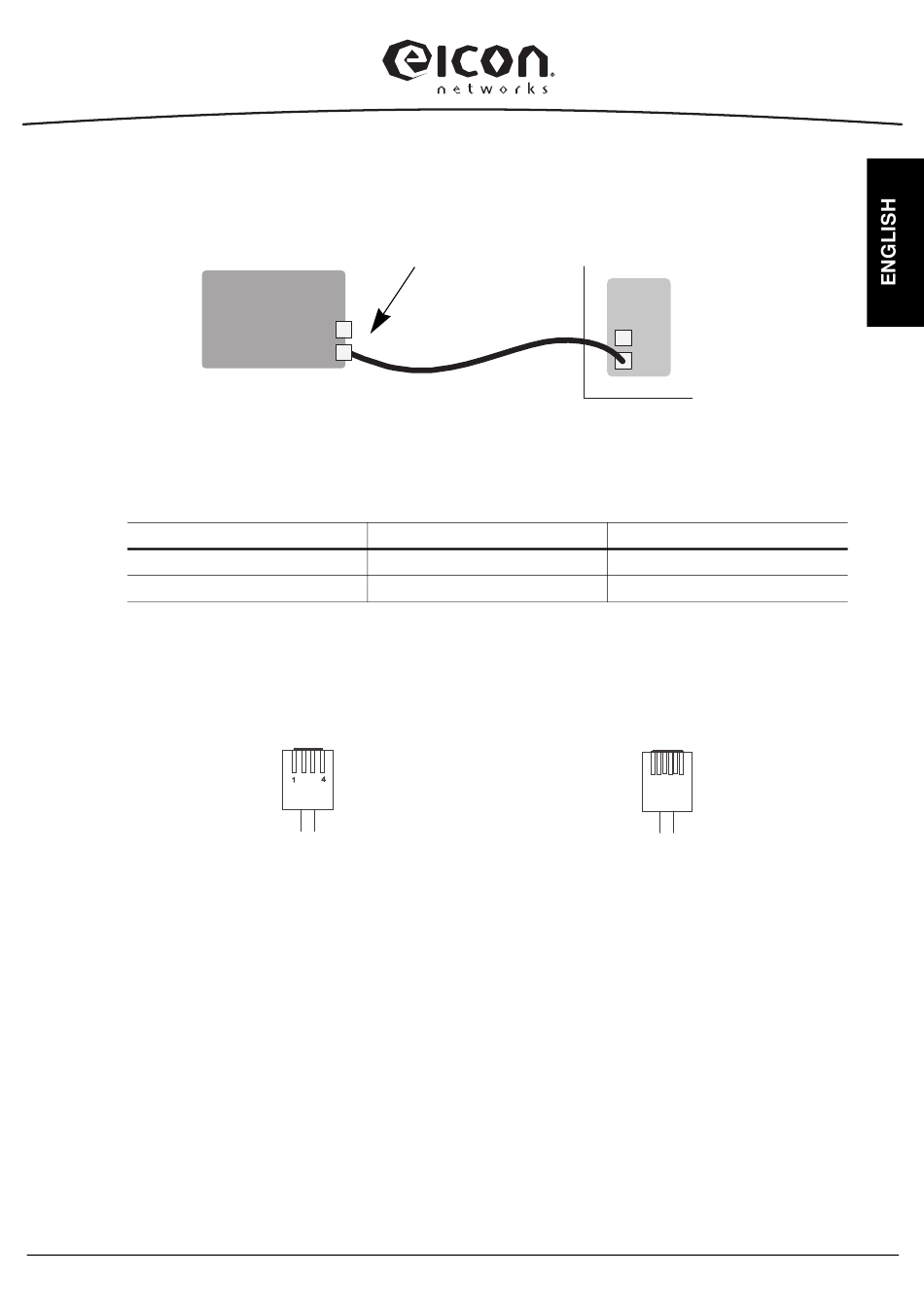

Connect your Diva Server Analog-2P adapter as follows:
1. Take the two cables included with the
adapter and plug the RJ10 connectors
into the adapter.
Contact assignments (plugs and jacks):
RJ10
Pin 2
Pin 3
Note: Looking at the RJ10 and RJ11 connector with the exposed connector pins
facing you, the pins are numbered from 1 to 4 and 1 to 6 from left to right as shown
below.
VoIPon www.voipon.co.uk
Diva Server
Analog
adapter
Signals
Ring
Tip
RJ10 connector
sales@voipon.co.uk
Wall jack or PBX
2. Plug the RJ11 connectors into the wall
jack or PBX.
Installation
Tel: +44 (0)1245 808195
RJ11
Pin 3
Pin 4
RJ11 connector
6
1
