STOP SWITCH INSPECTION

Remove the stop switch (page 7-3).
Check for continuity between the stop switch 4P
connector terminals shown in the table below.
RH stop switch
Terminal
1 (Black)
2 (White)
LH stop switch
Terminal
3 (Black)
4 (White)
7-6
Switch position
OFF ON
No
Continuity
Continuity
Switch position
OFF ON
No
Continuity
Continuity

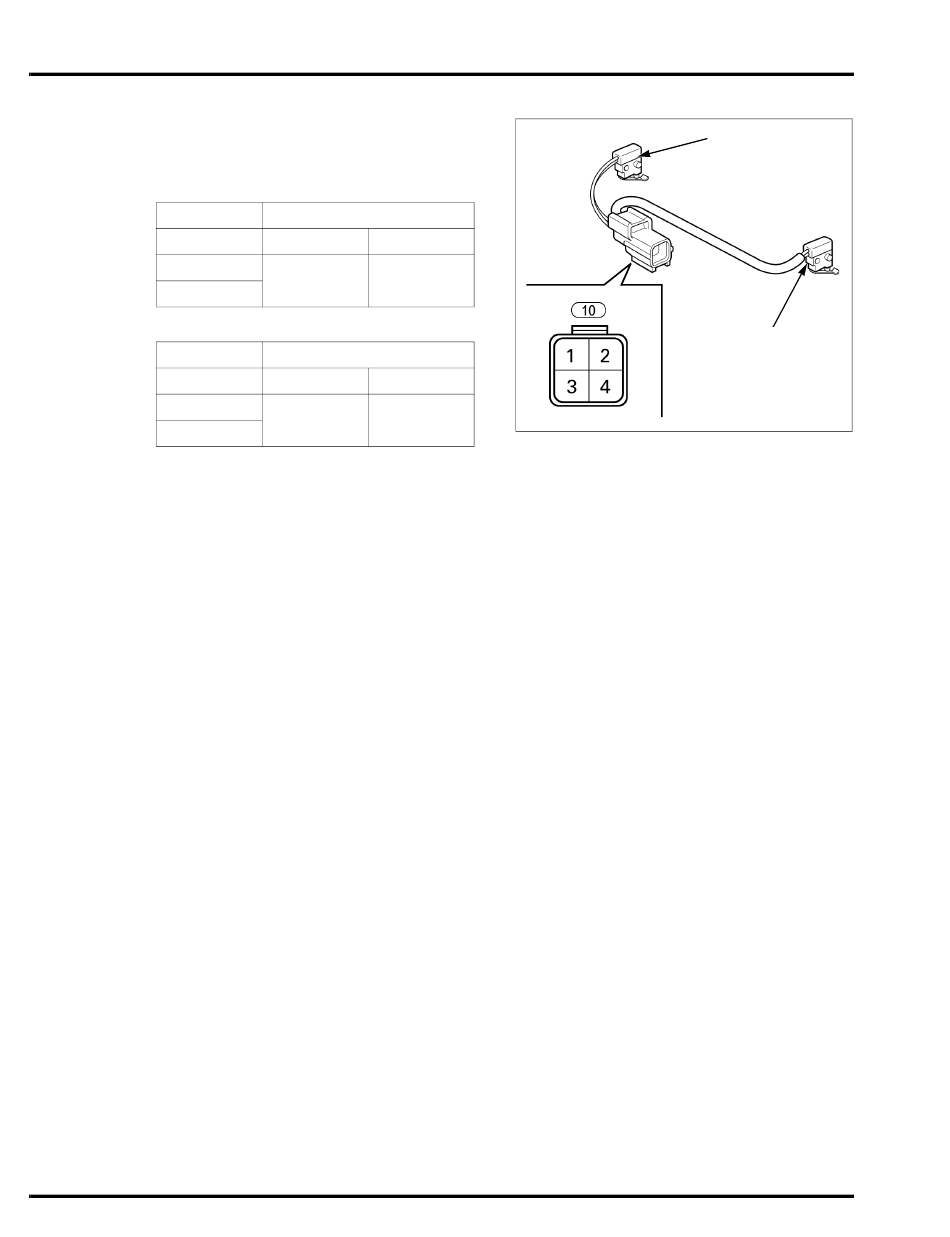

RH STOP SWITCH
LH STOP SWITCH
