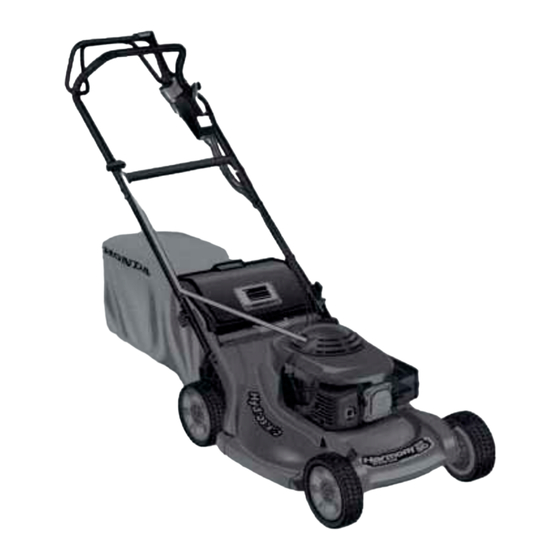

Summary of Contents for Honda HRB215K3PDA Harmony
-
Page 4: Important Safety Information
INTRODUCTIONI . A FEW WORDS ABOUT SAFETY Your safety, and the safety of others, are very important. And using this lawn mower safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures and other information on labels and in this manual. - Page 5 ..... . 75 Additional information, Honda publications available to you, warranty, and how to contact us if you have a question or a warranty repair problem.
- Page 7 MOWER SAFETY This chapter explains what you need to know to operate your mower safely. IMPORTANT SAFETY INFORMATION ....Avoid Rotating Blades......Clear Mowing Area ......Keep Shields in Place ......Refuel with Care ....... Wear Protective Clothing......Turn Engine Off When Not Mowing.
-
Page 8: Avoid Rotating Blades
MOWER SAFETY IMPORTANT SAFETY INFORMATION Most accidents with walk-behind mowers can be prevented if you follow all instructions in this manual and on the mower. The most common hazards, according to accident statistics, are discussed below, along with the best way to protect yourself and others. Avoid Rotating Blades Rotating blades can cause serious cuts and even amputate fingers, hands, toes, or feet. - Page 9 MOWER SAFETY IMPORTANT MESSAGE TO PARENTS YOUR CHILDREN’S SAFETY IS VERY IMPORTANT to Honda. That’s why we urge you to read this message before letting your youngster operate this lawn mower. Lawn mowers are tools, not toys. As with any equipment, bad judgments can result in serious injuries.
-
Page 10: Safety Label Locations
The labels shown here contain important safety information. Please read them carefully. These labels are considered permanent parts of your mower. So if a label comes off or becomes hard to read, contact an authorized Honda dealer for a replacement. (HRB215) UNDER NORMAL USAGE, THIS GAG MATERIAL... -
Page 11: Table Of Contents
CONTROLS This chapter shows the locations of controls and other important parts of your mower, and it tells you how the controls work....COMPONENT iDENTiFiCATiON DESCRIPTION OF CONTROLS....FuelValve ........ThrottleLever ......... Flywheel Brake Lever ......Drive Clutch Lever (SDA)......Shift Lever (SDA). -
Page 12: Component Identification
CONTROLS COMPONENT IDENTIFICATION DRIVE CLUTCH FLYWHEEL BRAKE LEVER LEVER (SIDA) ’ HANDLEBAR SHIFT LEVER THROlTLE LEVER DISCHARGE GUARD J-N -\ FUEL TANK CAP GRIP GRASS BAG (HRB215) REAR CUlTING HEIGHT ADJUSTMENT LEVER OIL FILLER CAP MUFFLER’ FRONT CUlTlNG HEIGHT ADJUSTMENT LEVERS MOWER DECK HRB215K3PDA:... - Page 13 CONTROLS FLYWHEEL BRAKE LEVER FRAME SERIAL NUMBER ENGINE SERIAL NUMBER (on back of engine) SPARK PLUG CAP REAR CUlTlNG HEIGHT ADJUSTMENT LEVER CARBURETOR FRONT &iNG HEIGHT ADJUSTMENT LEVERS Record the frame and engine serial numbers in the space below. You will need these serial numbers when ordering parts and when making technical or warranty inquiries (see page 84).
-
Page 14: Description Of Controls
CONTROLS DESCRIPTION OF CONTROLS Fuel Valve The fuel valve opens and closes the fuel passage from the fuel tank to the carburetor. Throttle Lever For starting a cold engine. CHOKE FAST- - - - For restarting a warm engine and for mowing. SLOW - - - For idling the engine. -
Page 15: Flywheel Brake Lever
CONTROLS Flywheel Brake Lever This lever is connected to the engine flywheel brake and the ignition switch. The engine will not start unless this lever is pushed forward. FLYWHEEL BRAKE LEVER Drive Clutch Lever (SDA) The drive clutch lever engages and disengages the transmission that drives the rear wheels. -
Page 16: Shift Lever (Sda)
CONTROLS Shift Lever (SDA) The shift lever selects and controls the mower’s drive speed. 1 (slow) -For mowing thick grass or maneuvering in small areas. 2 (medium) -For intermediate self-propelled mowing speed. 3 (fast) -For maximum self-propelled transport speed. Cuttlng Height Adjustment Levers There are six settings to choose from, as shown in the illustration. - Page 17 BEFORE OPERATION This chapter explains how to fuel and check your mower to be sure it is ready, and it tells you how to prepare your lawn and yourself before you begin mowing. ARE YOU READY TO MOW? ...... CHECK YOUR LAWN ......Objects ........
-
Page 18: Wear Protective Clothing
BEFORE OPERATION ARE YOU READY TO MOW? Be sure to wear protective clothing. Long pants and eye protection can lower your risk of injury from thrown objects. Wear footwear that protects your feet and won’t let you slip if you mow on slopes or uneven ground. -
Page 19: Check Your Mower
Honda servicing dealer. Or, if you have a torque wrench, you can remove and install the blade(s) yourself (see pages 56 - 57). Check that the blade bolts are tight (see page 57). -
Page 20: Engine Oil Level
Englne Oil Level Check the engine oil level with the engine stopped and the mower on a level surface. 1. Remove the oil filler cap, and wipe the dipstick clean. 2. Insert and remove the dipstick without screwing it into the filler neck. -
Page 21: Fuel
BEFORE OPERATION Fuel Fuel tank capacity: 0.26 US gal (1.0 a) Refuel in a well-ventilated area before starting the engine. If the engine has been running, allow it to cool. Refer to page 51 for fuel recommendations and page 85 for information about oxygenated fuels. -
Page 22: Air Cleaner Inspection
BEFORE OPERATION Air Cleaner Inspection Check that the air filters are clean and in good condition. Dirty air filters will restrict air flow to the carburetor, reducing engine performance. Refer to page 47 for air cleaner service. AIR CLEANER HOUSING PAPER FILTER FOAM FILTER =a--... -
Page 23: Handlebar Height Adjustment
BEFORE OPERATION Handlebar Height Adjustment Adjust handlebar height for a comfortable operating position. 1. Loosen the handlebar locking knobs. 2. Spread the lower ends of the handlebars to release the locating pins. 3. Move the handlebar up or down, so the locating pins engage the other holes on the handlebar mounting brackets. -
Page 24: Grass Bag (Hrb215)
BEFORE OPERATION Grass Bag (HRB215) A lawn mower works like a vacuum cleaner; it blows air through the bag, which traps the grass clippings. Always empty the grass bag before it becomes filled to the limit of its capacity. Bagging performance will diminish after the bag becomes about 90% filled. -
Page 25: Mulching Plug (L-Frm215)
BEFORE OPERATION Mulching Plug (HRM215) DISCHARGE GUARD The mulching plug contours the mower deck for efficient mulching. You can quickly remove the plug to install a grass bag or side-discharge chute, which are available as optional equipment. Raise the discharge guard to remove or install the mulching plug. - Page 27 This chapter tells you how to operate the mower safely and effectively......MOWING PRECAUTIONS THE ENGINE ......STARTING ..OPERATING THE CONTROLS FOR MOWING. Throttle Lever ........Flywheel Brake Lever ......Drive Clutch Lever (SDA)......Shift Lever (SDA)............
-
Page 28: Mowing Precautions
OPERATION MOWING PRECAUTIONS Before operating the mower for the first time, please review the IMPORTANT SAFETY INFORMATION beginning on page 6 and the previous chapter, titled BEFORE OPERA T/ON. Even if you have operated other mowers, take time to become familiar with how this mower works and practice in a safe area until you build up your skills. -
Page 29: Starting The Engine
OPERATION STARTING THE ENGINE The blade turns when you operate the starter. It is easiest to start the engine in a clear or mowed area where the blade can turn freely. 1. Turn the fuel valve to the ON position. 2. - Page 30 OPERATION 3. HRB215SDA & HRM215SDA: Release the drive clutch lever. If the drive clutch lever is engaged, the mower will move forward when you operate the starter. 4. Push forward on the flywheel brake lever and hold it against the handlebar.
-
Page 31: Operating The Controls For Mowing
OPERATION OPERATING THE CONTROLS FOR MOWING Throttle Lever For best cut quality, always mow with the throttle lever in the FAST position. When the blade(s) rotates at the preset fast speed, it creates a strong fan action that lifts and cuts grass more efficiently. Do not try to increase the preset engine speed, the blade could fracture and come apart. -
Page 32: Drive Clutch Lever (Sda)
OPERATION Drive Clutch Lever (SDA) Push the drive clutch lever forward and hold it against the handlebar to propel the mower forward. Release the drive clutch lever to . stop the mower’s forward movement. Always release the drive clutch DRIVE CLUTCH LEVER lever before starting the engine. -
Page 33: Stopping The Engine
OPERATION STOPPING THE ENGINE 1. Move the throttle lever to the SLOW position. THROTTLE LEVER 2. Release the flywheel brake lever and the drive clutch lever (SDA). . DRIVE CLUTCH FLYWHEEL BRAKE LEVER LEVER 3. When the mower is not in use, turn the fuel valve to the OFF position. -
Page 34: Safe Mowing Practices
OPERATION SAFE MOWING PRACTICES For your safety, keep all four wheels on the ground, and be careful to avoid losing your footing and your control of the mower. Keep a firm grip on the handlebar, and walk, never run, with the mower. Be very careful when mowing uneven or rough ground. -
Page 35: Obstacles
OPERATION Obstacles Use the side of the mower to cut close to large obstacles, such as fences or walls. Release the drive clutch lever to disengage the drive when mowing around trees and other obstacles. Push the mower around obstacles for better directional control. -
Page 36: Mowing Tips
OPERATION MOWING TIPS When to Mow Most grasses should be mowed when they have grown l/z to 1 inch above their recommended height. More frequent mowing is required for mulching than for bagging. For best results, you may need to mow the lawn twice a week during the growing season. -
Page 37: Blade Speed
An optional leaf shredder is available from an authorized Honda servicing dealer. If you want to mulch fallen leaves into your lawn, don’t let the leaf cover get too deep before you begin. For best results, start mulching while grass still shows through the leaf cover. -
Page 38: Mowing Patterns
OPERATION Mowing Patterns Your Honda mower will work most efficiently if you use the following mowing patterns as much as possible. Mower deck and equipment design, and the direction in which the blade rotates, cause these mowing patterns to give the best results. - Page 39 TRANSPORTING This chapter explains how to load and carry your mower safely. BEFORE LOADING ......38 LOADING AND UNLOADING.
- Page 40 TRANSPORTBNG BEFORE LOADING If the engine has been running, allow it to cool for at least 15 minutes before loading the mower on the transport vehicle. A hot engine and exhaust system can burn you and can ignite some materials. 1.
- Page 41 MAINTENANCE This chapter explains when and how to perform routine inspection, service, and adjustments for do-it-yourself maintenance. More difficult maintenance tasks should be done by your dealer. Your dealer is best equipped and staffed to provide the level of service and safety you and your mower deserve.
- Page 42 Other service tasks that are more difficult, or require special tools, are best handled by professionals and are normally performed by a Honda technician other qualified mechanic, The maintenance schedule applies to normal operating conditions.
- Page 43 Remember that an authorized Honda servicing dealer knows your mower best and is fully equipped to maintain and repair it. To ensure the best quality and reliability, use only new, genuine Honda parts or their equivalents...
- Page 44 The following instructions and procedures must be followed in order to keep the emissions from your Honda engine within the emission standards. Tampering and Altering Tampering with or altering the emission control system may increase emissions beyond the legal limit. Among those acts that constitute...
- Page 45 MAINTENANCE Replacement Parts The emission control systems on your new Honda engine were designed, built, and certified to conform with EPA and California emission regulations. We recommend the use of genuine Honda parts whenever you have maintenance done. These original-design...
- Page 46 These items should be serviced by an authorized Honda servicing dealer, unless you have the proper tools and are mechanically proficient. Refer to the Honda shop manual for service procedures. For commercial use, log hours of operation to determine proper maintenance intervals.
- Page 47 MAINTENANCE ENGINE MAINTENANCE Engine Oil Change Drain the used oil while the engine is warm. Warm oil drains quickly and completely. Turn the fuel valve to the OFF position to reduce the possibility fuel leakage (see page 31). Wipe the oil filler area clean, then remove the oil filler cap/dipstick. Place a suitable container next to the mower to catch the used oil, then tilt the mower on its...
- Page 48 The SAE oil viscosity and service classification are in the API label on the oil container. Honda recommends that you use API SERVICE category SH or SJ oil with the ILSAC “starburst” certification mark displayed...
- Page 49 MAINTENANCE Air Cleaner Service Dirty air filters will restrict air flow to the carburetor, reducing engine performance. If you operate the mower in very dusty areas, clean the air filters more often than specified in the MAINTENANCE SCHEDULE. pE?iEq Operating the engine without air filters, or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear.
- Page 50 MAINTENANCE 5. Wipe dirt from the inside of the air cleaner housing and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburetor. 6. Reinstall the filters and cover. Tighten the cover screw securely. Spark Plug Service RECOMMENDED SPARK PLUGS...
- Page 51 MAINTENANCE Remove the spark plug with a SPARK PLUG WRENCH 13/ls in (21 mm) spark plug wrench. Inspect the spark plug. Replace it if the electrodes are worn, or if the insulator is cracked or chipped. Clean the spark plug with a wire brush if you are going to reuse it.
- Page 52 High altitude performance can be improved by specific modifications to the carburetor. If you always operate your mower at altitudes above 5,000 feet (1,500 meters) have an authorized Honda servicing dealer perform this carburetor modification. Even with carburetor modification, engine horsepower will decrease about 3.5% for each 1 ,OOO-foot (300-meter)
- Page 53 If spark knock or pinging occurs at a steady engine speed, under normal load, change brands of gasoline. If spark knock or pinging persists, see an authorized Honda servicing dealer. Running the engine with persistent spark knock or pinging can cause engine damage.
- Page 54 Move the throttle to FAST. Release the flywheel brake lever; the engine should stop quickly. If the flywheel brake does not operate properly with the correct cable adjustment, take the mower to an authorized Honda servicing dealer for repair. FLYWHEEL BRAKE LEVER...
- Page 55 Check that the drive clutch engages and releases properly. If the drive clutch does not operate as it should, with correct cable adjustment, take the mower to an authorized Honda servicing dealer for repair. 1116 - 3/16 in (1-4mm) LOCK...
- Page 56 Check that the transmission shifts properly, and that the lever is approximately aligned with the number beside it. If the transmission does not shift as it should with correct cable adjustment, take the mower to an authorized Honda servicing dealer for repair.
- Page 57 4. If the choke arm does not move all the way to its stop, in either direction, take the mower to an authorized Honda servicing dealer. Throttle cable adjustment involves related control plate...
- Page 58 Honda servicing dealer. BLADE REPLACEMENT: Use genuine Honda replacement blade(s) or their equivalent. Blade Removal 1. Always turn the engine OFF and turn the fuel valve to the OFF position.
- Page 59 The blade bolts and special washers are specially designed for this application. When replacing bolts or washers, use only genuine Honda replacement parts. 3. Tighten the blade bolts with a torque wrench. Use a wooden block to prevent the blade(s) from turning when tightening the bolts.
- Page 60 Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly. Grass Bag Replacement Replace a worn or damaged bag with a Honda replacement bag or its equivalent. Bag Removal 1.
- Page 61 TROUBLESHOOTING This chapter shows what to check if you have a problem with your mower. ENGINE PROBLEMS ......Engine will not start ......Lossofpower ......... VIBRATION PROBLEMS ......MOWING AND BAGGING PROBLEMS....
- Page 62 (flooded engine). plug. Start engine with throttle lever in FAST oosition. Replace or repair faulty 4. Take mower to an Fuel filter clogged, authorized Honda carburetor malfunction, components as necessary. servicing dealer, or ignition malfunction, refer to shoe manual.
- Page 63 Replace damaged by improper sharpening. blade(s) (p. 56 - 57). 2. Take mower to an Mechanical damage, suck Replace or repair faulty authorized Honda as a bent crankshaft. components as necessaq servicing dealer for reDair. MOWING AND BAGGING PROBLEMS...
- Page 65 STORAGE This chapter explains how to protect your mower from rust and corrosion, and ensure that it will start easily when you want to use it again......STORAGE PREPARATION Cleaning ........Engine ........MowerDeck ............Grass Bag (HRB215). Fuel ........
-
Page 66: Storage Preparation
STORAGE STORAGE PREPARATION Proper storage preparation is essential for keeping your lawn mower troublefree and looking good. The following steps will help to keep rust and corrosion from impairing your lawn mower’s function and appearance, and will make the engine easier to start when you use the lawn mower again. - Page 67 STORAGE 3. With the mower in an upright position, start the engine outdoors, and let it run until it reaches normal operating temperature evaporate any water remaining on the engine. 4. Stop the engine and allow it to cool. 5. After the lawn mower is clean and dry, touch up any damaged paint, and coat other areas that may rust with a light film of oil.
-
Page 68: Fuel
STORAGE Fuel Gasoline will oxidize and deteriorate in storage. Old gasoline will cause hard starting, and it leaves gum deposits that clog the fuel system. If the gasoline in your mower deteriorates during storage, you may need to have the carburetor and other fuel system components, serviced or replaced. -
Page 69: Draining The Fuel Tank And Carburetor
STORAGE Draining the Fuel Tank and Carburetor 1. Remove the carburetor drain bolt with a IO mm wrench, and drain the carburetor bowl fuel into an approved container. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel. -
Page 70: Engine Cylinder
STORAGE Engine Cylinder Remove the spark plug (see page 49). Pour a tablespoon (5 - 10 cc) of clean engine oil into the cylinder. Pull the starter rope several times to distribute the oil in the cylinder. Reinstall the spark plug. Pull the starter rope slowly until resistance is felt then return the starter grip gently. -
Page 71: Handlebar Folding
STORAGE Handlebar Folding The handlebar can be folded for storage or transport by loosening the handlebar locking knobs. 1. Remove the grass bag, if so LOCKING KNOB equipped. You can place it on top of the engine, with the bag opening to the front. -
Page 72: Placing In Storage
STORAGE PLACING IN STORAGE If your mower will be stored with gasoline in the fuel tank and carburetor, it is important to reduce the hazard of gasoline vapor ignition. Select a well-ventilated storage area away from any appliance that operates with a flame, such as a furnace, water heater, or clothes dryer. - Page 73 SPECIFICATIONS This chapter gives dimensions, capacities, and other technical information. MOWER MODELS ......DIMENSIONS, WEIGHTS, AND CAPACITIES..ENGINE DESIGN AND PERFORMANCE .... TRANSMISSION DESIGN AND PERFORMANCE..MAINTENANCE ..............TUNEUP...
- Page 74 SPECIFICATIONS MOWER MODELS HRB215K3PDA: Manually propelled, high-lift blade and grass bag HRB215K3SDA: Self-propelled, high-lift blade and grass bag HRM215K3PDA: Manually propelled, mulching blades and mulching plug HRM215K3SDA: Self-propelled, mulching blades and mulching plug DIMENSIONS, WEIGHTS, AND CAPACITIES Handlebar high: 59-5/8 in (1,515 mm) Maximum Length (handlebar...
- Page 75 SPECIFICATIONS ENGINE DESIGN AND PERFORMANCE Engine Model GXVI 40Kl Engine Type 4-stroke, overhead-valve, single-cylinder, forced air-cooled Displacement 8.2 cu in (135 cc) Bore and Stroke 2.52 x 1.65 in (64 x 42 mm) Compression Ratio Ignition System Maximum Horsepower 5.0 bhp (3.7 kW) at 3,600 rpm Maximum Torque 7.6 ft-lb (10.3 N-m) at 2,700 rpm TRANSMISSION...
- Page 76 SPECIFICATIONS MAINTENANCE Fuel Unleaded gasoline with a pump See page 51. octane rating of 86 or higher Engine Oil SAE lOW-30, API SH or SJ See page 46. Transmission Oil (SDA) Grease (NLGI #2) See shop manual Spark Plug Type Regular: NGK - BP5ES DENS0 - WI GEP-U...
- Page 77 ADDITIONAL INFORMATION This chapter contains additional information, Honda publications available to you, warranty, and tells you how to contact us if you have a question or a warranty repair problem. HONDA PUBLICATIONS......76 ShopManual........
- Page 78 IlNFORMATlON HONDA PUBLICATIONS These publications will give you additional information for maintaining and repairing your mower. You may order them from your Honda lawn mower dealer. Shop Manual This manual covers complete maintenance and overhaul procedures. It is intended to be used by a skilled technician.
- Page 79 What American Honda will Repair or Replace Under Warranty: American Honda will repair or replace, at its option, any part that is proven to be defective in material or workmanship under normal use during the applicable warranty time period.
- Page 80 AGAINST DAMAGE, INCLUDING BUT NOT LIMITED TO, ABRASIVE DAMAGE. Disclaimer of Consequential Damage and Limitation of Implied Warranties: AMERICAN HONDA DISCLAIMS ANY RESPONSIBILITY FOR LOSS OF TIME OR USE OF THE PRODUCT, TRANSPORTATION, COMMERCIAL LOSS, OR ANY OTHER INCIDENTAL OR CONSEQUENTIAL DAMAGE.
- Page 81 1. The accessories, replacement parts, or apparel must be purchased in the United States, Puerto Rico, or the U.S. Virgin Islands from American Honda or a dealer authorized by American Honda to sell those products. 2. You must be the first retail purchaser. This warranty is not transferable subsequent owners.
- Page 82 AGAINST DAMAGE, INCLUDING BUT NOT LIMITED TO, ABRASIVE DAMAGE. Disclaimer of Consequential Damage and Limitation of Implied Warranties: AMERICAN HONDA DISCLAIMS ANY RESPONSIBILITY FOR LOSS OF TIME OR USE OF THE PRODUCT, OR THE POWER EQUIPMENT ON WHICH THE PRODUCT IS INSTALLED, TRANSPORTATION, COMMERCIAL...
- Page 83 Your Warranty Rights And Obligations: California The California Air Resources Board and American Honda Motor Co., Inc. are pleased to explain the emission control system warranty on your Honda Power Equipment engine. In California, new utility and lawn and garden equipment engines must be designed, built and equipped to meet the State’s stringent anti-smog standards.
- Page 84 To Obtain Warranty Service: You must take your Honda Power Equipment engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Honda Power Equipment dealer who is authorized American Honda Motor Co., Inc.
- Page 85 SECTION OF THE PRODUCT OWNER’S MANUAL, SUCH AS: SPARK PLUGS AND FILTERS. Disclaimer of Consequential Damage and Limitation of Implied Warranties: AMERICAN HONDA MOTOR CO., INC. DISCLAIMS ANY RESPONSIBILITY INCIDENTAL OR CONSEQUENTIAL DAMAGES SUCH AS LOSS OF TIME OR THE USE OF THE POWER EQUIPMENT, OR ANY COMMERCIAL LOSS DUE TO THE FAILURE OF THE EQUIPMENT;...
- Page 86 The Service Manager or General Manager can help. Almost all problems are solved in this way. If you are dissatisfied with the decision made by the dealership’s management, contact the Honda Power Equipment Customer Relations Office. You can write: American Honda Motor Co., Inc.
- Page 87 When you write or call, please provide the following information: • Model and serial numbers • Name of the dealer who sold the Honda power equipment to you • Name and address of the dealer who services your equipment •...
- Page 88 ADDITIONAL INFORMATION OXYGENATED FUELS Some conventional gasolines are being blended with alcohol or an ether compound. These gasolines are collectively referred to as oxygenated fuels. To meet clean air standards, some areas of the United States and Canada use oxygenated fuels to help reduce emissions.
- Page 89 In some areas, it is illegal to operate an engine without a spark arrester. Check local laws and regulations. An optional USDA approved spark arrester is available from an authorized Honda servicing dealer. The spark arrester must be serviced every 100 hours to keep it functioning as designed.
- Page 90 INDEX Air Cleaner inspection....... 20 Fallen Leaves, Bagging ....35 Air Cleaner Service......Flywheel Brake Lever: Cable Adjustment......Operation......13 & 29 Blade(s): Frame Serial Number......Inspection........Fuel: Installation ........Additive to Extend Storage ..Life . . 66 Removal ........
-
Page 91: Important Message To Parents
INDEX Spark Arrester Service Maintenance: (optional equipment)..... .86 Blade Removal and Spark Plug Recommendations Installation........ & Service ........Cable Adjustments ....... 52 Specifications: Engine ......... Capacities........Grass Bag Cleaning & Dimensions........Replacement......58 Engine Design and Importance.. - Page 92 QUICK REFERENCE INFORMATION Unleaded gasoline with pump octane rating of 86 Type or higher (page 51). Fuel Capacity 0.26 US gallons (1 .O !) SAE 1 OW-30, API SH or SJ (page 46) Type Engine Oil Capacity 0.63 US quarts (0.6 !) Regular: NGK - BP5ES DENS0 - Wl GEP-U...
