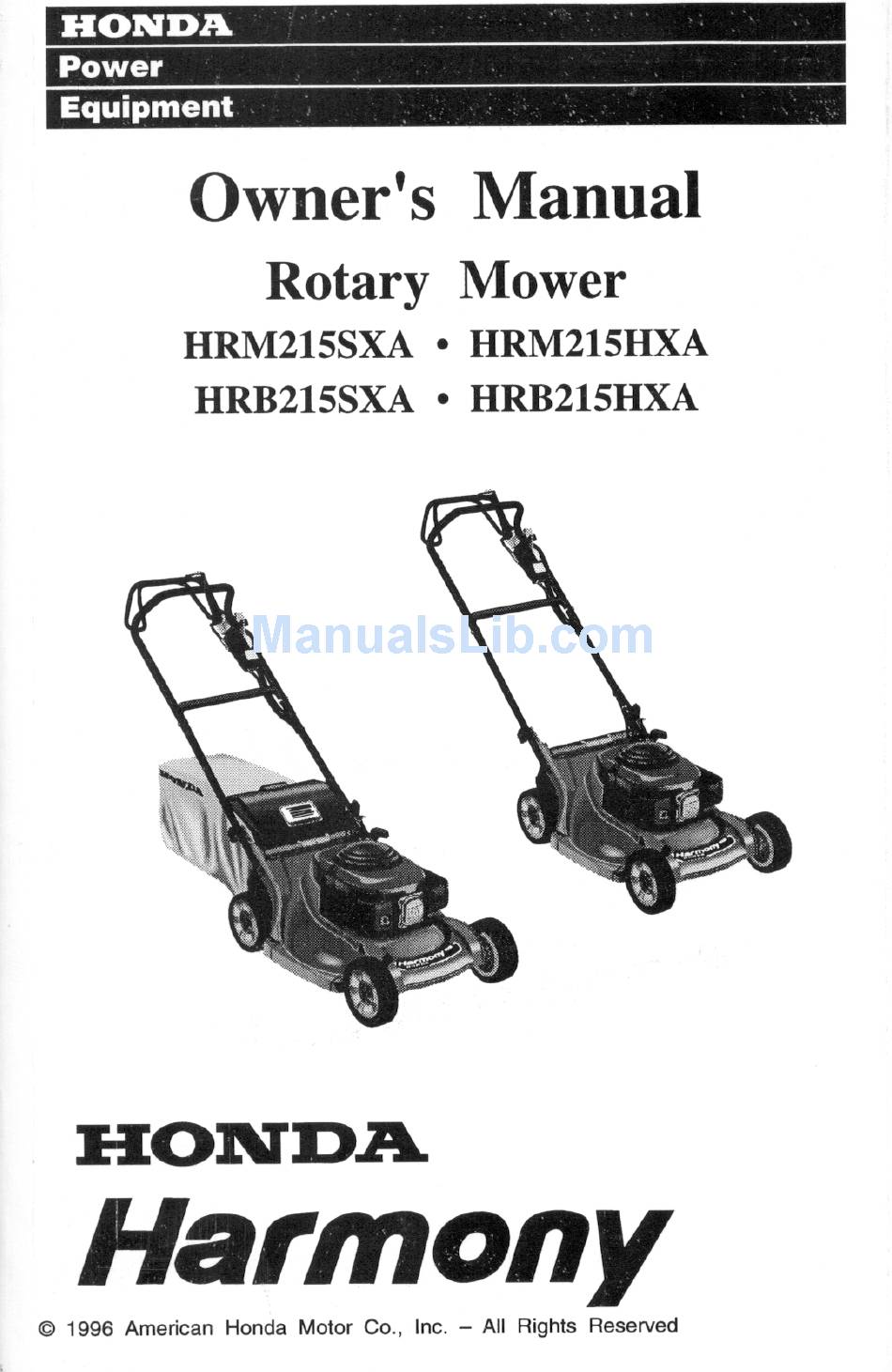

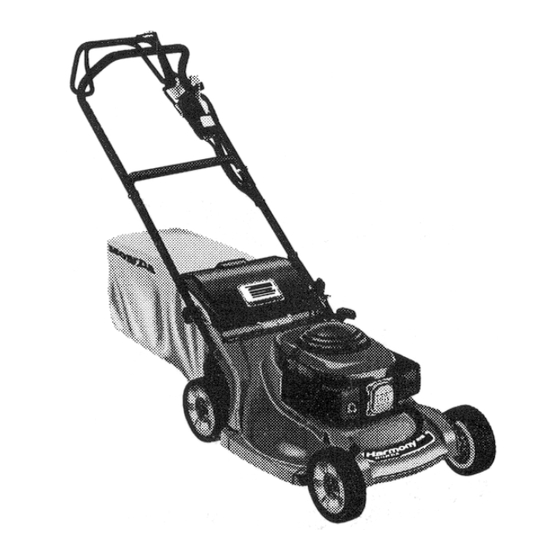

Honda Harmony HRB215HXA Owner's Manual

Honda rotary mower owner's manual
Hide thumbs Also See for Harmony HRB215HXA:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Honda Harmony HRB215HXA

Summary of Contents for Honda Harmony HRB215HXA

  • Page 2 Keep this owner’s manual handy, so you can refer to it any time, and make sure the manual stays with the lawn mower if you sell it. This owners manual is considered mower and should remain with the mower if resold.
  • Page 3 Best Wishes, Power Equipment American Honda Motor Co., Inc. 0 1996 American Honda Motor Co., Inc. - All Rights Reserved on your selection of a Honda lawn mower! We are of ownership. Division INTRODUCTION on how to do preceded by a...
  • Page 4 INTRODUCTIOM A FEW WORDS ABOUT SAFETY Your safety, and the safety of others, are very important. And using this lawn mower safely is an important responsibility. To help you make informed decisions about safety, we have provided operating procedures manual. This information hurt you or others.

  • Page 5: Table Of Contents

    Turn to the beginning MOWER SAFETY ....... . Important information and what you can do to prevent injury.
  • Page 7 This chapter explains what you need to know to operate your mower safely. IMPORTANT SAFETY INFORMATION Avoid Rotating Blades. Clear Mowing Area ......Keep Shields in Place .

  • Page 8: Mower Safety

    MOWER SAFETY IMPORTANT SAFETY INFORMATION Most accidents with walk-behind follow all instructions common hazards, according to accident statistics, are discussed below, along with the best way to protect yourself and others. Avoid Rotating Blades Rotating blades can cause serious cuts and even amputate fingers, hands, toes, or feet.
  • Page 9 YOUR CHILDREN’S That’s why we urge you to read this message before letting your youngster operate this lawn mower. Lawn mowers are tools, not toys. As with any equipment, You can help prevent accidents by making good decisions when, and how your youngster The first question you’ll need to ask is whether your youngster...

  • Page 10: Safety Label Locations

    IMOWER SAFETY SAFETY LABEL LOCATIONS The labels shown here contain important safety information. read them carefully. These labels are considered your mower. So if a label comes off or becomes hard to read, contact your dealer for a replacement. (HRB215) UNDER NORMAL USAGE.

  • Page 11: Controls

    COMPONENT DESCRIPTION FuelValve Throttle Lever..Blade Control Lever..Drive Clutch Lever..ShiftLever HRM215SXA HRM215HXA Cutting Height Adjustment IDENTIFICATION OF CONTROLS. & HRB215SXA & HRB215HXA Levers ... CONTROLS...
  • Page 12 CONTROLS COMPONENT IDENTIFICATION DRIVE CLUTCH LEVER CUlTlNG HEIGHT ADJUSTMENT LEVER HRB215K3SXA: Self-propelled, HRB215K3HXA: Self-propelled, blade, and grass bag. HRM215K3SXA: Self-propelled, mulching blades, and mulching plug. HRM215K3HXA: Self-propelled, hydrostatic transmission, mulching blades, and mulching plug. HANDLEBAR SHIFT LEVER THROTTLE LEVER DISCHARGE GUARD MOWER dECK high-lift blade, and grass bag.
  • Page 13 ENGINE SERIAL NUMBER CUTTING HEIGHT ADJUSTMENT LEVERS Record the frame and engine serial numbers in the space below. You will need these serial numbers when ordering parts and when making technical or warranty inquiries (see page 90). Frame serial number: Engine serial number: BLADE CONTROL LEVER...
  • Page 14 CONTROLS DESCRIPTION OF CONTROLS Fuel Valve The fuel valve opens and closes the fuel passage from the fuel tank to the carburetor. Throttle Lever CHOKE FAST- - - - SLOW - - - STOP - - - For starting a cold engine. For restarting a warm engine and for mowing.
  • Page 15 Blade Control Lever The blade control lever starts and stops blade rotation. To start blade rotation, the button must be pressed before pushing the blade control lever forward. BLADE CONTROL LEVER Drive Clutch Lever The drive clutch lever engages and disengages drives the rear wheels.
  • Page 16 & HRB215SXA 1 (slow) -For 2 (medium) -For intermediate 3 (fast) -For HRM215HXA & HRB215HXA STOP -With the shift lever all the way back and the drive clutch lever engaged, the mower will move slowly or not at all. sl%w...
  • Page 17 Cutting Height Adjustment There are six settings to choose from, as shown in the illustration. The cutting height figures are approximate. grass will vary with lawn and soil conditions. ADJUSTMENT LEVER HRM215 1 in (25 m l-1/2 in (38 2-l/2 in ( There is an adjustment Levers HRB215...

  • Page 19: Before Operation

    This chapter explains how to fuel and check your mower to be sure it is ready, and it tells you how to prepare your lawn and yourself before you begin mowing. ARE YOU READY TO MOW? ... CHECK YOUR LAWN ... Objects ...

  • Page 20: Wear Protective Clothing

    BEFORE OPERATION ARE YOU READY TO MOW? Be sure to wear protective clothing. Long pants and eye protection can lower your risk of injury from thrown objects. Wear footwear that protects your feet and won’t let you slip if you mow on slopes or uneven ground.

  • Page 21: Check Your Mower

    A worn or damaged blade can break, causing blade pieces to be thrown from the mower. When a blade needs sharpening or replacement take the lawn mower to an authorized Honda servicing dealer. Or, if you have a torque wrench, you can remove and install a blade(s) yourself (see pages 62 - 63).

  • Page 22: Engineoil Level

    BEFORE OPERATION Engine Oil Level Check the engine oil level with the engine stopped and the mower on a level surface. 1. Remove the oil filler cap, and wipe the dipstick clean. 2. Insert and remove the dipstick without screwing it into the filler neck.

  • Page 23: Fuel

    Fuel Fuel tank capacity: 0.26 US gal (1 .O 1) Refuel in a well-ventilated engine has been running, allow it to cool. Refer to page 55 for fuel recommendations and page 91 for information about oxygenated Remove the fuel tank cap and check the fuel level. Refill the tank if the fuel level is low.

  • Page 24: Air Cleaner Inspection

    BEFORE OPERATION Air Cleaner Inspection Check that the air filters are clean and in good condition. filters will restrict air flow to the carburetor, performance. Refer to page 51 for air cleaner service. reducing engine AIR CLEANER HOUSING II 17 Dirty air PAPER FILTER FOAM FILTER...

  • Page 25: Handlebar Height Adjustment

    Handlebar Height Adjustment Adjust handlebar height for a comfortable 1. Loosen the handlebar 2. Spread the lower ends of the handlebar to release the locating pins. 3. Move the handlebar holes on the handlebar 4. Tighten the handlebar LOCKING KNOB (2) BEFORE OPERATION operating position.

  • Page 26: Grass Bag (Hrb215)

    BEFORE OPERATION Grass Bag (HRB215) A lawn mower works like a vacuum cleaner; it blows air through the bag, which traps the grass clippings. Always empty the grass bag before it becomes filled to the limit of its capacity. Bagging performance will diminish after the bag becomes about 90% filled.

  • Page 27: Mulching Plug (Hrm215)

    Mulching Plug (HRM215) The mulching plug contours the mower deck for efficient mulching. You can quickly remove the plug to install a grass bag or side-discharge chute, which are available as optional equipment. Raise the discharge guard to remove or install the mulching plug.

  • Page 29: Operation

    MOWING TIPS ..WhentoMow Cutting Height ... Cutting Width..BladeSpeed Blade Sharpness Dry Grass ... WetGrass.. Fallen Leaves Clogged Mower Deck ... Mowing Patterns Mulching ... Bagging.. Side-Discharge FOR MOWING ... & HRB215SXA & HRB215HXA & HRB215SXA & HRB215HXA Mowing. OPERATION...

  • Page 30: Mowing Precautions

    OPERATION MOWING PRECAUTIONS Before operating the mower for the first time, please review the IMPORTANT SAFETY INFORMATION previous chapter, titled BEFORE OPERATION. Even if you have operated other mowers, take time to become familiar with how this mower works and practice in a safe area until you build up your skills.

  • Page 31: Starting The Engine

    STARTING THE ENGINE Before starting, always release the blade control lever and drive clutch lever, so the blade will not turn, and the mower will not move forward, when you operate the starter. 1. Turn the fuel valve to the ON position. 2.
  • Page 32 OPERATION 3. Place your foot on the mower deck step. Pull the starter grip lightly until you feel resistance, gently. STARTER GRIP 4. If the CHOKE position was used during starting, move the throttle lever away from the CHOKE position as soon as the engine warms up enough to run smoothly without use of the choke.

  • Page 33: Operating The Controls For Mowing

    OPERATING THE CONTROLS FOR MOWING Throttle Lever For best cut quality, always mow with the throttle lever in the FAST position. When the blade(s) rotates at the preset fast speed, it creates a strong fan action that lifts and cuts grass more efficiently. Do not try to increase the preset engine speed: the blade could fracture and come apart.

  • Page 34: Drive Clutch Lever

    Release the drive clutch lever to stop the mower’s forward movement. HRM215HXA &i HRB215HXA You can control self-propelled speed with the drive clutch lever. The mower will move gradually faster as you push the drive clutch lever forward.

  • Page 35: Shift Lever

    To avoid incomplete engagement, be sure the shift lever is centered in one of the three detent positions. HRM215HXA & HRB215HXA For maximum mowing performance, use the lower speed range for mowing and the higher speed range for transporting. With the shift lever all the way...

  • Page 36: Stopping The Engine

    STOPPING THE ENGINE 1. Release the drive clutch lever and blade control lever. BLADE CONTROL LEVER LEVER 2. Move the throttle lever to the STOP position. 3. When the mower is not in use, turn the fuel valve to the OFF position.

  • Page 37: Safe Mowing Practices

    SAFE MOWING PRACTICES For your safety, keep all four wheels on the ground, and be careful to avoid losing your footing and your control of the mower. Keep a firm grip on the handlebar, careful when mowing uneven or rough ground. If stuck, do not kick or shove the mower with your foot.

  • Page 38: Obstacles

    OPERATION Obstacles Use the side of the mower to cut close to large obstacles, fences or walls. Release the drive clutch lever to disengage around trees and other obstacles. for better directional embedded in the lawn, such as sprinkler heads, paving, edging, etc. Avoid anything that sticks up above the surface of the lawn.

  • Page 39: Mowing Tips

    MOWING TIPS When to Mow Most grasses should be mowed when they have grown l/z to 1 inch above their recommended height. More frequent mowing is required for mulching than for bagging. For best results, you may need to mow the lawn twice a week during the growing season.

  • Page 40: Bladespeed

    OPERATION Blade Speed The blade must spin very fast to cut properly. Always use the FAST throttle setting, and keep the engine running at maximum rpm. If engine speed drops, it could mean the engine is being overloaded by the blade trying to cut too much grass. Mow a narrower swath, move the mower slower, or raise the cutting height.

  • Page 41: Mowing Patterns

    Mowing Patterns Your Honda mower will work most efficiently if you use the following mowing patterns as much as possible. Mower deck and equipment design, and the direction in which the blade rotates, cause these mowing patterns to give the best results. Mulching (HRB215 requires optional mulching kit)

  • Page 43: Transporting

    TRANSPORTING This chapter explains how to load and carry your mower safely. BEFORE LOADING ......42 LOADING AND UNLOADING..
  • Page 44 TRANSPORTING BEFORE LOADING If the engine has been running, allow it to cool for at least 15 minutes before loading the mower on the transport vehicle. A hot engine and exhaust system can burn you and can ignite some materials. 1.

  • Page 45: Maintenance

    This chapter explains when and how to perform routine inspection, service, and adjustments maintenance tasks should be done by your dealer. Your dealer is best equipped and staffed to provide the level of service and safety you and your mower deserve. THE IMPORTANCE MAINTENANCE Safety Precautions.
  • Page 46 THE IMPORTANCE Good maintenance operation. It will also help reduce air pollution. Improper maintenance, problem before operation, can cause a malfunction hurt or killed. Always follow the inspection and maintenance recommendations owners manual. To help you properly care for your mower, the following pages include a maintenance simple maintenance service tasks that are more difficult, or require special tools, are best...
  • Page 47 MAINTENANCE SAFETY Some of the most important safety precautions cannot warn you of every conceivable performing maintenance. should perform a given task. Failure to properly follow maintenance instructions to be seriously hurt or killed. Always follow the procedures precautions Safety Precautions Make sure the engine is off before you begin any maintenance repairs.
  • Page 48 MAINTENANCE EMISSION CONTF?OL SYSTEM INFORMATION Source of Emissions The combustion process produces carbon monoxide, nitrogen, and hydrocarbons. nitrogen is very important because, under certain conditions, react to form photochemical Carbon monoxide does not react in the same way, but it is toxic. Honda utilizes lean carburetor the emissions of carbon monoxide,...
  • Page 49 Replacement Parts The emission control systems on your new Honda engine were designed, built, and certified to conform with EPA and California emission regulations. parts whenever you have maintenance replacement parts are manufactured original parts, so you can be confident of their performance. of replacement parts that are not of the original design and quality may impair the effectiveness...
  • Page 50 MAINTENANCE MAINTENANCE SCHEDULIE Air Cleaner Spark plug Spark arrester (optional equipment) ‘lean Idle speed Blade control mechanism Blade control cable Drive clutch cable HXA Adjust Shift cable (SXA) Throttle cable Valve clearance Fuel tank Fuel line Emission related items. Replace the paper filter only. Service more frequently These items should be serviced by an authorized dealer, unless you have the proper tools and are mechanically...
  • Page 51 ENGINE MAINTENANCE Engine Oil Change Drain the used oil while the engine is warm. Warm oil drains quickly and completely. Put the throttle lever in the STOP position and turn the fuel valve OFF. This will reduce the possibility of fuel leakage (see page 34). Wipe the oil filler area clean, then remove the oil filler cap/dipstick.
  • Page 52 MAINTENANCE 5. After changing the engine oil, and before starting the engine, check the oil level with the mower on a level surface: Wipe the dipstick clean. Insert and remove the dipstick without screwing it into the filler neck. Check the oil level shown on the dipstick.
  • Page 53 Air Cleaner Service Dirty air filters will restrict air flow to the carburetor, performance. If you operate the mower in very dusty areas, clean the air filters more often than specified in the MAINTENANCE SCHEDULE. 1 NOTICE Operating the engine without air filters, or with damaged filters, will allow dirt to enter the engine, causing rapid engine wear.
  • Page 54 MAINTENANCE 5. Wipe dirt from the inside of the air cleaner housing and cover, using a moist rag. Be careful to prevent dirt from entering the air duct that leads to the carburetor. 6. Reinstall the filters and cover. Tighten the cover screw securely. Spark Plug Service RECOMMENDED SPARK PLUGS...
  • Page 55 Remove the spark plug with a ‘$46 in (21 mm) spark plug wrench. Inspect the spark plug. Replace it if the electrodes if the insulator is cracked or chipped. Clean the spark plug with a wire brush if you are going to reuse it.
  • Page 56 MAINTENANCE Carburetor Adjustment 1. Start the engine outdoors, and allow it to warm up to normal operating temperature. Set the throttle lever in the SLOW position. Turn the throttle stop screw to obtain the standard Standard idle speed: 2,100 f 150 rpm Carburetor Modification At high altitude, the standard carburetor air-fuel mixture will be too...
  • Page 57 Fuel Recommendations Use unleaded gasoline with a pump octane rating of 86 or higher. This engine is certified to operate on unleaded gasoline. Unleaded gasoline produces fewer engine and spark plug deposits and extends exhaust system life. Never use stale or contaminated Avoid getting dirt or water in the fuel tank.
  • Page 58 MAINTENANCE CONTROL CABLE ADJUSTMENTS Blade Control Cable Adjustment Measure free play at the top of the lever, while holding the button down. Free play should be 3/8 - 9116 in (10 - 15 mm). If adjustment is necessary: 1. Loosen the lock nuts with a 10 mm wrench, and move the adjuster up or down as required.
  • Page 59 Drive Clutch Cable Adjustment Measure free play at the top of the lever, as shown. Free play should be 3/l 6 - 318 in (5 - 10 mm). If adjustment 1. Loosen the lock nuts with a 10 mm wrench, and move the adjuster up or down as required.
  • Page 60 MAINTENANCE Shift Cable Adjustment Shift cable adjustment smoothly, does not shift properly into a gear, or does not align with the numbers beside the lever. With the shift lever in 2nd gear, check that the lever, throughout free-play range, is well-centered cover.
  • Page 61 Drive Clutch Cable Adjustment 1. With the engine stopped, position the control cable bands as shown. 2. Pull the shift lever all the way back to the neutral position. 3. Start the engine and move the throttle lever to the FAST position.
  • Page 62 MAINTENANCE 5. Loosen the top and bottom drive clutch cable lock nuts with a 10 mm wrench. Move the adjuster up or down, as required, until the mower operates as outlined in step 4. Tighten the lock nuts. TOP LOCK NUT BOlTOM LOCK NUT If the mower will not operate correctly, take the mower to an...
  • Page 63 THROlTLE CABLE INSPECTION Throttle cable adjustment operate the choke properly. You can inspect choke operation by observing the movement of the choke arm, which is located on top of the carburetor. 1. Move the throttle lever to the CHOKE position. THROlTLE 2.
  • Page 64 BLADE REMOVAL AND INSTALLATION If you remove the blade(s) for sharpening need a torque wrench for installation. your hands. BLADE SHARPENING: imbalance or poor cutting, the blade(s) should be sharpened trained staff at an authorized BLADE REPLACEMENT: or their equivalent. Blade Removal 1.
  • Page 65 Blade installation 1. Clean dirt and grass from around the blade mounting area. 2. Install the blade(s) using the two blade bolts and special washers as shown. Be sure to install the special washers with the concave side toward the blade(s) and the convex side (marked OUT) toward the bolts. The blade bolts and washers are specially designed for this application.
  • Page 66 GRASS BAG CLEANING AND REPLACEMENT Grass Bag Cleaning Wash the bag with a garden hose, and allow it to dry completely before use; a wet bag will clog quickly. Grass Bag Replacement Replace a worn or damaged bag with a Honda replacement its equivalent.

  • Page 67: Troubleshooting

    This chapter shows what to check if you have a problem with your mower. ENGINE PROBLEMS Engine will not start ... Lossofpower VIBRATION PROBLEMS MOWING AND BAGGING PROBLEMS. TROUBLESHOOTING...
  • Page 68 TROUBLESHOOTING ENGINE PROBLEMS Engine Will Not Start 1. Check control positions. 2. Check fuel. 3. Remove and inspect spark plug. 4. Take the mower to an authorized Honda servicing dealer, or refer to shop manual. Loss of Power 1. Check throttle position. 2.
  • Page 69 VIBRATION PROBLEMS Excessive I------ Vibration 1. Check mower deck and blade(s). 2. Take the mower to an authorized Honda servicing dealer for reoair. MOWING AND BAGGING Poor Cut Quality or Door Mowing/Bagging Performance 1. Check that the throttle lever is in the FAST position.
  • Page 71 This chapter explains how to protect your mower from rust and corrosion, and ensure that it will start easily when you want to use it again. STORAGE PREPARATION Cleaning ... Engine.. Mower Deck..Grass Bag (HRB215). Fuel ... Adding fuel stabilizer to extend fuel storage life..Draining the Fuel Tank and Carburetor.

  • Page 72: Storage

    Proper storage preparation troublefree and looking good. The following steps will help to keep rust and corrosion from impairing your lawn mower’s function and appearance, and will make the engine easier to start when you use the lawn mower again.
  • Page 73 5. Stop the engine and allow it to cool. 6. After the lawn mower is clean and dry, touch up any damaged paint, and coat other areas that may rust with a light film of oil. Lubricate the control cable cores with a silicone spray lubricant.

  • Page 74: Fuel

    STORAGE Fuel Gasoline will oxidize and deteriorate cause hard starting, and it leaves gum deposits that clog the fuel system. If the gasoline in your mower deteriorates you may need to have the carburetor and other fuel system components, serviced or replaced. The length of time that gasoline can be left in your fuel tank and carburetor without causing functional...

  • Page 75: Draining The Fuel Tank And Carburetor

    Draining the Fuel Tank and Carburetor 1. Remove the carburetor drain bolt with a 10 mm wrench, and drain the carburetor bowl fuel into an approved container. Gasoline is highly flammable and explosive. You can be burned or seriously injured when handling fuel.

  • Page 76: Engine Cylinder

    Engine Cylinder Remove the spark plug (see page 53). Pour a tablespoon (5 - 10 cc) of clean engine oil into the cylinder. Pull the starter rope several times to distribute the oil in the cylinder. Reinstall the spark plug. Pull the starter rope slowly until resistance is felt then return the starter grip gently.

  • Page 77: Handlebar Folding

    Handlebar Folding The handlebar can be folded for storage or transport by loosening handlebar locking knobs. 1. Remove the grass bag, if so equipped. You can place it on top of the engine, with the bag opening to the front. 2.

  • Page 78: Placing In Storage

    STORAGE PLACING IN STORAGE If your mower will be stored with gasoline in the fuel tank and carburetor, it is important to reduce the hazard of gasoline vapor ignition. Select a well-ventilated appliance that operates with a flame, such as a furnace, water heater, or clothes dryer.

  • Page 79: Specifications

    This chapter gives dimensions, information. MOWER MODELS DIMENSION, WEIGHTS, AND CAPACITIES. ENGINE DESIGN AND PERFORMANCE TRANSMISSION MAINTENANCE TUNEUP SPECIFICATIONS capacities, and other technical DESIGN AND PERFORMANCE.
  • Page 80 SPEClFlCATlONS MOWER MODELS HRB215K3SXA: Seff-propelled, HRB215K3HXA: Self-propelled, HRM215K3SXA: Self-propelled, HRM215K3HXA: Self-propelled, mulching plug DIMENSIONS, WEIGHTS, AND CAPACITIES Maximum Length (handlebar extended) Minimum Length (handlebar folded) Width at Mower Deck Overall Height (with cutting height set at 2-l/2 in [64 mm]) Dry Weight Cutting Width Approximate...
  • Page 81 Maximum Horsepower Maximum Torque TRANSMISSION HRB215SXA 81 HRM215SXA Transmission Type Mower Ground Speed (with engine at 3,300 rpm) HRB215HXA & HRM215HXA Transmission Type Maximum Mower Ground Speed (with engine at 3,300 rpm) GXVl40Kl 4-stroke, overhead-valve, forced air-cooled 1 8.2 cu in (135 cc) 2.52 x 1.65 in (64 x 42 mm)
  • Page 82 SPECIFICATIONS MAINTENANCE Fuel Engine Oil Transmission Spark Plug Type Maximum Governed Speed Blade Control Cable Drive Clutch Cable (SXA) Shift Cable (SXA) Drive Clutch Cable (HXA) Throttle Cable Blade Bolt Torque TUNEUP Spark Plug Gap Idle Speed (blade control disengaged) Valve Clearance (cold) Other Specifications...
  • Page 83 ADDITIONAL This chapter contains additional available to you, warranty, and tells you how to contact us if you have a question or a warranty repair problem. HONDA PUBLICATIONS Shop Manual... PartsCatalog... WARRANTY... Distributor’s Accessories, Emission Control System Warranty. Warranty Service Information OXYGENATED SPARK ARRESTER information,...

  • Page 84: Additional Information

    HONDA PUBLICATIONS These publications will give you additional information and repairing your mower. You may order them from your Honda lawn mower dealer. Shop Manual This manual covers complete maintenance It is intended to be used by a skilled technician.
  • Page 85 To Obtain Warranty Service: You must take the Honda Harmony lawn mower, riding mower, or lawn tractor and proof of original retail purchase date, at your expense, to any Honda Power Equipment dealer in the United States, Puerto Rico, or the U.S. Virgin Islands who is authorized to service that product, during the dealer’s normal business hours.
  • Page 86 ADDITIONAL INFORMATION Exclusions: THIS WARRANTY DOES NOT EXTEND TO PARTS AFFECTED OR DAMAGED BY ACCIDENT AND/OR COLLISION, IN AN APPLICATION FOR WHICH THE PRODUCT WAS NOT DESIGNED OR ANY OTHER MISUSE, NEGLECT, INCORPORATION ATTACHMENTS OR PARTS, UNAUTHORIZED OTHER THAN DEFECTS IN MATERIAL OR WORKMANSHIP MOWER BLADES AND MOWER DECK HOUSINGS, ARE SPECIFICALLY WARRANTED AGAINST DAMAGE, INCLUDING BUT NOT LIMITED TO,...
  • Page 87 Accessories, Replacement PRODUCTS COVERED BY THIS WARRANTY: Accessories Replacement Parts Apparel To Qualify for this Warranty: 1. The accessories, replacement States, Puerto Rico, or the U.S. Virgin Islands from American Honda or a dealer authorized by American Honda to sell those products. 2.
  • Page 88 ADDITIONAL INFORMATION Exclusions: THIS WARRANTY DOES NOT EXTEND TO ACCESSORIES, APPAREL AFFECTED OR DAMAGED BY ACCIDENT AND/OR COLLISION, NORMAL WEAR, USE IN AN APPLICATION NOT DESIGNED OR ANY OTHER MISUSE, NEGLECT, INCORPORATION USE OF UNSUITABLE ALTERATION, IMPROPER DEFECTS IN MATERIAL OR WORKMANSHIP MOWER BLADES AND MOWER DECK HOUSINGS, ARE SPECIFICALLY WARRANTED AGAINST DAMAGE, INCLUDING BUT NOT LIMITED TO,...
  • Page 89 Emission Control System Warranty Your new Honda Power Equipment engine complies with both the U.S. EPA and State of California emission regulations. American Honda provides the same emission warranty coverage for engines sold in all 50 states. Your Warranty Rights And Obligations: California The California Air Resources Board and American Honda Motor Co., Inc.
  • Page 90 ADDITIONAL INFORMATION Warranty Coverage: Honda power equipment State of California, and U.S. EPA certified engines manufactured September 1, 1996 and sold in all of the United States, are covered by this warranty for a period of two years from the date of delivery to the original retail purchaser. This warranty is transferable warranty...
  • Page 91 Exclusions: FAILURES OTHER THAN THOSE RESULTING FROM DEFECTS IN MATERIAL OR WORKMANSHIP ARE NOT COVERED BY THIS WARRANTY. THIS WARRANTY DOES NOT EXTEND TO EMISSION CONTROL SYSTEMS OR PARTS WHICH ARE AFFECTED OR DAMAGED BY OWNER ABUSE, NEGLECT, IMPROPER MAINTENANCE, ACCIDENT AND/OR COLLISION, THE INCORPORATION ANY ADD-ON OR MODIFIED PARTS, UNSUITABLE ATTACHMENTS, UNAUTHORIZED...
  • Page 92 When you write or call, please give us this information: Model and serial numbers (see page Name of the dealer who sold the lawn mower to you Name and address of the dealer who services your lawn mower Date of purchase...
  • Page 93 OXYGENATED FUELS Some conventional ether compound. These gasolines are collectively oxygenated fuels. To meet clean air standards, United States and Canada use oxygenated emissions. If you use an oxygenated minimum octane rating requirement. Before using an oxygenated Some states/provinces pump. The following are the EPA approved percentages ETHANOL -(ethyl...
  • Page 94 ADDITIONAL INFORMATION SPARK ARRESTER The engine in your lawn mower is not factory-equipped arrester. In some areas, it is illegal to operate an engine without a spark arrester. Check local laws and regulations. available from an authorized The spark arrester must be serviced every 100 hours to keep it functioning as designed.

  • Page 95: Index

    Air Cleaner Inspection Air Cleaner Service..51 Blade: Inspection ......19 Installation ......63 Removal .

  • Page 96: Important Safety Information

    INDEX Gasoline Recommendations..5 Grass Bag: Cleaning..64 & 70 Inspection..24 Removal and Installation...2 ..64 Replacement.. Height Adj..23 Handlebar Folding ..75 Handlebar High Altitude Operation..54 Inspection Before Mowing: Lawn ... Mower..Introduction Lawn: Inspection...
  • Page 97 Spark Arrester Service (optional part) ..... 92 Spark Plug Recommendations & Service ......52 Specifications: Capacities .
  • Page 99 QUICK REFERENCE Type Fuel Capacity Type Engine Oil Capacity Type Spark Plug Blade bolts Torque Carburetor Idle speed Before each Maintenance First 20 hours Subsequent INFORMATION Unleaded gasoline with pump octane rating of 86 or higher (page 55). 0.26 US gallons (1 .O !) SAE lOW-30, API SH or SJ (page 50) 0.63 US quarts (0.6 !) Regular:...
