TECHNICAL FEATURES
MOVEMENT OF THE LAWNMOWER WHEN IT HITS AN OBSTRUCTION
When the lawnmower hit obstructions, the obstruction sensor detects the crosswise movement of the top cover, the lawnmower
stops and changes direction. The display will show a message or sound an alarm depending on the repetition of hitting the
obstruction.
• Continuing time of hitting in three seconds, the lawnmower change direction.
• Continuing time of hitting over the three seconds, the lawnmower stop the blade motor. After changing direction, the blade motor
start again.
• Continuing time of hitting over the nine seconds, the lawnmower stop the blade motor, traction motors, sound short alarm and
show the message on the display until you put the PIN code.
• If the number of hitting times is over ten in 20 seconds, the lawnmower stop the blade motor, traction motors, sound short alarm
and show the message on the display until you put the PIN code.

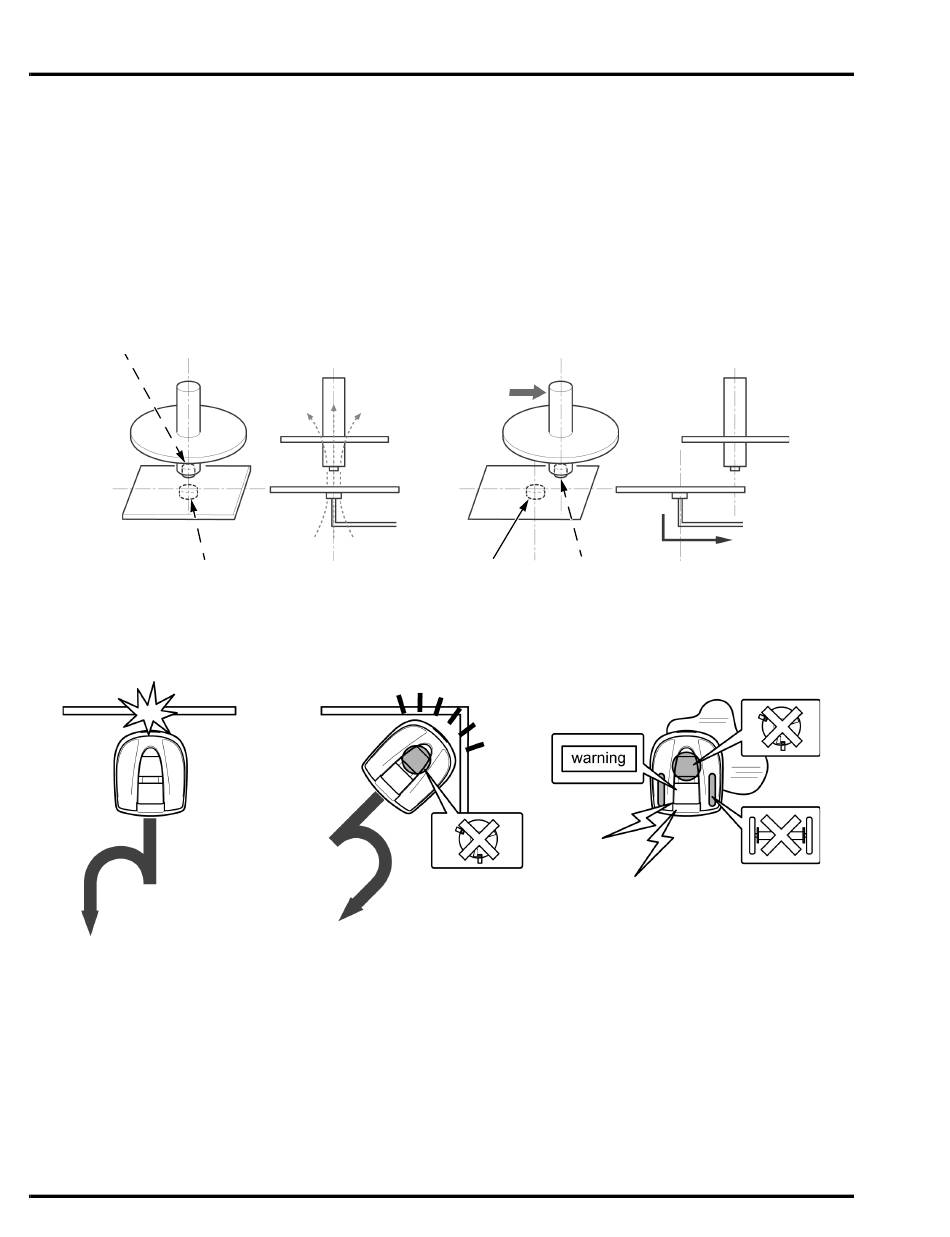

OBSTRUCTION SENSOR OPERATING IMAGE

MAGNET
SENSOR
IN THREE SECONDS
The lawnmower change direction.
2-10
NORMAL
SLIDE
SENSOR
OVER ABOUT THREE SECONDS
The lawnmower stop the blade
motor. After changing direction, the
blade motor start again.
HIT TO
OBSTRUCTION
MAGNET
OUTPUT SIGNAL
OVER NINE SECONDS OR
NUMBER OF HITTING
TIMES IS OVER TEN IN 20
SECONDS.
The lawnmower stop the blade
motor, traction motors, sound short
alarm and show the message on the
display until you put the PIN code.
