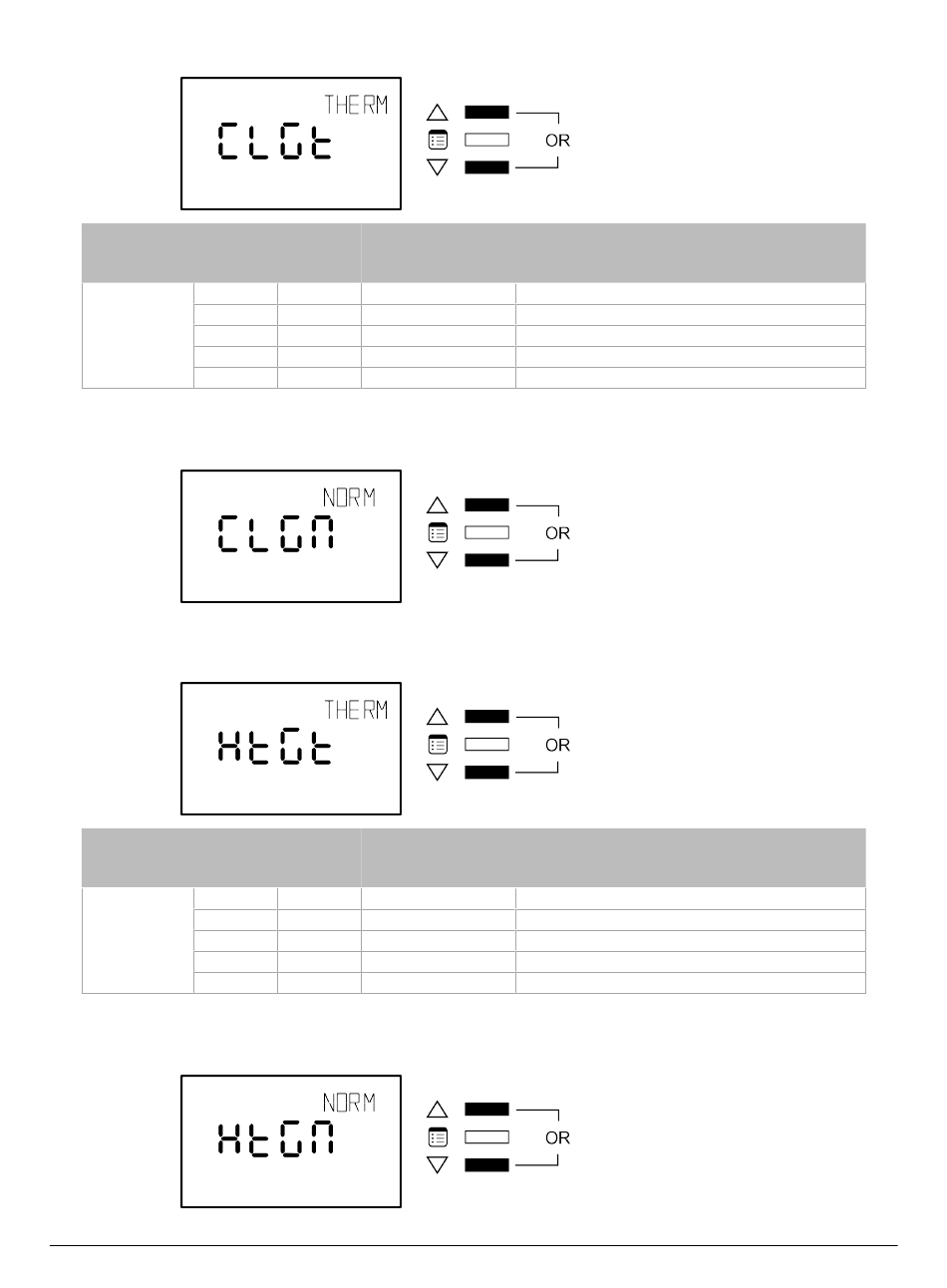

CLG T - Cooling Valve Type
Parameter Default
X
CLG TYPE
(EC7)
Table 17: Cooling Valve Type
CLG N - Cooling Valve Polarity
Select Normally Open or Normally Closed depending on your system.
HTG T - Heating Valve Type
Parameter Default
X
HTG TYPE
(EC8)
Table 18: Heating Valve Type
HTG N - Heating Valve Polarity
ECL-PTU-207 Preloaded Applications
Valid
Choices
0 UNUSED
1 0-10V
2 THERMAL
3 ON_OFF
4 FLOATING
Valid
Choices
0 UNUSED
1 0-10V
2 THERMAL
3 ON_OFF
4 FLOATING
Allure EC-Smart-Vue Screen-by-Screen Guide
Description
Cooling valve is not used
0-10V cooling valve only is used
Thermal and 0-10V cooling valve are used
On/Off and 0-10V cooling valve are used
Floating and 0-10V cooling valve are used
Description
Heating valve is not used
0-10V heating valve only is used
Thermal and 0-10V heat valve are used
On/Off and 0-10V heat valve are used
Floating and 0-10V heat valve is used
