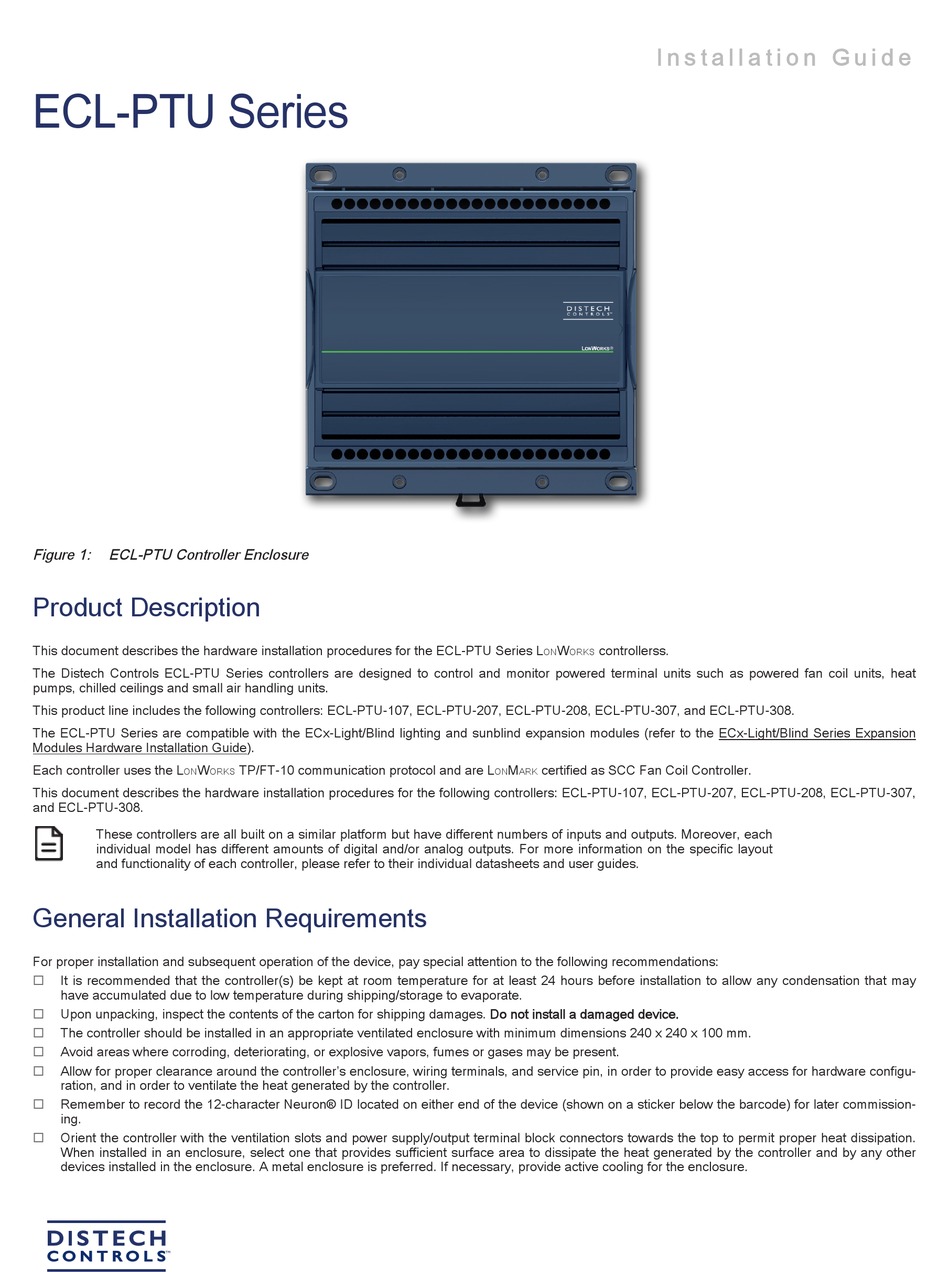

Distech Controls ECL-PTU Series Installation Manual

ECL-PTU Series

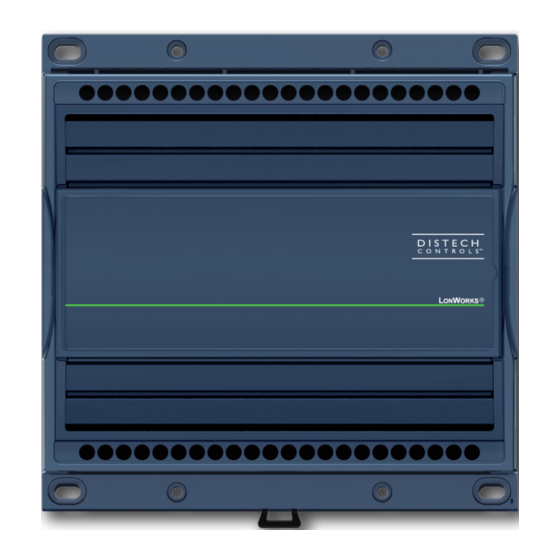

Figure 1: ECL-PTU Controller Enclosure
Product Description
This document describes the hardware installation procedures for the ECL-PTU Series L
The Distech Controls ECL-PTU Series controllers are designed to control and monitor powered terminal units such as powered fan coil units, heat
pumps, chilled ceilings and small air handling units.
This product line includes the following controllers: ECL-PTU-107, ECL-PTU-207, ECL-PTU-208, ECL-PTU-307, and ECL-PTU-308.
The ECL-PTU Series are compatible with the ECx-Light/Blind lighting and sunblind expansion modules (refer to the ECx-Light/Blind Series Expansion
Modules Hardware Installation Guide).
Each controller uses the L W
ON ORKS
This document describes the hardware installation procedures for the following controllers: ECL-PTU-107, ECL-PTU-207, ECL-PTU-208, ECL-PTU-307,
and ECL-PTU-308.
These controllers are all built on a similar platform but have different numbers of inputs and outputs. Moreover, each
individual model has different amounts of digital and/or analog outputs. For more information on the specific layout
and functionality of each controller, please refer to their individual datasheets and user guides.
General Installation Requirements
For proper installation and subsequent operation of the device, pay special attention to the following recommendations:
£
It is recommended that the controller(s) be kept at room temperature for at least 24 hours before installation to allow any condensation that may
have accumulated due to low temperature during shipping/storage to evaporate.
£
Upon unpacking, inspect the contents of the carton for shipping damages. Do not install a damaged device.
£
The controller should be installed in an appropriate ventilated enclosure with minimum dimensions 240 x 240 x 100 mm.
£
Avoid areas where corroding, deteriorating, or explosive vapors, fumes or gases may be present.
£
Allow for proper clearance around the controller's enclosure, wiring terminals, and service pin, in order to provide easy access for hardware configu-
ration, and in order to ventilate the heat generated by the controller.
£ Remember to record the 12-character Neuron® ID located on either end of the device (shown on a sticker below the barcode) for later commission-
ing.
£
Orient the controller with the ventilation slots and power supply/output terminal block connectors towards the top to permit proper heat dissipation.
When installed in an enclosure, select one that provides sufficient surface area to dissipate the heat generated by the controller and by any other
devices installed in the enclosure. A metal enclosure is preferred. If necessary, provide active cooling for the enclosure.
TP/FT-10 communication protocol and are L
I n s t a l l a t i o n G u i d e
W controllerss.
ON ORKS
M certified as SCC Fan Coil Controller.
ON ARK
