Using the dcgfxApplications
Setting Up Trends
The dc gfx Applications comes with two preconfigured graphs that show two trends: space temperature
and effective setpoint. To enable these two trends, refer to the following procedure:
1. In the Nav tree of EC-Net Pro, expand the Services folder of the configured station.
2. Double-click HistoryService.

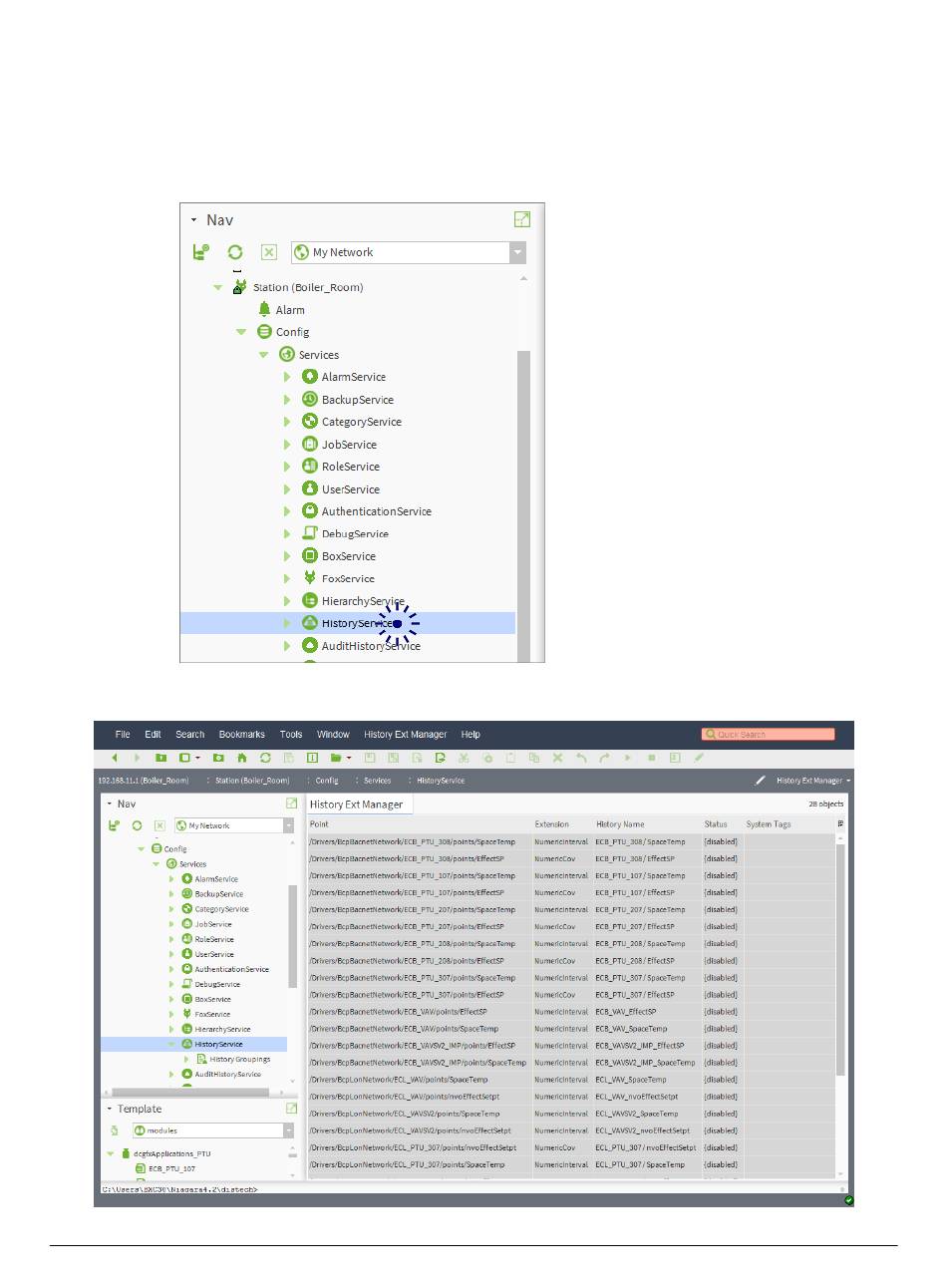

Figure 25: Double-clicking HistoryService
The History Extension Manager appears in the View pane.
Figure 26: History Extension Manager
ECL-PTU-207 Preloaded Applications
57
