Inputs Configuration

All input configuration setpoint parameters are found in the Inputs Configuration subsection of the
Hardware Configuration tab.

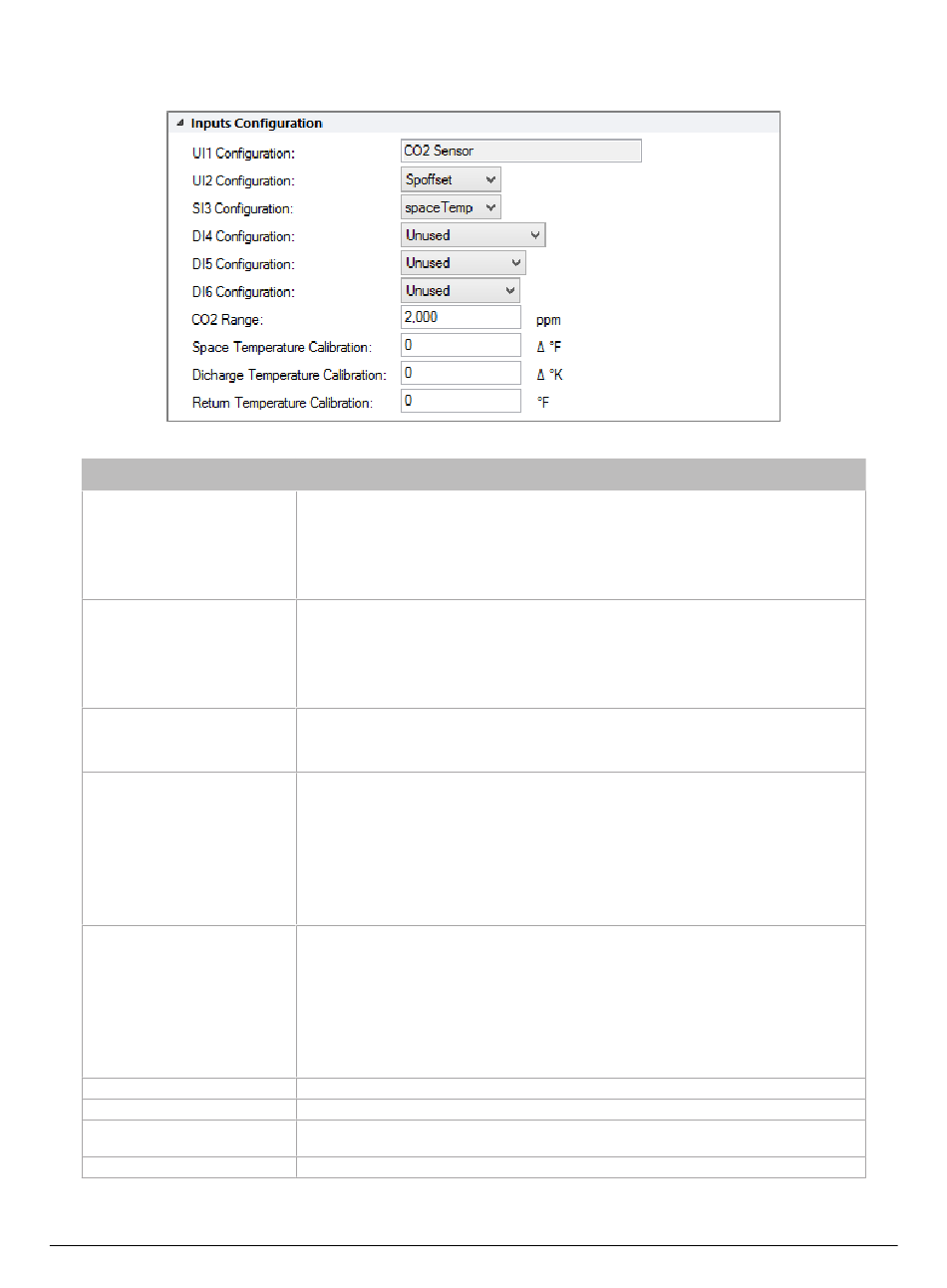

Figure 33: Inputs Configuration subsection
Parameter
UI2 Configuration
SI3 Configuration
DI4 Configuration
DI5 Configuration
DI6 Configuration
CO Range
2
Space Temperature Calibration
Discharge Temperature
Calibration
Return Temperature Calibration
Table 8: Inputs Configuration Table
UI1 is not configurable but is factory-assigned to CO2 sensing.
ECL-PTU-207 Preloaded Applications
Description
Unused – not used.
Discharge Temp –Discharge Temperature sensor.
Return Temp – Return air Temperature sensor.
Water Temp – Water Temperature sensor.
SpOffset – Setpoint offset of the EC-Sensor-SO.
Unused – not used.
Discharge Temp – Discharge Temperature sensor.
Return Temp – Return air Temperature sensor.
Water Temp – Water Temperature sensor.
SpaceTemp – Space Temperature sensor.
Unused – not used.
WindowContactNO – Normally open window contact. (Closed contact = Open window).
WindowContactNC – Normally closed window contact (Closed contact = Closed window).
Unused – not used.
AuxContactNO – Normally open auxiliary contact.
AuxContactNC – Normally closed auxiliary contact.
ChangOverHtg – Change-over input. (Closed contact = Heating mode).
ChangOverClg – Change-over input. (Closed contact = Cooling mode).
CondSensorNO – Normally open condensation sensor. (Closed contact = Alarm).
CondSensorNC – Normally closed condensation sensor. (Closed contact = Normal).
Unused – not used.
AuxContactNO – Normally open auxiliary contact.
AuxContactNC – Normally closed auxiliary contact.
ChangOverHtg – Change-over input. (Closed contact = Heating mode).
ChangOverClg – Change-over input. (Closed contact = Cooling mode).
OccSensorNO – Normally open occupancy sensor. (Closed contact = occupied).
OccSensorNC – Normally closed occupancy sensor. (Closed contact = unoccupied).
Set the CO upper limit for the sensor (0V=0 ppm and 10V=CO
2
Set the space temperature calibration offset.
Set the discharge temperature calibration offset.
Set the return temperature calibration offset.
Configuring the Preloaded Applications
range)
2
