Allure EC-Smart-Vue Screen-by-Screen Guide
UI2 - Input 2
Parameter Default
X
UI2
(EC2)
Table 11: Universal Input 2

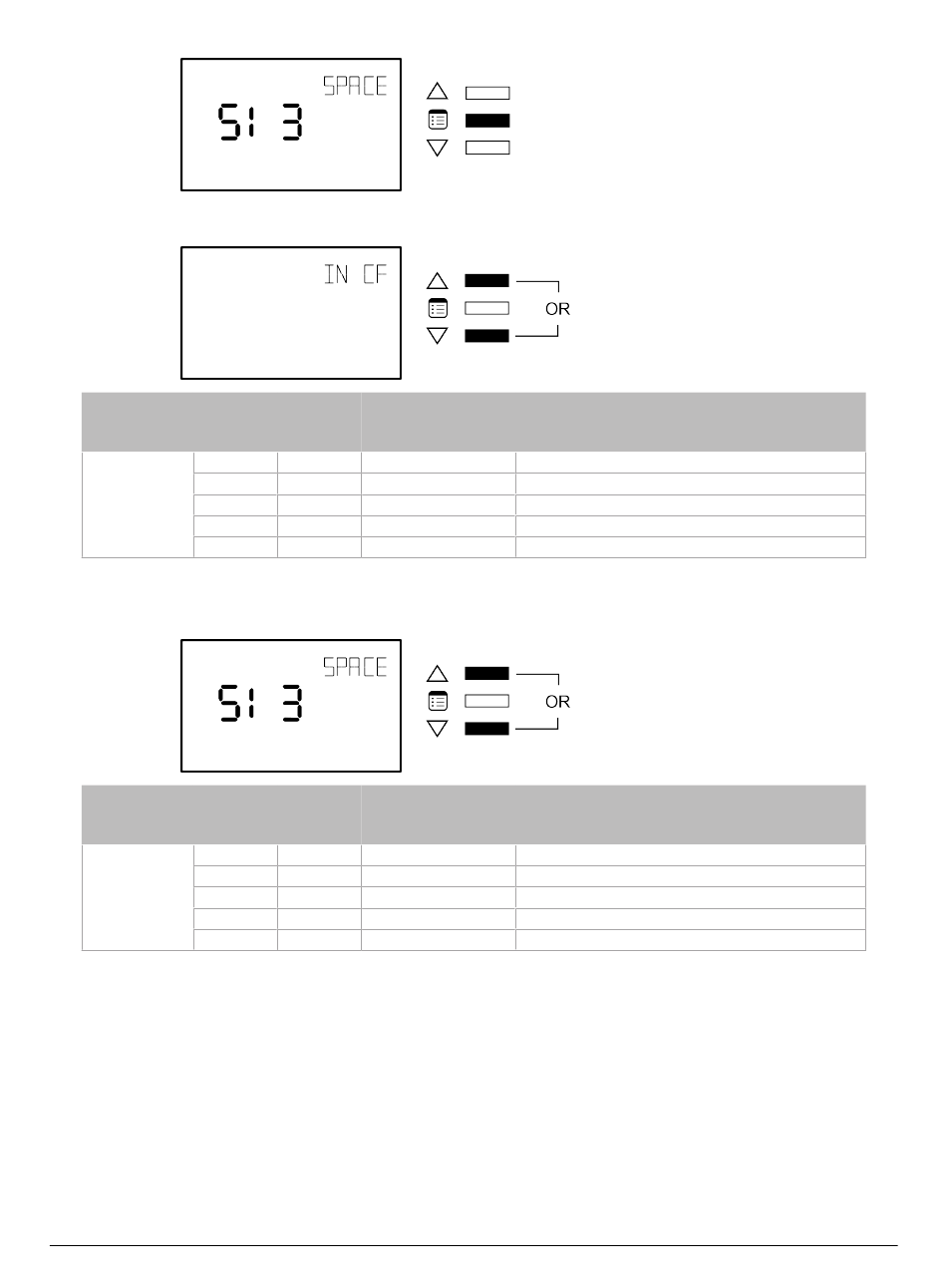

SI3 - Input 3
Parameter Default
X
SI3
(nviFP44)
Table 12: Sensor Input 3
76
Valid
Choices
0 SP OFFSET
1 DISCH TEMP
2 RETURN TEMP
3 WATER TEMP
4 UNUSED
Valid
Choices
0 SPACE TEMP
1 DISCH TEMP
2 RETURN TEMP
3 WATER TEMP
4 UNUSED
Description
Setpoint offset is connected to UI2
Discharge temperature sensor is connected to UI2.
Return air temperature sensor is connected to UI2.
Water Temperature sensor is connected to UI2.
UI2 is not used.
Description
Space temperature sensor is connected to SI3
Discharge temperature sensor is connected to SI3.
Return air temperature sensor is connected to SI3.
Water Temperature sensor is connected to SI3.
SI3 is not used.
ECL-PTU-207 Preloaded Applications
