4. As you rotate the lever, the power supply slides toward the right. Continue sliding the
power supply to the right as far as possible (see figure 69,

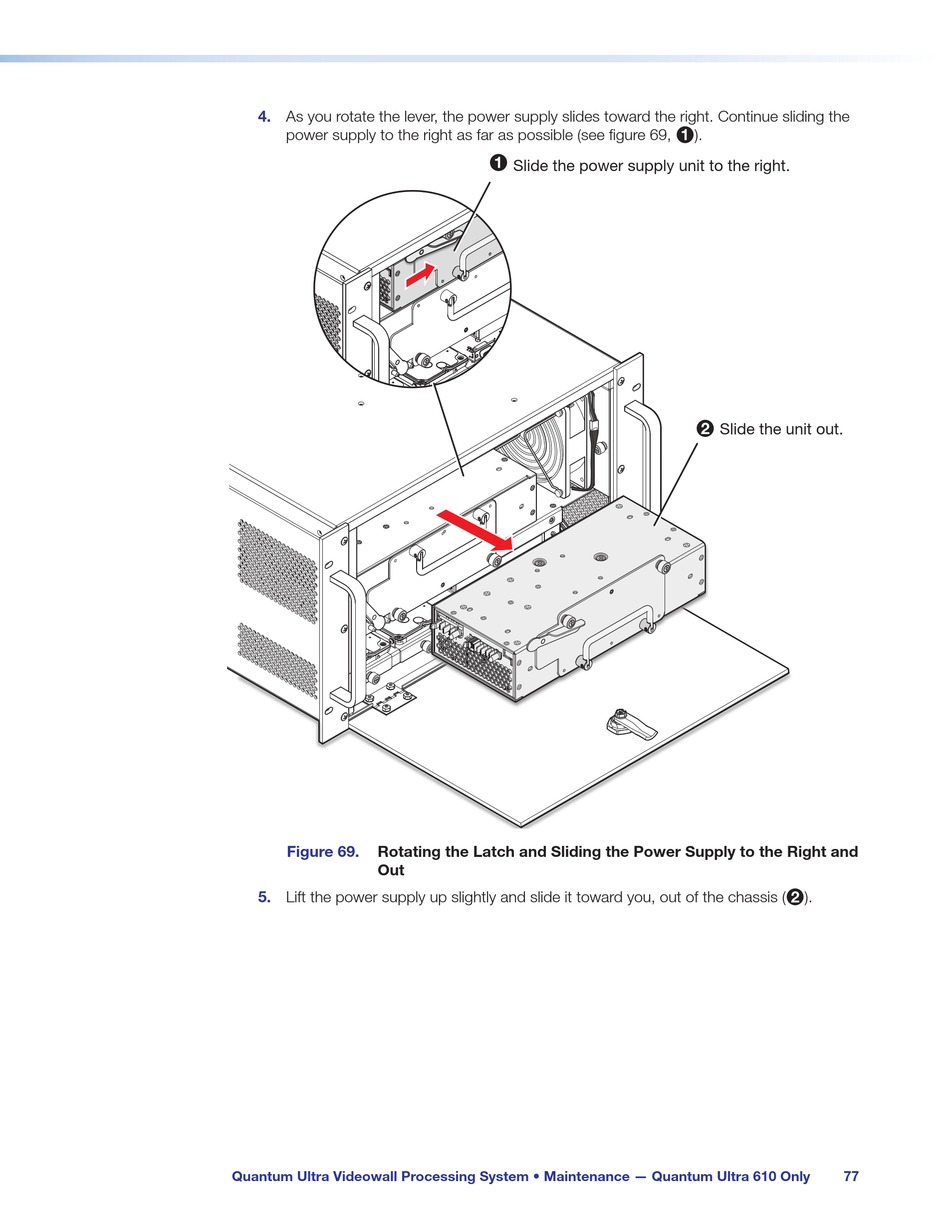

Figure 69. Rotating the Latch and Sliding the Power Supply to the Right and
Out
5. Lift the power supply up slightly and slide it toward you, out of the chassis (
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
1 1
Slide the power supply unit to the right.
).
1
Slide the unit out.
2 2
).
2
77
