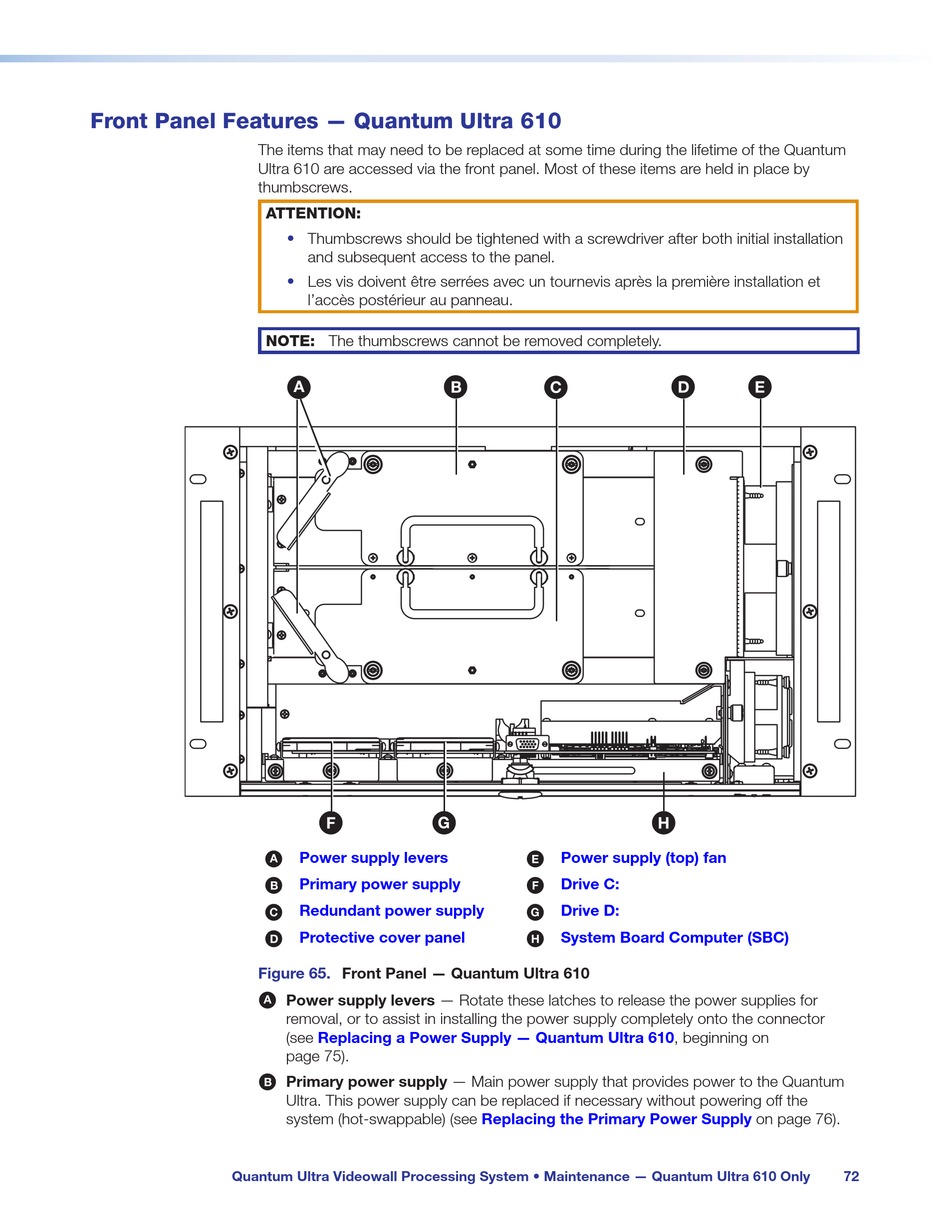

Front Panel Features — Quantum Ultra 610
The items that may need to be replaced at some time during the lifetime of the Quantum
Ultra 610 are accessed via the front panel. Most of these items are held in place by
thumbscrews.
ATTENTION:
NOTE: The thumbscrews cannot be removed completely.
A
B
C
D
Figure 65.
A
B
Quantum Ultra Videowall Processing System • Maintenance — Quantum Ultra 610 Only
• Thumbscrews should be tightened with a screwdriver after both initial installation
and subsequent access to the panel.
•
Les vis doivent être serrées avec un tournevis après la première installation et
l'accès postérieur au panneau.
B B
A A
F F G G
Power supply levers
Primary power supply
Redundant power supply
Protective cover panel
Front Panel — Quantum Ultra 610
Power supply levers — Rotate these latches to release the power supplies for
removal, or to assist in installing the power supply completely onto the connector
(see Replacing a Power Supply — Quantum Ultra
page 75).
Primary power supply — Main power supply that provides power to the Quantum
Ultra. This power supply can be replaced if necessary without powering off the
system (hot-swappable) (see
C C
H H
Power supply (top) fan
E
Drive C:
F
Drive D:
G
System Board Computer (SBC)
H
610, beginning on
Replacing the Primary Power Supply
D D E E
on page 76).
