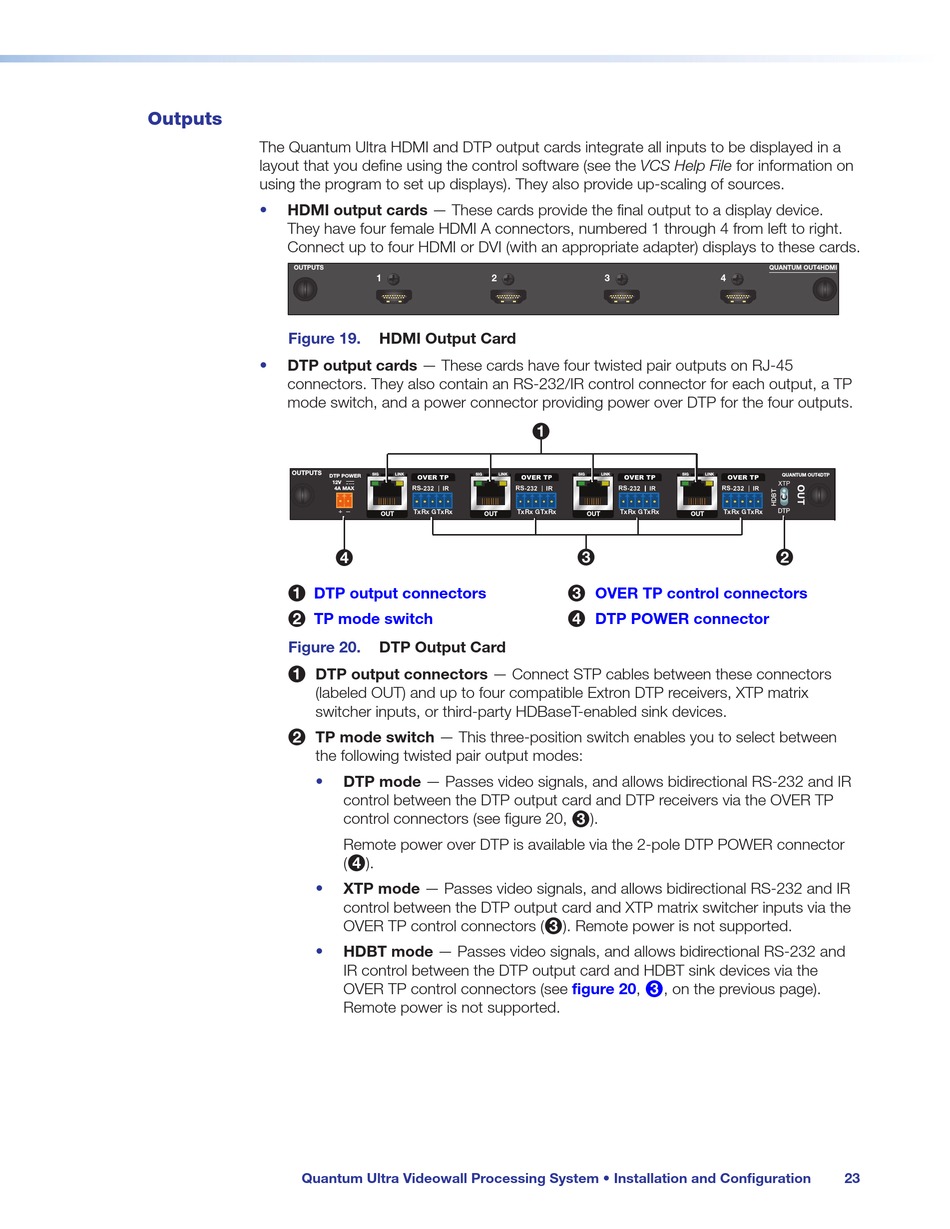

Outputs

The Quantum Ultra HDMI and DTP output cards integrate all inputs to be displayed in a
layout that you define using the control software (see the VCS Help File for information on
using the program to set up displays). They also provide up-scaling of sources.
HDMI output cards — These cards provide the final output to a display device.
•
They have four female HDMI A connectors, numbered 1 through 4 from left to right.
Connect up to four HDMI or DVI (with an appropriate adapter) displays to these cards.
OUTPUTS
Figure 19.
• DTP output cards — These cards have four twisted pair outputs on RJ-45
connectors. They also contain an RS-232/IR control connector for each output, a TP
mode switch, and a power connector providing power over DTP for the four outputs.
OUTPUTS
DTP output connectors
1
TP mode switch
2
Figure 20.
DTP output connectors — Connect STP cables between these connectors
1
(labeled OUT) and up to four compatible Extron DTP receivers, XTP matrix
switcher inputs, or third-party HDBaseT-enabled sink devices.
TP mode switch — This three-position switch enables you to select between
2
the following twisted pair output modes:
•
•
•
Quantum Ultra Videowall Processing System • Installation and Configuration
1
2
HDMI Output Card
SIG LINK SIG LINK
DTP POWER
12V
4A MAX
Tx Rx G Tx Rx
OUT OUT
4 4
DTP Output Card
DTP mode — Passes video signals, and allows bidirectional RS-232 and IR
control between the DTP output card and DTP receivers via the OVER TP
control connectors (see figure 20,
Remote power over DTP is available via the 2-pole DTP POWER connector
( ).
4
XTP mode — Passes video signals, and allows bidirectional RS-232 and IR
control between the DTP output card and XTP matrix switcher inputs via the
OVER TP control connectors (
HDBT mode — Passes video signals, and allows bidirectional RS-232 and
IR control between the DTP output card and HDBT sink devices via the
OVER TP control connectors (see
Remote power is not supported.
3
1 1
SIG LINK SIG
Tx Rx G Tx Rx Tx Rx G Tx Rx
OUT OUT
3 3
OVER TP control connectors
3
DTP POWER connector
4
).
3
). Remote power is not supported.
3
figure 20, , on the previous page).
3
QUANTUM OUT4HDMI
4
LINK QUANTUM OUT4DTP
DTP
Tx Rx G Tx Rx
2 2
